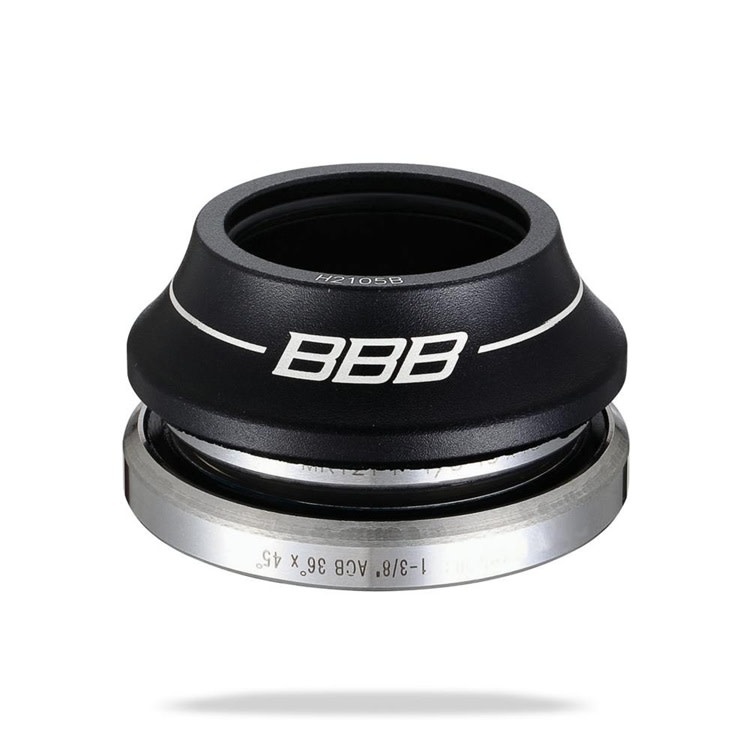

BBB INTEGRATED HEADSET 1 1/8 - 1 3/8 41.8MM BHP-456
The BBB Integrated Tapered BHP-456 Headset is a premium workshop-grade component engineered to restore ultra-smooth, precision steering control to your bicycle. Designed specifically for modern frames utilizing an integrated tapered headtube configuration, this headset drops directly into your frame for a completely clean, flush setup. Whether you are refreshing a high-end road racing machine, upgrading a nimble cross-country mountain bike, or overhauling your daily commuter, the BHP-456 guarantees a completely stable, slop-free cockpit layout.
At the core of this headset's exceptional durability are high-grade chromium-molybdenum (CrMo) steel cartridge bearings. These bearings feature premium seals designed to lock out harsh road spray, fine trail dust, and sweat, preventing the premature pitting and corrosion that leads to rough, notch-style indexing. The unit is highly user-friendly, featuring an open crown race design that allows for effortless, tool-free installation or removal over your fork steerer without needing a workshop slide hammer. Topped off with a sleek, 15mm black anodised aluminium cone spacer, the BHP-456 shields the upper assembly from the elements while maintaining a sleek, pro-tier frontend appearance.
Key Features
Premium Sealed CrMo Bearings: High-tensile steel cartridge bearings are robustly sealed against water and grinding road grime to ensure long-term, silk-smooth rotation.
Integrated Tapered Fitment: Designed to drop directly into compatible frames, providing maximum frontend stiffness and precise cornering tracking under heavy loads.
Open Crown Race Design: Engineered with a split crown race configuration to allow lightning-fast, scratch-free installation over the fork steerer without specialized tools.
Aluminium Cone Spacer: Supplied with a matching 15mm anodised alloy top cap cover to neatly shield the internal bearings from sweat and rain.
Widespread Serviceability: Compatible with official BBB BHP-946 replacement cartridge bearings, ensuring hassle-free maintenance down the track without replacing the entire unit.
Specifications
Model Number: BHP-456
Headset Type: Integrated / Tapered
Steerer Tube Compatibility: 1 1/8" Top to 1 3/8" Bottom (Tapered)
Upper Bearing Inner/Outer Diameter: 41.8mm / 45° x 45°
Lower Bearing Inner/Outer Diameter: 48.9mm / 36° x 45°
Bearing Material: Sealed Cartridge Chromium-Molybdenum (CrMo) Steel
Cone Spacer Height: 15mm
Cone Spacer Material: Anodised Aluminium Alloy
✅ Why This IS For You
Steering Feels Notchy or Gritty: Perfect if your bike's front end has developed annoying play, rattles over rough bitumen, or feels rough when turning the handlebars.
Own an Integrated 1 1/8" - 1 3/8" Frame: Ideal if you are overhauling a modern road, gravel, or cross-country frame that utilizes these exact micro-taper dimensions.
Do Your Own Home Mechanics: The split, open crown race makes this an absolute dream for home mechanics who do not own an expensive workshop crown race setting tool.
Ride in Harsh Australian Weather: Excellent for year-round commuters and local racers who need heavily sealed bearings to survive rain, road grit, and aggressive bike washes.
Want a Clean Showroom Aesthetic: The low-profile integrated drop-in design coupled with the matching black alloy spacer gives your cockpit a neat, factory-fresh look.
❌ Why This May NOT Be For You
Run a Straight 1 1/8" Fork: Built strictly for modern tapered fork steerer tubes; it will not secure a traditional straight-steerer fork without a specialized conversion race.
Frame Uses External or Semi-Integrated Cups: If your bike frame requires external cups (EC) or semi-integrated zero-stack cups (ZS) pressed into the headtube, this drop-in integrated unit will not fit.
Own a Standard 1.5" Mega-Taper Frame: Incompatible with heavy-duty enduro or downhill mountain bikes that utilize the larger, wider 1 1/8" to 1.5" (52mm lower bearing) headset standard.
BFC PRO TIP
When installing the BBB BHP-456 headset, never drop the bearings into a dry frame! Even though the cartridge bearings themselves are sealed, moisture can easily creep between the outer race of the bearing and the raw carbon or alloy seats of your frame's headtube, causing annoying creaking noises when you pedal hard out of the saddle. Apply a generous layer of high-quality waterproof marine grease directly onto the frame's internal bearing seats before dropping the cartridges in. This creates an airtight, waterproof moat that completely eliminates creaks, stops the bearings from seizing inside the frame over time, and makes future maintenance a total breeze!
