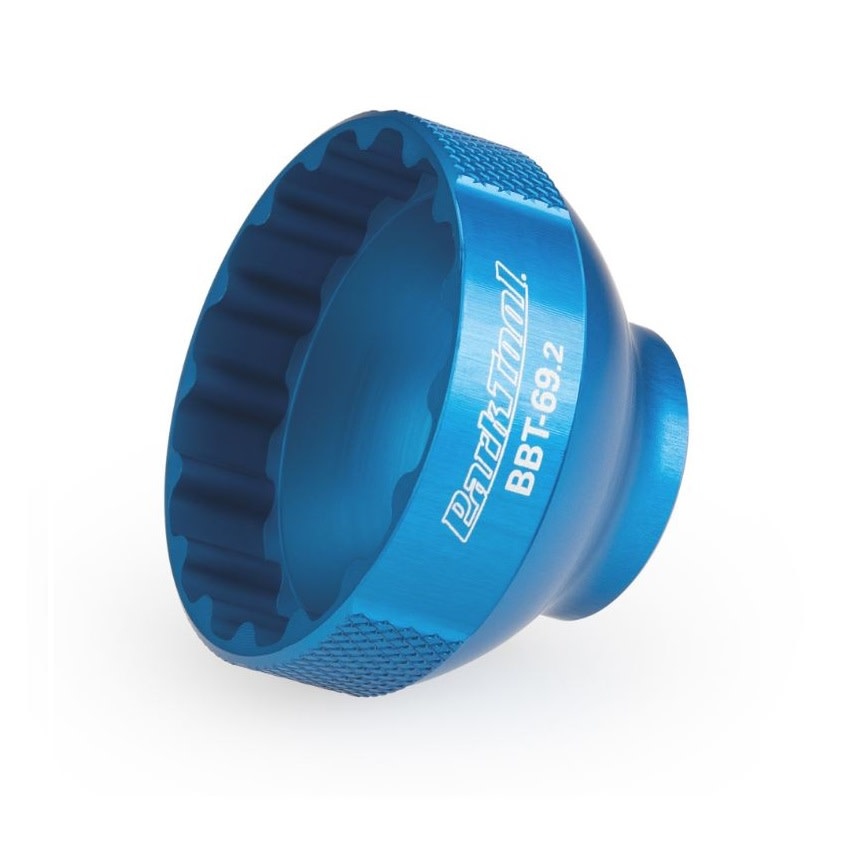

The BBT-69.2 is a precision, CNC-machined aluminium tool for 16-notch fittings with a 44–45 mm major diameter and a 42.7 mm minor diameter. That covers many Shimano outboard-bearing cups such as BB80, BB5700, XT BB70 and BB51, as well as threaded cups from Campagnolo, Chris King, FSA MegaExo, Hope, SRAM and Truvativ GXP, Race Face X-type, Surly, Wheels and Fulcrum, among others.
Unlike the steel BBT-19.2, this aluminium tool is also intended for 16-notch disc brake rotor lockrings, as well as 16-notch Bafang BBSH and BBS02 mid-drive motor lockrings. It is made in-house, anodised and laser-engraved, and uses a 3/8-inch drive so you can turn it with a ratchet or a torque wrench. The tooth profile is cut to sit cleanly on these high-performance parts.
✅ You want one aluminium tool for 44–45 mm 16-notch cups and rotor lockrings: The BBT-69.2 is made for both jobs.
✅ You service Shimano, SRAM GXP, Campagnolo or similar outboard cups: Those are the fittings this tool is cut for.
❌ You prefer a hardened steel tool and do not need to do rotor lockrings: The BBT-19.2 covers the same cup size in chromoly.
❌ Your cups are the smaller 39–40 mm 16-notch size: That fitting takes a tool such as the BBT-49.2.
Seat all 16 notches fully before you turn, and use a torque wrench on the 3/8-inch drive. The aluminium face is kind to finished cups and lockrings, so do not use an impact gun on it.
