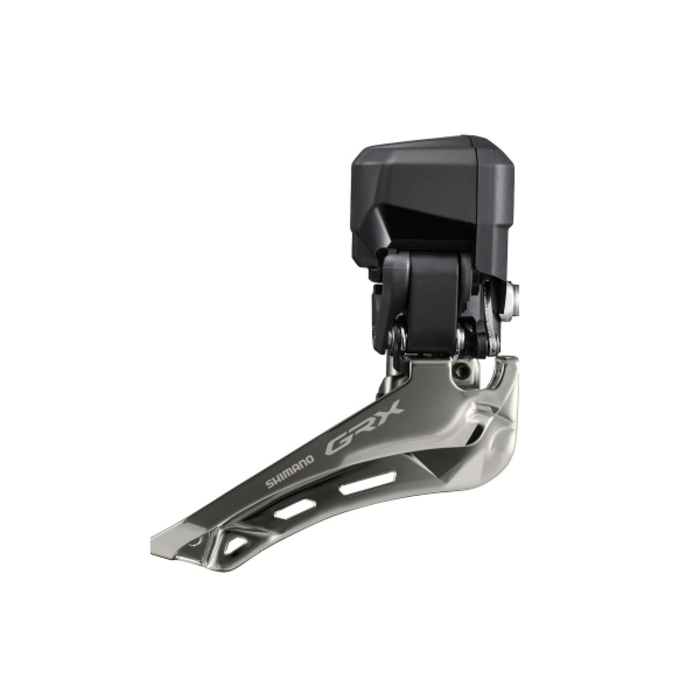

The Shimano GRX Di2 FD-RX825 represents the pinnacle of gravel-specific drivetrain technology, bringing lightning-fast electronic shifting to the most challenging terrain. Designed as the centerpiece of the 12-speed GRX Di2 system, this front derailleur is engineered to handle the mud, grit, and vibrations of gravel racing while providing the legendary reliability that Shimano’s digital integrated intelligence is known for.
The FD-RX825 is built with a +2.5mm outboard chainline compared to standard road derailleurs. This extra offset is critical for modern gravel riding, as it provides the necessary clearance for high-volume, wide tires (up to 700x50mm or more) and ensures consistent shifting performance even when your frame and drivetrain are covered in debris. With its compact, high-torque motor, the RX825 delivers instant, effortless gear changes under heavy pedaling loads, allowing you to maintain momentum on steep, technical climbs.
12-Speed Di2 Precision: Offers digital, wireless communication with the rest of the system, eliminating the friction and maintenance associated with traditional cables.
Gravel-Specific Chainline: The +2.5mm offset provides increased tire clearance, allowing you to run wider, more aggressive rubber without compromising shifting accuracy.
Synchronized Shifting: Compatible with Shimano’s Full and Semi-Synchro Shift modes, where the system automatically manages front shifts to maintain a consistent cadence and gear ratio.
High-Torque Actuation: Features a powerful internal motor that shifts the chain with authority, even when you are out of the saddle or grinding up a muddy incline.
Wide Gear Range Compatibility: Specifically optimized for the 48-31T GRX crankset, providing a massive 17-tooth jump that covers everything from high-speed descents to brutal mountain grades.
Robust Weather Sealing: Engineered to withstand high-pressure washing and the harshest environmental conditions, ensuring your shifting remains perfect from the first mile to the last.
| Feature | Specification |
| Series | GRX Di2 RX825 |
| Speeds | 2 x 12-Speed |
| Chainline | 47mm (+2.5mm vs Standard Road) |
| Chainstay Angle | 61 - 66° |
| Top Gear Teeth | 48T |
| Total Capacity | 17T |
| Mounting | Brazed-On (Adapter required for clamp-on frames) |
| Connectivity | E-TUBE Wireless / Wired |
The Competitive Gravel Racer: If every second counts, the instantaneous electronic shifting ensures you never drop a chain or lose rhythm during a critical move.
Adventure & Bikepacking: Perfect for riders who demand the widest possible tire clearance for loaded touring on varied, unpredictable surfaces.
Low-Maintenance Seekers: Di2 eliminates cable stretch and housing contamination, meaning once it is set up, it stays perfectly indexed for thousands of miles.
11-Speed Systems: This is a 12-speed specific component. It is not backwards compatible with 11-speed Di2 (RX815) batteries, shifters, or wiring.
Mechanical Purists: If you prefer the tactile feel of a cable-actuated system or are traveling to remote areas where battery charging is impossible, the mechanical GRX RX820 may be a more practical choice.
The FD-RX825 is incredibly powerful, which means the support bolt (the small grub screw that pushes against the frame) is more important than ever. Ensure this bolt is properly adjusted against the frame's backup plate; it provides the necessary leverage for the motor to move the chain under load without flexing the derailleur mount. When setting up your 12-speed system, use the E-TUBE Project App to customize your shift speeds and toggle between Synchro-Shift modes—it’s the easiest way to tailor your drivetrain's "personality" to your specific riding style!
