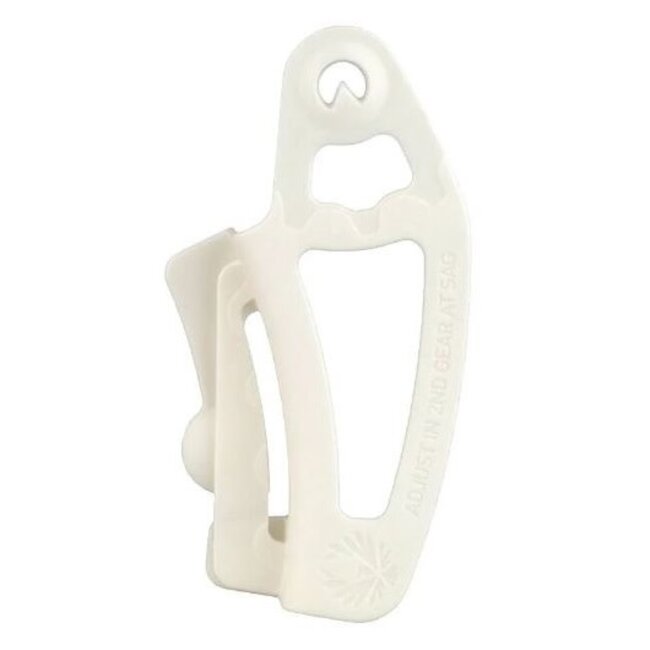

The Eagle V2 chain-gap, or B-gap, tool is SRAM's current gauge for setting the distance between the upper pulley and the cassette on Eagle mountain derailleurs. It is made for both 50T and 52T Eagle cassettes, which is the main reason to choose it over the earlier red Eagle gauge.
SRAM lists it for Eagle AXS XX1, X01 and GX, and for mechanical Eagle XX1, X01, GX, NX and SX rear derailleurs. Use it when you install or adjust those derailleurs so the upper pulley sits at the correct gap. It is not a road eTap AXS chain-gap tool, and it is not for T-Type Transmission derailleurs, which do not use a B-gap adjustment.
✅ You are setting up an Eagle or Eagle AXS derailleur: This is the current B-gap tool SRAM lists for those derailleurs.
✅ You run a 50T or 52T Eagle cassette: The V2 gauge is made for both cassette sizes.
❌ You need a road eTap AXS chain-gap tool: Road AXS uses a different gauge.
❌ You have a T-Type Transmission derailleur: Full Mount Transmission derailleurs do not use a B-gap adjustment.
Use this V2 gauge, not the earlier red Eagle tool, when the cassette is a 52T. Seat the tool as SRAM's Eagle chain-gap method shows, then lock the B-knuckle so the upper pulley sits at the correct gap before you test the shifts.
