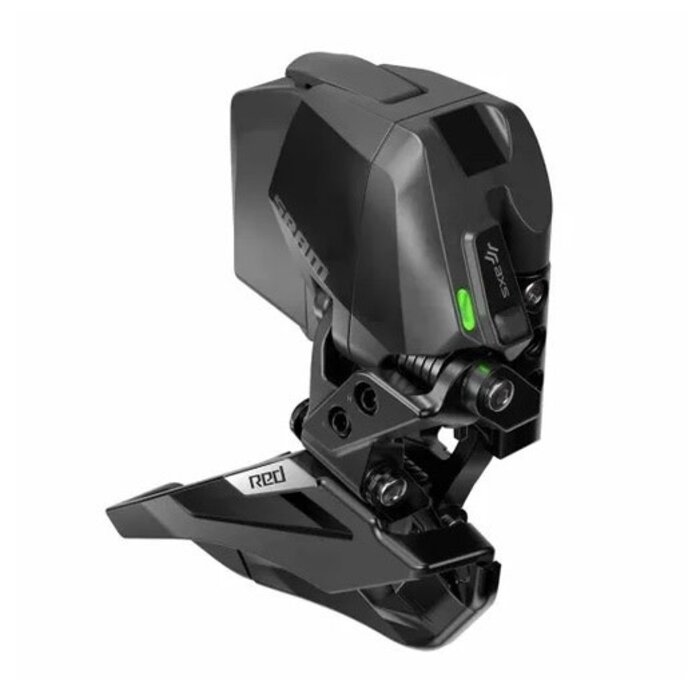

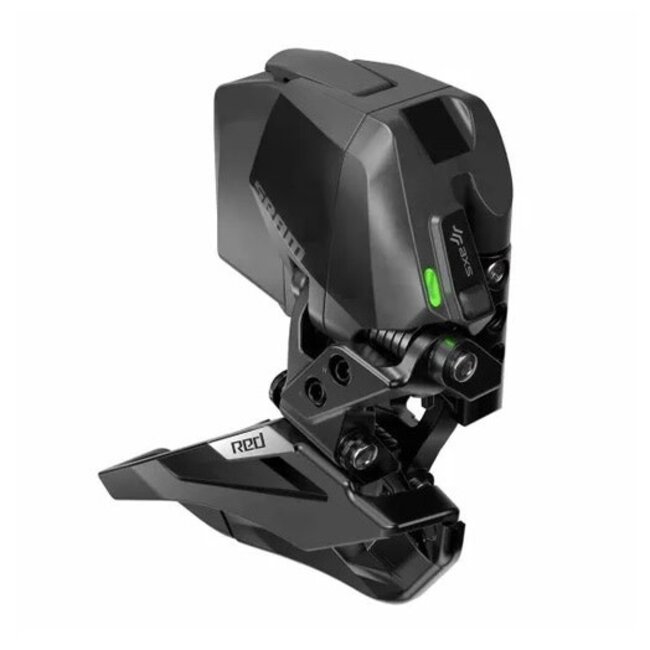

SRAM RED E1 FRONT DERAILLEUR

The SRAM RED E1 AXS Front Derailleur sets a benchmarking standard for dual-chainring wireless shifting performance. Engineered explicitly for competitive road racing, criteriums, and high-performance endurance builds, this top-tier component focuses heavily on execution speed and silent drivetrain operation. The core highlight of the E1 generation is its highly refined cage architecture. Utilizing SRAM’s proven Yaw technology, the derailleur cage actively rotates to maintain a perfectly parallel angle with the chain as it tracks across the rear cassette. Combined with intelligent auto-trim electronics, it eliminates the need for manual micro-adjustments at the shifter, guaranteeing a rasp-free ride even under high cross-chain angling.

SRAM has drastically simplified the installation architecture for the RED E1. Each unit arrives alongside an innovative plastic setup tool that snaps directly onto the derailleur body, aligning the cage height and horizontal angle perfectly with your outer chainring before you even tighten the mounting bolt. Optimised to sync seamlessly with SRAM's signature X-Range chainring configurations—spanning standard 46/33T up to pro-tier 56/43T profiles—the internal motor logic delivers immediate, high-torque shifting power to smoothly guide the chain over large tooth differentials under heavy pedaling loads. Operating entirely on the modular eTap AXS wireless ecosystem, it cleans up your frame aesthetics while utilizing the AXS smartphone app to track battery state, assign custom buttons, and update firmware over the air.

Key Features

• Wireless AXS Ecosystem: Runs on SRAM's ultra-reliable, secure proprietary wireless protocol to eliminate shift cables and simplify multi-frame sharing.

• Yaw Cage Performance: The derailleur cage pivots on a non-parallel arc to track the chain line seamlessly, removing the risk of front chain rub.

• Automatic Electronic Trim: Constantly micro-adjusts its lateral position based on your rear cassette selection to maintain smooth, silent running.

• Precision Setup Alignment Tool: Includes a dedicated red alignment tool that guarantees perfect vertical spacing and alignment during initial workshop installation.

• Optimised X-Range Shaping: The cage face is specifically profiled to accelerate transitions when jumping between small and large chainring steps.

• Broad Component Compatibility: Works flawlessly alongside a large spread of 2x12 speed setups, from compact 46/33T chainrings to massive 56/43T aero rings.

Specifications

• Brand: SRAM

• Model ID: FD-RED-E-E1

• Speed: 2x12 Speed

• Shifting Action: Wireless Electronic (AXS Protocol)

• Mounting Type: Braze-On (Clamp adapters available separately)

• Chainline: 45.0mm

• Chainstay Angle: 61° to 66°

• Cage Technology: Road-Yaw

• Chain Compatibility: SRAM Road Flattop 12-Speed (D1 or E1)

• Weight: Approx. 150g (Without eTap battery)

✅ Why This IS For You

• Elite Performance Road Racers: Ideal if you cannot afford delayed gear changes or chain drops when initiating an out-of-the-saddle sprint during a local crit.

• Drivetrain Perfectionists: Perfect if you are driven mad by the dry scraping sound of a chain rubbing against the metal derailleur cage when using extreme gears.

• DIY Bike Mechanics: The inclusion of the specialized alignment tool takes all the frustrating trial-and-error out of setting up front mech heights.

• SRAM AXS System Owners: Slides seamlessly into any existing SRAM 12-speed road drivetrain, acting as an easy upgrade path for Force or Rival AXS bikes.

• Clean Cockpit Fans: Completely wireless execution means you can build up your modern aero road bike frame without wrestling stiffness-inducing internal routing cables.

❌ Why This May NOT Be For You

• Dedicated 1x Drivetrain Loyalty: If you prefer the simplicity, weight savings, and chain retention of a single chainring gravel or aero setup, this 2x component is entirely redundant.

• Budget-Minded System Builders: Sitting at the absolute pinnacle of SRAM's road line, it requires a significant financial investment compared to the highly capable Force AXS alternative.

• Third-Party Chain Users: The cage spacing is highly optimized around the unique profile of a SRAM Flattop chain; using traditional, non-flattop chains can compromise shifting accuracy.

BFC Pro Tip

When installing the RED E1 front derailleur on a carbon frame, do not skip fitting the included curved metal support wedges! SRAM packs three distinct sizes in the box; choose the one that matches the curvature of your frame's seat tube, slide it into place behind the derailleur body, and tighten its set screw until it rests firmly against the frame. This rear bracing pad stops the derailleur from flexing outward when the high-torque internal motor forces a shift onto the big ring, transforming an average gear change into an instantaneous, crisp swap!
