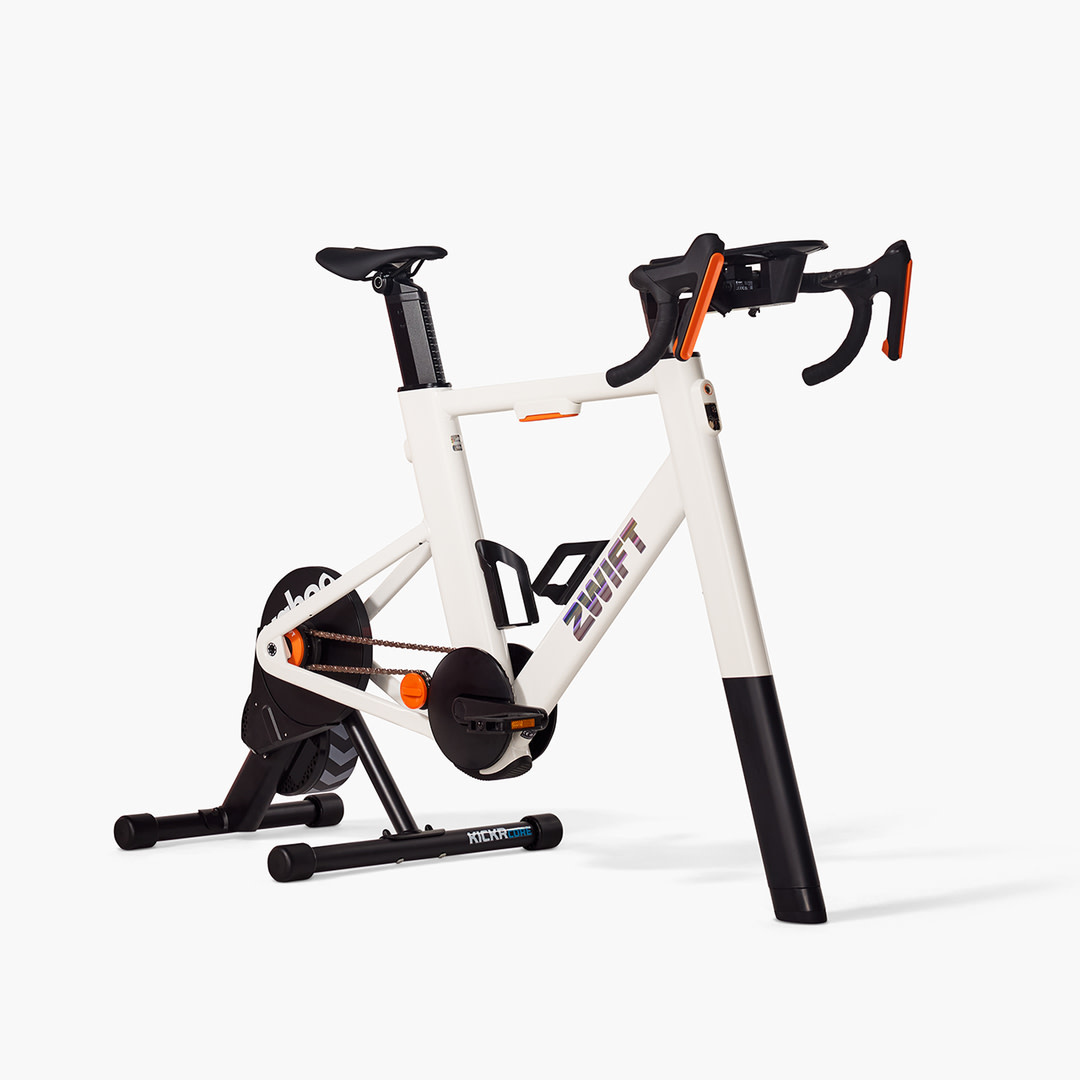

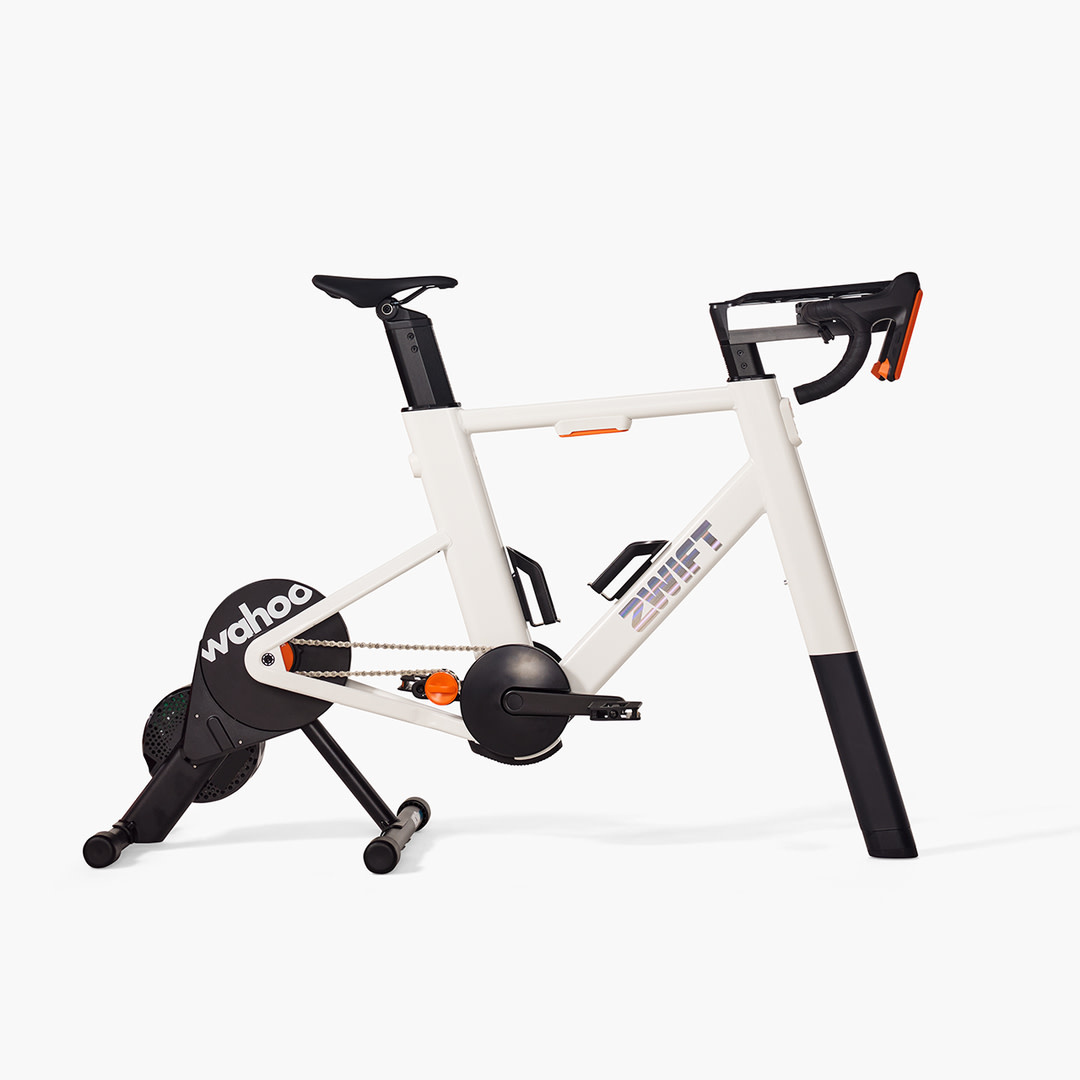

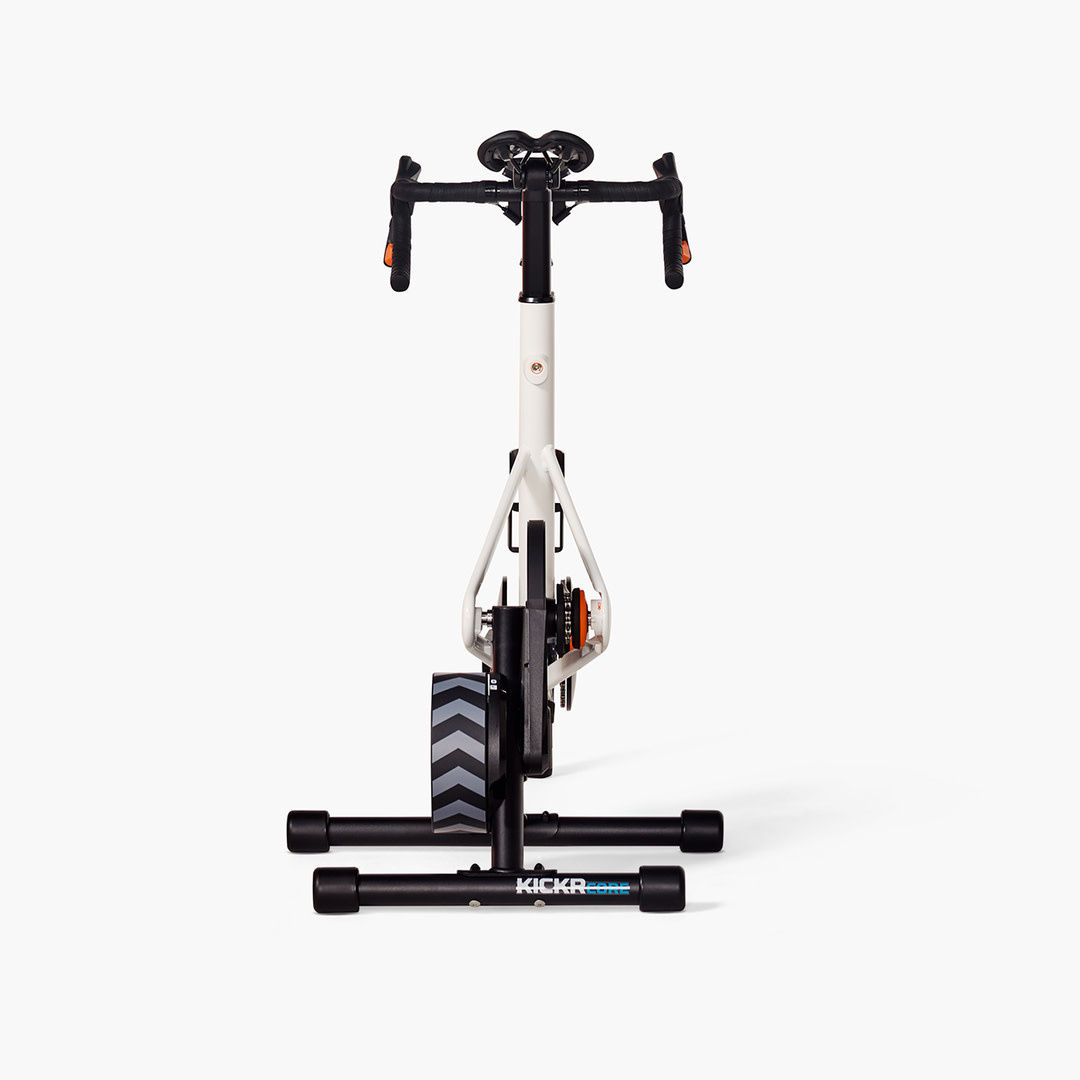

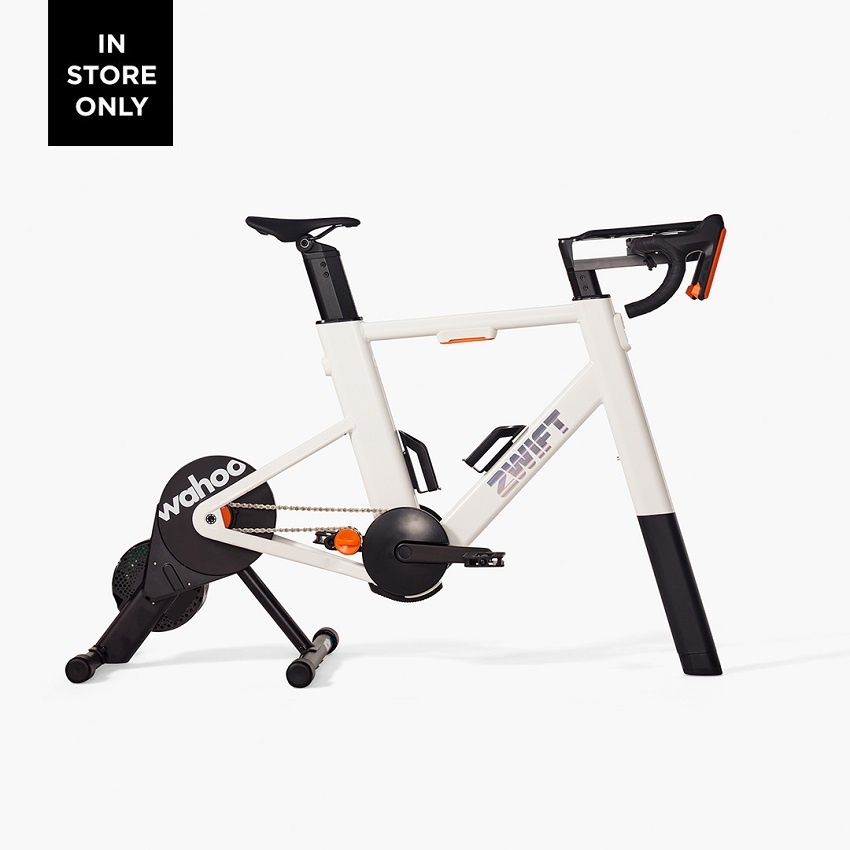

ZWIFT RIDE + WAHOO KICKR CORE BUNDLE

Note: Zwift Ride with KICKR CORE is not eligible for the purchase of a discounted 1-year Zwift Membership.

- FEATURES -

All-in-one Fitness Setup
With all the hardware you need to start Zwifting, Zwift Ride with KICKR CORE is a complete indoor cycling setup to seamlessly ride in the worlds of Zwift.

Always Ready
Ready whenever you are, so you can jump on at a moment’s notice. Plus, it’s easily adjustable to fit a wide range of riders— from 5’ to 6' 6".

Real Feel
In-game gradient changes automatically adjust the KICKR CORE’s resistance, so you’ll sweat it out on epic climbs and fly down descents just like you’re out on the road.

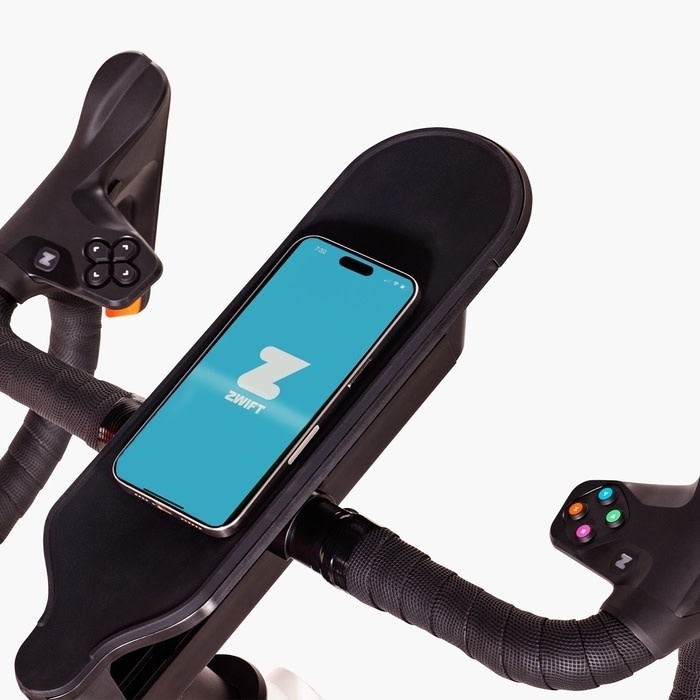

Full Control
Control all of Zwift without ever taking your hands off the bars. Navigate with ease to queue your next ride or workout, shift through gears, use PowerUps, give a Ride On, and more.

Quiet & Compact
Zwift Ride offers a sleek, space-saving setup that’s impressively quiet. It’s smaller than a traditional bike and trainer, but still fits most riders.

- INCLUDES -

Note. Supplied as a bundle (3 separate cartons)

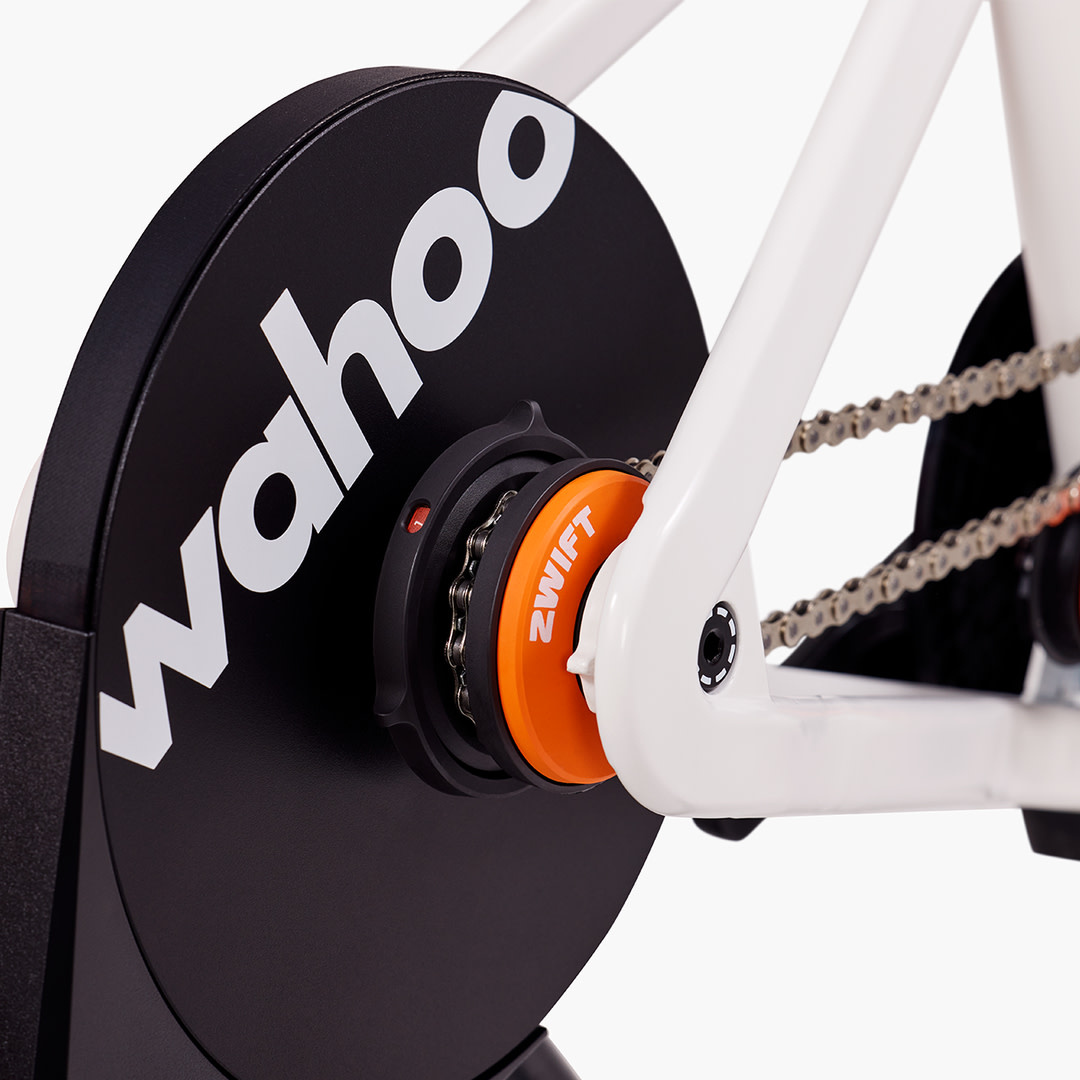

1. WAHOO KICKR CORE - Smart trainer with Zwift Cog
2. ZWIFT RIDE SMART FRAME

   • Frame
   • Handlebar stem
   • Thru Axle
   • Frame Key
   • Phone Tray Mat
   • Left & Right Pedals
   • Charging Cable for controllers
   • Cable Tidies



3. ZWIFT Ride Handlebar + Controllers

- TECH SPECS -

Rider Fit Specs

• Rider Fit Range: 152 - 198 cm
• Saddle Height Min-Max: 59.9 cm-86.5cm (center bottom bracket to top of saddle)
• Stepover Height: 76.4 cm
• Max Rider Weight: 120 kg
• Crank Length: 170mm

Product Dimensions and Frame Specs

• Product Dimensions: 136 cm L x 58 cm W
• Product Weight: 35.4 kg
• Drivetrain: Chain
• Pedals: Flat Included (compatible with standard road and mountain pedals)
• Saddle: 160mm W x 245mm L

Additional Handlebar Specs

• Handlebar Height Min-Max: 86.3 - 102.4 cm
• Handlebar Width: 42 cm (center to center)
• Integrated rechargeable controllers with 20 hrs. per charge
• Handlebar Controller Power: Built-in rechargeable lithium-ion battery (1050 mAH)
• Handlebar Controller Power requirements: USB-A, 5v, 1A

Performance and Data

• Power Accuracy: +/- 2%
• Maximum Power Output: 1800W
• Maximum Simulated Grade: 16%
• Flywheel Weight: 5.4 kg
• Resistance Type: Electromagnetic

Connectivity

• LED indicator lights confirm the trainer and handlebars are powered, connected, and transmitting via Bluetooth.
• Speed, distance, cadence, and power are wirelessly transmitted.
• In-game shifting, steering and UI control via handlebars are wirelessly transmitted.
• Apple TV users are required to pair through Zwift Companion app as a bridge to address the limited number of Bluetooth connections available
