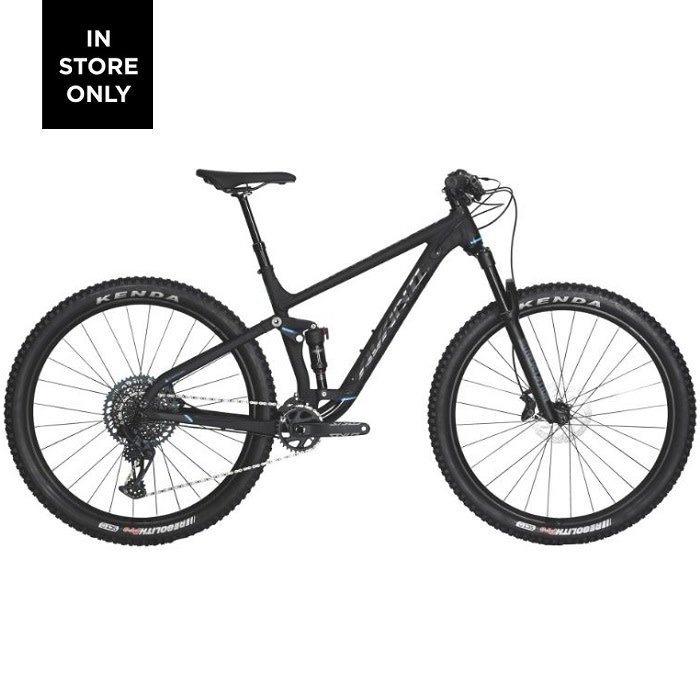

The Hammer S line of 29er, 130mm trail bikes, are engineered in Germany to be super-light, but tough enough to handle everything you throw at them. With a smart geometry-adjusting headset, you can swap in your 27.5+ wheels and keep the same geometry, for even burlier ride days. All bikes in the range feature Rockshox front and rear suspension, Syncros dropper posts, Shimano hydro brakes and SRAM's excellent Eagle 12 speed drive trains
Â
KEY FEATURES OF THE HAMMER S2 MOUNTAIN BIKE
- German-engineered light alloy 130mm travel 29er frame with internal cables and 27.5+ compatibility
- Rockshox Revelation RC Boost fork with thru axle
- SRAM GX Eagle 12 speed components for bullet proof shifting
- Shimano M520/501 hydraulic brakes, 180mm rotors
- Syncros superlight and bombproof wheels and internally routed dropper post
| Frame |
AL-6061 Ultralight Butted tubing, 130mm travel, cartridge bearing pivots, 1.5" tapered headtube, PF92 BB, 12 x 148m |
 |
| Fork |
Rockshox Revelation RC Debon Air, 130mm, air spring, 1.5" taper, rebound/compression adjust, lock-out, Boost 110 15mm axle |
|
| Rear Shock |
Rockshox Delux Select+ RT Debon Air, rebound adjust |
|
| Rear Derailleur |
SRAM GX Eagle |
|
| Shifters |
SRAM GX Eagle, 12 speed |
|
| Crankset |
SRAM Stylo, 7K Eagle,DUB, 32T |
|
| Brakes |
Shimano M520 hydraulic, 180mm rotors |
|
| Brake Levers |
Shimano M501 hydraulic |
|
| Wheelset / Rims |
Syncros Revelstoke 2.5 |
|
| Hubs |
Front: Alloy 110x15mm, 28H, Rear: Alloy, XD Driver 148x12mm, 28H |
|
| Spokes |
Stainless Steel |
|
| Cassette |
SRAM PG-1275 Cassette, 10-50T, 12 speed |
|
| Handlebar |
Syncros Hixon 2.0 31.8mm, with 12mm rise, 9 deg sweep |
|
| Handlebar Stem |
Alloy 31.8, 7 deg rise |
|
| Headset |
Integrated Threadless 1-1/8th-1.5" (with extra lower geometry adjust lower cup for 27.5+" wheels) |
|
| Grips |
Syncros Pro Lock-on |
|
| Tyres |
Kenda Regolith Pro, 29 x 2.4" Tubeless Ready, 120tpi |
|
| Saddle |
Syncros ER2.5 |
|
| Seat Post |
Syncros Duncan Dropper 31.6mm with internal cable routing |
|
| Bottom Bracket |
SRAM DUB Pressfit |
|
| Chain |
SRAM GX Eagle |
|
| EXTRAS |
Prime Aero CH -LD-MINI chain guide |
