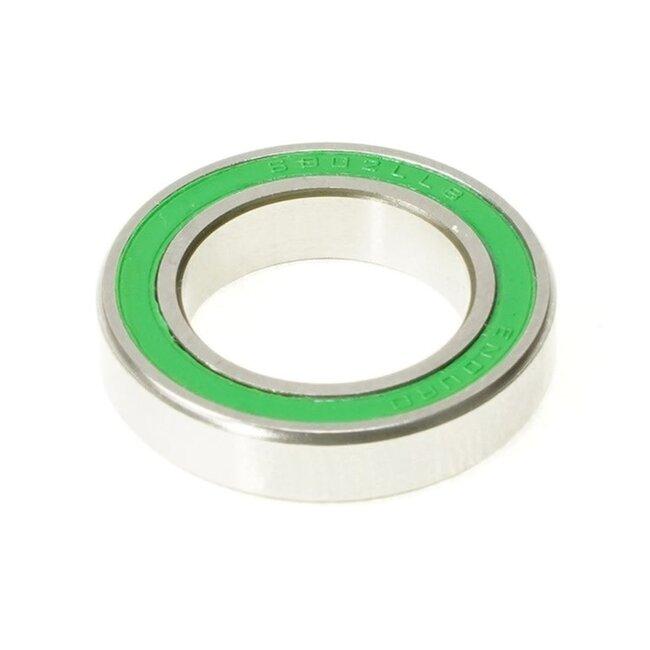

ENDURO S6802 C3 STAINLESS STEEL BEARING 15 X 24 X 5
The Enduro S6802 C3 Stainless Steel Bearing is engineered specifically to tackle the destructive elements that standard steel bearings cannot withstand. When it comes to bicycle longevity, water ingress, heavy cleaning routines, and corrosive sweat are the primary enemies of smooth rotation.This high-grade radial bearing addresses those problems head-on by utilizing top-tier 440C stainless steel for both the internal balls and the structural races. Not all stainless steel is manufactured equally; Enduro specifically selects 440C because it offers the highest carbon content, hardness, and overall wear resistance of all standard 440-series alloys, ensuring excellent longevity and mechanical performance.
To maximize its resistance to the elements, the S6802 features dual-lip LLB-type rubber seals that ride within a precision-engineered micro-groove. This clever layout creates a full labyrinth barrier that effectively locks out trail dirt, road grime, and water while sealing in the high-performance lubricant.Inside, the bearing is loaded with a 90% fill rate of Mobil XHP 222 high-pressure, waterproof grease, preventing metal-on-metal friction even under heavy loads.Designed with an internal C3 clearance rating, this bearing provides slightly more internal room to handle potential thermal expansion or slight misalignment under heavy pedalling forces. It is the ultimate choice for upgrading front or rear hubs, square-taper bottom brackets, and premium pedals that face regular exposure to unpredictable weather.
Key Features
440C Stainless Steel Build: Features premium 440C stainless steel alloy balls and races to provide ultimate corrosion resistance against water, mud, and acidic sweat.
Dual-Lip LLB Seals: Equipped with high-efficiency, dual-lip labyrinth seals that form a tight protective barrier against external contaminants without adding excess drag.
Mobil XHP 222 Grease Fill: Packed with a 90% fill rate of premium, marine-grade waterproof grease to ensure continuous internal lubrication and dampening.
C3 Internal Clearance: Engineered with a C3 clearance specification to accommodate high-stress loads, thermal expansion, or minor installation misalignments safely.
Deep Groove Architecture: Designed with the deepest possible groove tracks to accommodate larger Grade 10 balls, increasing structural stability and durability.
Specifications
Brand: Enduro Bearings
Model Code: S6802 LLB (C3)
Material Type: 440C High-Carbon Stainless Steel (Balls & Races)
Inner Diameter (ID): 15mm
Outer Diameter (OD): 24mm
Width/Thickness: 5mm
Bearing Type: Radial Ball Bearing
Seal Type: LLB Dual-Lip Labyrinth Rubber Seal
Grease: Mobil XHP 222 High-Pressure Waterproof Grease
