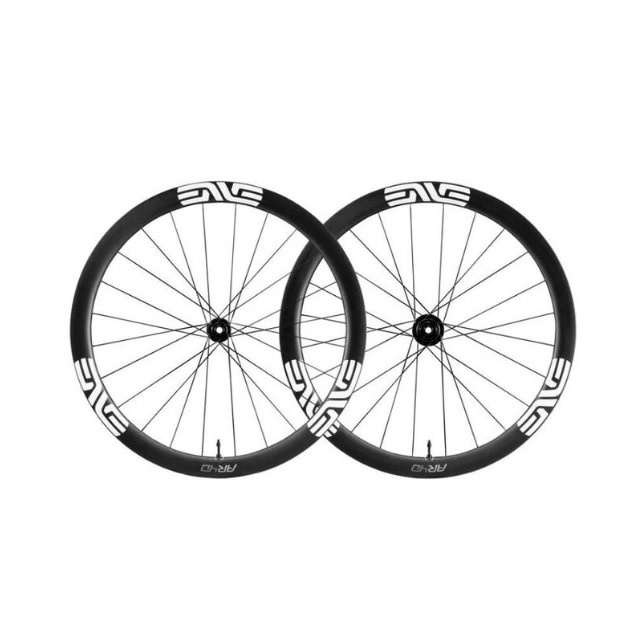

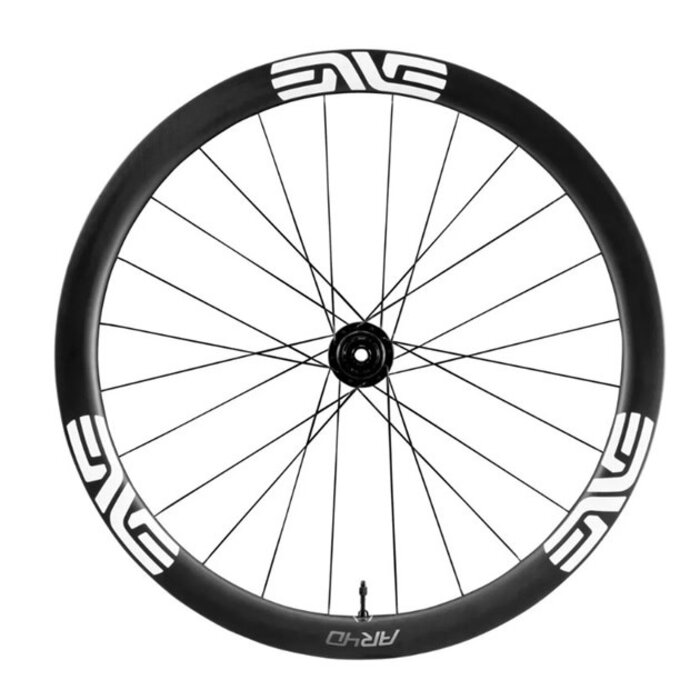

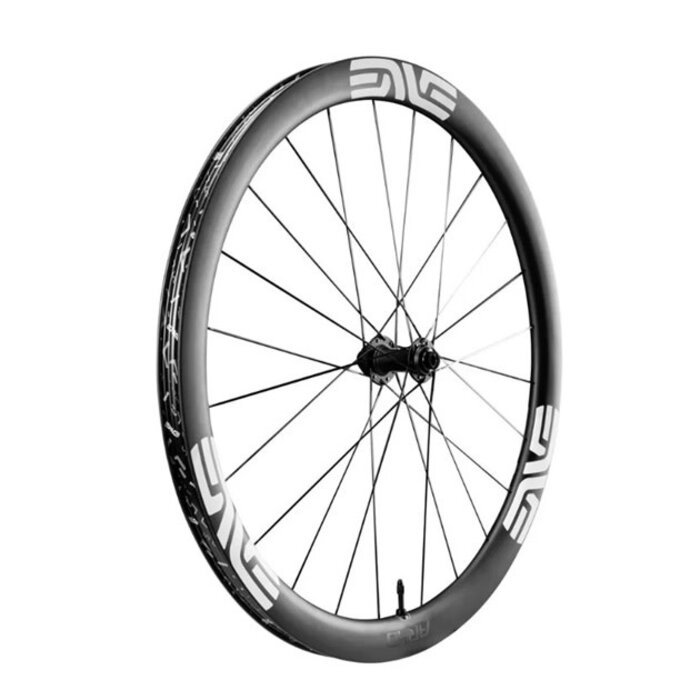

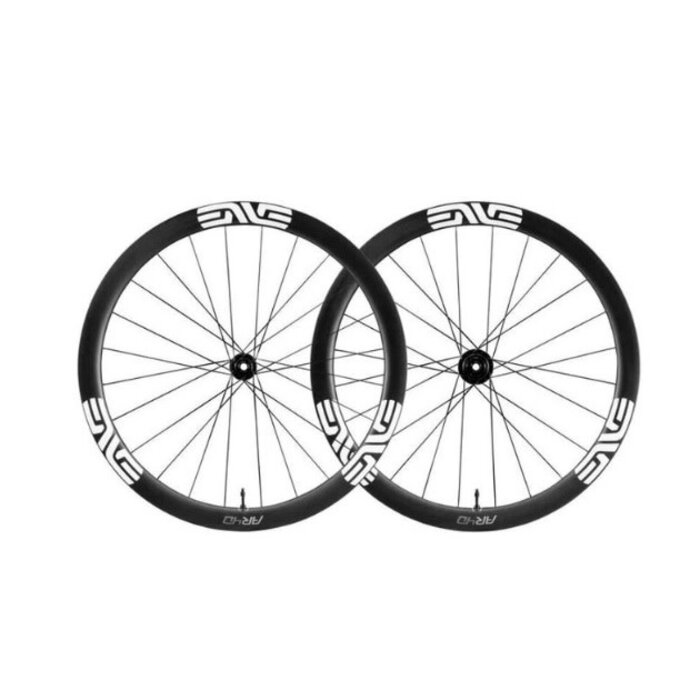

ENVE AR40 WHEELSET HG

The ENVE AR40 Foundation wheelset delivers the perfect balance of aerodynamics, stability, and rugged durability for modern road and all-road riding. Part of ENVE’s accessible Foundation series, this wheelset brings elite-tier carbon engineering to everyday racers and endurance riders who refuse to be confined to a single surface. By combining an aerodynamically optimized 40mm rim profile with a generous 25mm internal rim width, the AR40 reduces rolling resistance and provides exceptional stability when handling unpredictable crosswinds.

Built around ENVE’s high-performance Innerdrive hub system with an oversized 42mm ratchet, these wheels offer instant power engagement and automatic preload adjustments to maximize bearing life.Engineered specifically for tubeless setups, the straight-sidewall hookless rims utilize a Wide Hookless Bead to dissipate heavy impact energy.This design drastically reduces the chance of pinch flats when tackling potholes or loose gravel.With robust Sapim CX-Ray J-bend spokes and brass nipples, the AR40 ensures straightforward serviceability alongside its race-ready performance.

Key Features

• 40mm Aerodynamic Rim Depth: Perfectly optimized to cut through the wind and maintain flat-out speed without compromising stability in harsh crosswinds.

  Elite Racing Cycles

• 25mm Internal Rim Width: A wide, modern profile engineered to fully support high-volume tyres, allowing lower pressures for maximum grip and comfort.

  Elite Racing Cycles

• Wide Hookless Bead Technology: Features a blunt leading edge that absorbs severe impacts, significantly reducing the risk of pinch flatting your tubeless tyres.

  Slowtwitch

• ENVE Innerdrive Foundation Hubs: Equipped with an oversized 42mm ratchet drive system for instantaneous power transfer and prolonged steel bearing life.

  Slowtwitch

• Patented Molded Spoke Holes: Carbon fibers are molded continuously around the spoke holes rather than drilled, preventing structural weakness and keeping wheels truer for longer.

  Slowtwitch

• Shimano HG Freehub Compatible: Seamlessly fits standard Shimano and SRAM 11-speed road cassettes, making it an incredibly versatile drivetrain upgrade.

Specifications

• Wheel Size: 700c

  Elite Racing Cycles

• Rim Depth: 40mm (Front & Rear)

  Elite Racing Cycles

• Internal Rim Width: 25mm

  Elite Racing Cycles

• External Rim Width: 32mm

• Wheelset Weight: 1515g (Average weight including tubeless tape and valves)

  Bike Zone Fitzroy

• Rim Weight: 425g per rim

  Slowtwitch

• Hub Type: ENVE Innerdrive Foundation (Centerlock disc brake, 12x100mm Front / 12x142mm Rear)

  ENVE Composites

• Spokes: Sapim CX-Ray J-Bend (24 Hole Front & Rear)

  Slowtwitch

• Nipples: Alpina Nylock Brass

  Bike Zone Fitzroy

• Tyre Compatibility: Tubeless Only (Straight-sidewall/Hookless compatible)

  Elite Racing Cycles

• Recommended Tyre Size: 27mm to 50mm (Aero-optimized for 27mm–30mm)

• Maximum Tyre Pressure (for 27mm tyre): 80 psi (5.5 bar)

  Bike Zone Fitzroy

Choice Confirmation

Why This IS For You

• All-Road Versatility: You want a single, high-performing wheelset that transitions effortlessly from fast weekend club crits to rough gravel fire roads.

• Plush Ride Quality: You love running lower tyre pressures to smooth out chattery roads and technical gravel routes without worrying about tyre squirm.

• Premium Tech, Better Price: You want elite ENVE aerodynamics, carbon strength, and engineering without paying the top-tier premium price.

• Puncture Protection: You run tubeless and want a rim shape specifically engineered to eliminate pinch flats over rough terrain and sudden potholes.

• Easy Maintenance: You appreciate standard J-bend spokes and external brass nipples that any local bike shop can quickly service or true.

Why This May NOT Be For You

• Strictly Traditional Tyres: You prefer running standard inner tubes and non-tubeless tyres; these rims are strictly hookless and require tubeless-approved tyres.

• Weight Weenie Pure Climbing: You are looking for a featherweight, dedicated alpine climbing wheel; while light at 1515g, pure climbing wheels trade aero depth for lower weight.

• Narrow Frame Clearance: Your frame cannot clear tyres wider than 25mm; this rim profile requires a minimum tyre width of 27mm.

BFC Pro Tip

Before mounting your new tyres, always double-check ENVE's official Tyre Compatibility Page. Because the AR40 utilizes a straight-sidewall (hookless) rim design, the tyre bead needs to be incredibly precise to seat safely. Tyres like the Pirelli P Zero race TLR are perfect, but the older non-tubeless  is an absolute no-go. For the ultimate sweet spot in speed, comfort, and aerodynamics on modern Australian roads, mount a set of 28mm or 30mm tubeless tyres and drop your pressure down to around 55-65 psi depending on your weight!
