FUNN RIDGE CRANKSET
FUNN
FUNN RIDGE CRANKSET

FUNN RIDGE CRANKSET

$209.95 Incl. tax
Out of stock

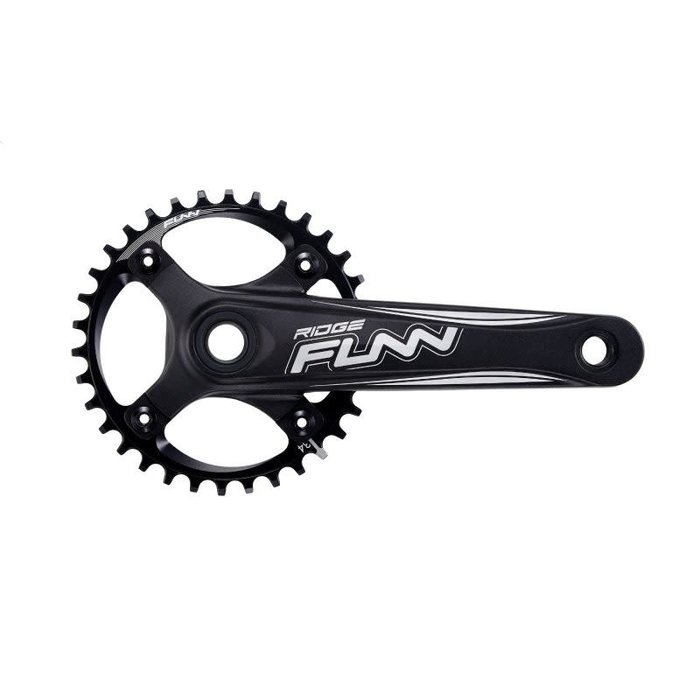

The Funn Ridge in Black is a 1x forged AL6061 crankset with 175 mm arms, a 24 mm axle and a 32T narrow-wide 104 mm BCD chainring, and it includes a BSA external-cup bottom bracket. Read more.

  • Local WA support - over 60 years of experience
  • Live stock levels - see whats in our store 24/7
  • Easy 100 day returns for full refund
  • Home of premium brands - Pinarello, Scott, Trek, Alvas

Product description

The Ridge is Funn's tough 1x alloy crankset for trail, cross-country and gravel, with forged AL6061 arms and a carbon steel 24 mm axle. This version has 175 mm arms and a 32T CNC AL7075 narrow-wide chainring on a 104 mm BCD, so you can swap rings later without being tied to one brand.

The crank arms weigh 667 g and the 32T ring is 42 g. It is made for 10- to 12-speed drivetrains and fits 68 mm or 73 mm threaded BSA shells, as well as PF92 press-fit frames with the right 24 mm bottom bracket.

An external-cup BSA bottom bracket for 68 mm and 73 mm threaded shells is included in the box. If your frame is PF92, you will need a separate 24 mm press-fit bottom bracket instead of the cups that come with the crank.

Key Features

  • Forged AL6061 arms: Tough enough for trail and enduro, at 667 g for the arms.
  • 175 mm length: The longer of Funn's two Ridge lengths, for riders who want a little more leverage.
  • 32T narrow-wide ring: A CNC AL7075 104 mm BCD ring that helps hold the chain on a 1x setup.
  • 24 mm steel axle: A Shimano-style spindle that takes a 24 mm bottom bracket.
  • BSA bottom bracket included: An external-cup BB for 68 mm and 73 mm threaded shells.
  • 10- to 12-speed: Built for modern 1x cassettes.

Specifications

  • Brand: Funn
  • Model: Ridge
  • Colour: Black
  • Type: 1x crankset
  • Arm material: Forged AL6061
  • Axle: Carbon steel, 24 mm
  • Crank length: 175 mm
  • Chainring: 32T, CNC AL7075, narrow-wide, 104 mm BCD
  • Rear speed: 10–12 speed
  • Bottom bracket: BSA external-cup included, for 68 mm and 73 mm threaded shells
  • Also compatible with: PF92 press-fit (24 mm BB not included)
  • Weight: 667 g (arms) + 42 g (32T ring), without BB
  • In the box: Crankset, 32T chainring and BSA external-cup bottom bracket

Why This IS For You

✅ You want a tough 1x alloy crankset at a sensible price: Forged arms, a 24 mm axle and a 32T narrow-wide ring, with a BSA BB in the box.

✅ You prefer 175 mm arms: That is the longer Ridge length, with a little more leverage than 170 mm.

✅ You have a 68 mm or 73 mm threaded BSA shell: The included external-cup bottom bracket is for those shells.

Why This May NOT Be For You

❌ You need 170 mm arms, or a 34T or 36T ring: This is the 175 mm x 32T version; the other sizes are separate.

❌ Your frame is PF92 and you were counting on a press-fit BB in the box: The included cups are for threaded BSA shells; a PF92 frame needs a separate 24 mm press-fit BB.

BFC PRO TIP

Measure your bottom-bracket shell before you fit the cups — 68 mm and 73 mm look alike until you put a rule across them. If the frame is PF92, set the included BSA cups aside and use a 24 mm press-fit bottom bracket. Check the chainring bolts after the first few rides.

Specifications

SKU
FN-CR15RGA17532-01
