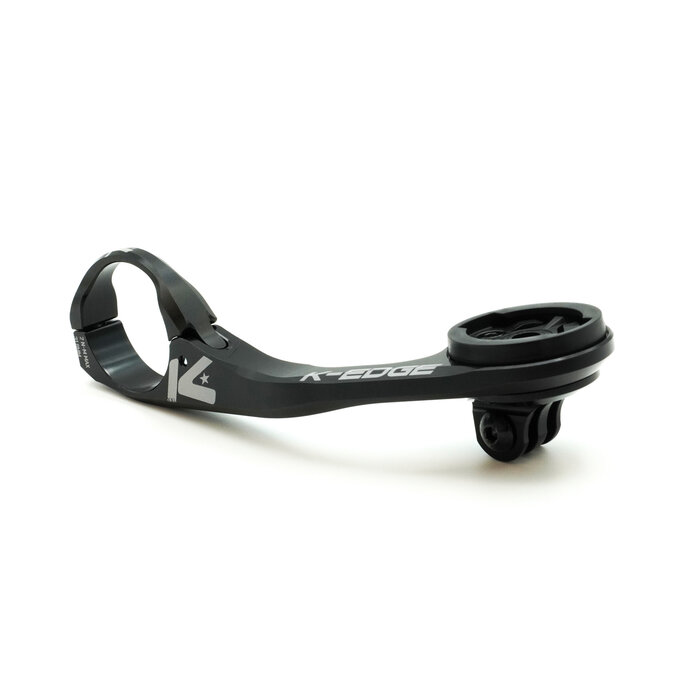

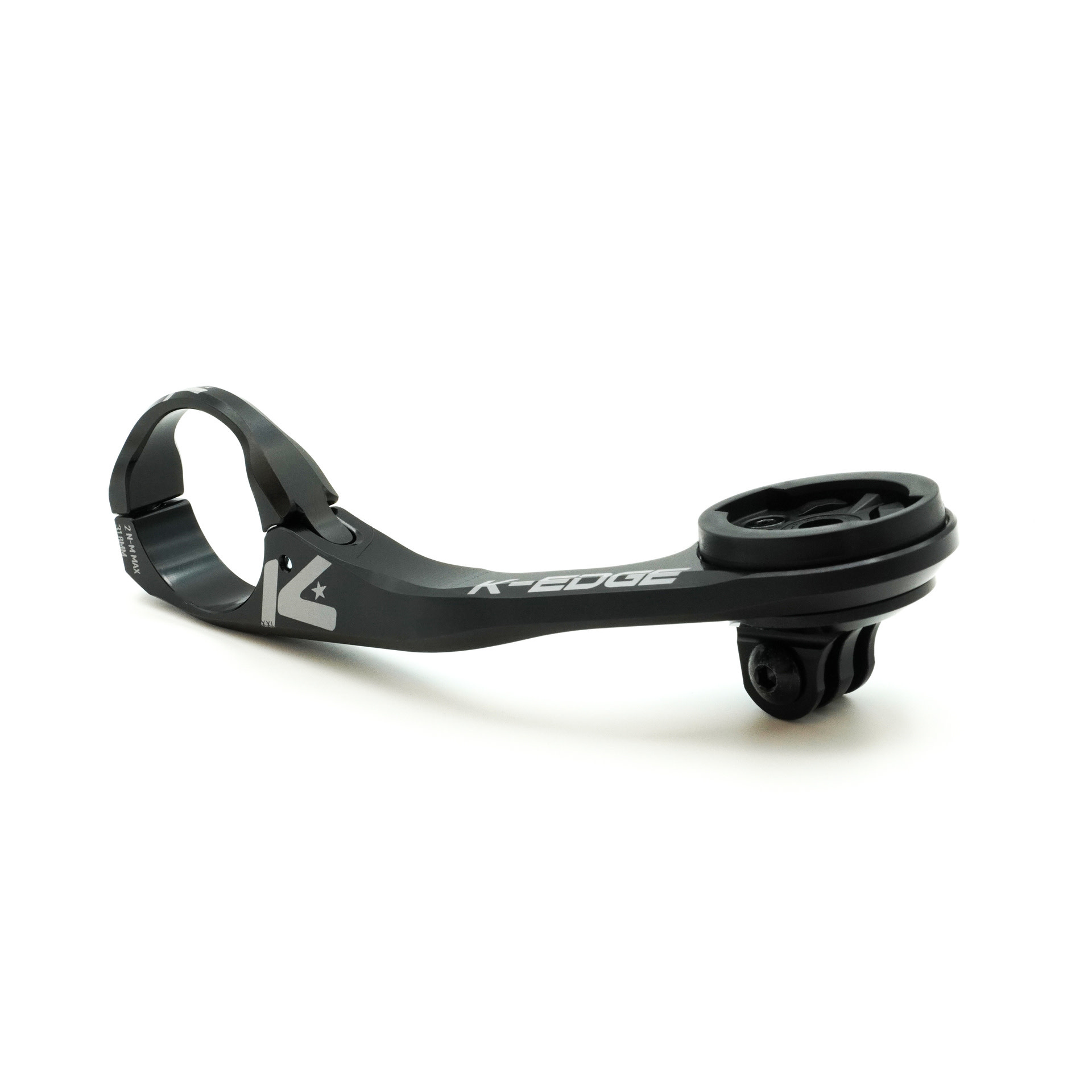

The K-EDGE Max XXL Combo is the most robust out-front mounting solution ever produced by the CNC specialists in Boise, Idaho. Specifically engineered to handle the substantial weight and physical dimensions of modern flagship units like the Garmin Edge 1050, this mount provides a rock-solid, vibration-free platform. The "XXL" designation refers to the reinforced, extended arm length which ensures that even the largest 1000-series displays sit perfectly centered and clear of the handlebars, providing easy access to bottom buttons while maintaining a sleek, pro-level silhouette.
As a Combo model, it features a pre-installed GoPro-style interface tucked directly beneath the computer. This allows you to securely mount a high-lumen front light or an action camera, effectively decluttering your cockpit and aligning all your electronics on a single, ultra-strong axis. Machined from a single block of 6061-T6 aluminum, the Max XXL eliminates the "bounce" associated with plastic mounts, ensuring your data is easy to read even on the most punishing road or gravel surfaces.
CNC Machined Aluminum: Crafted from a single billet of aircraft-grade aluminum for the ultimate strength-to-weight ratio, finished with a premium black anodize and laser-etched graphics.
Massive Payload Capacity: Engineered for the heaviest setups, supporting up to 208g on top (designed specifically for the mass of the Edge 1050) and 242g underneath (ideal for heavy lights like the NiteRider 1800 or Cycliq FLY12).
XXL Length & Reach: The extended arm provides necessary clearance for oversized head units, preventing interference with the stem faceplate or handlebar accessories.
Integrated Combo Interface: Includes the K13-580-BLK GoPro-style adapter, allowing for a "stacked" configuration that hides your light or camera out of the wind.
Garmin-Approved Breakaway Insert: Features a replaceable co-polymer plastic insert designed to shear off in the event of a high-force crash, sacrificing the mount insert to protect the delicate mounting tabs on your expensive Garmin device.
One-Piece Rigid Design: Unlike multi-piece adjustable mounts, the single-piece arm design maximizes stiffness, which is critical for clear, stable camera footage.
| Feature | Specification |
| Model | Max XXL Combo (Garmin) |
| Material | 6061-T6 Aluminum (CNC Machined) |
| Computer Compatibility | All Garmin Edge Units (1050, 1040, 1030, etc.) |
| Accessory Compatibility | GoPro style (Lights/Cameras) |
| Clamp Size | 31.8mm Round Handlebars |
| Weight | ~66g |
| Payload (Top/Bottom) | 208g / 242g |
The Edge 1050 / 1040 Owner: If you are running Garmin's largest displays, the XXL length is essential for proper clearance and button access.
The Content Creator: Ideal for riders who want vibration-free camera footage; the rigid aluminum arm prevents the "camera shake" common with plastic mounts.
The "Clean Cockpit" Enthusiast: Perfect for those who want to hide their front light underneath their computer for a minimalist and aerodynamic setup.
Integrated Handlebar Systems: This mount is designed for round 31.8mm bars only. If you have an aero/integrated cockpit, you require a specialized IHS (Integrated Handlebar System) mount.
Weight-Sensitive Climbers: If you only use a small unit like an Edge 130 and don't use a light/camera, the standard K-EDGE Max (Non-Combo) is significantly lighter and more compact.
The Edge 1050 has a significantly larger footprint than the 1030 or 1040. If your bike has an exceptionally thick or wide stem faceplate, the Max XXL is the only mount in the K-EDGE range that guarantees the necessary clearance to prevent the computer from rubbing. To keep the setup secure, always use the provided safety tether for your electronics—if the breakaway insert does its job during a crash, the tether ensures your Garmin doesn't bounce down the road! Finally, ensure the single clamp bolt is tightened to 2Nm to prevent slippage on carbon bars.
