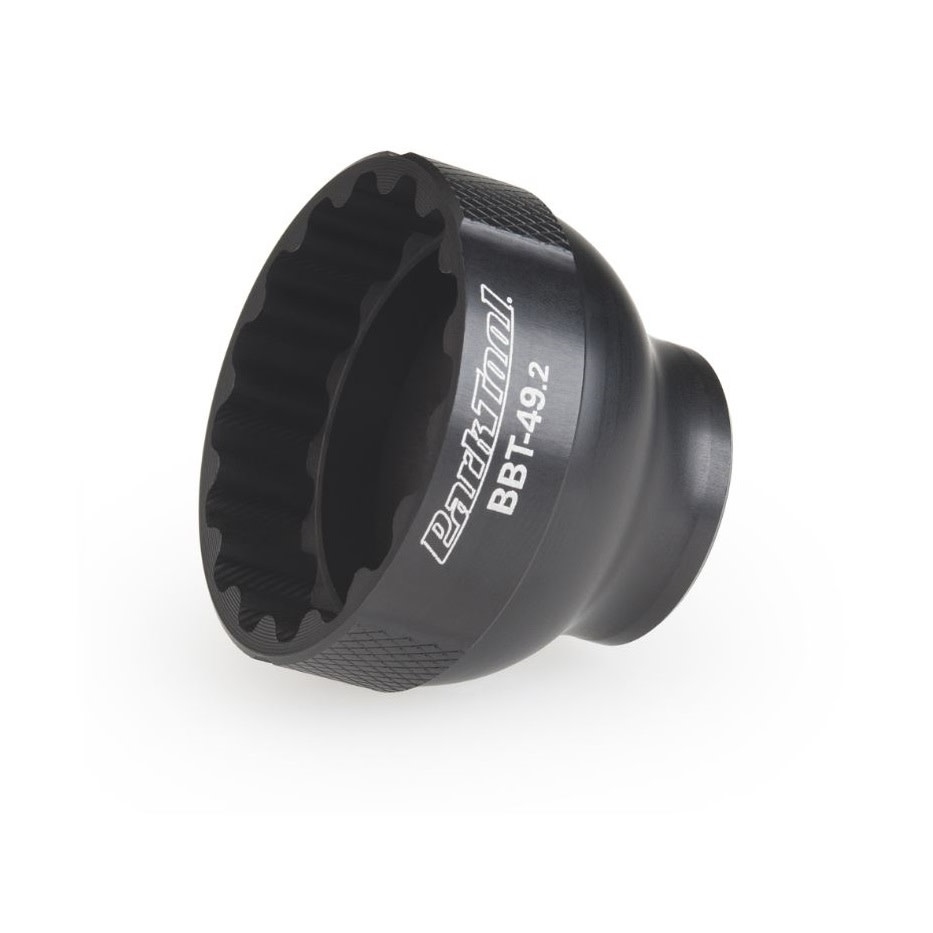

The BBT-49.2 is a precision, CNC-machined aluminium tool for 16-notch threaded bottom brackets with a 39–40 mm major diameter and a 37.6 mm minor diameter. Park Tool lists it for Shimano XTR BB93, Dura-Ace BB9000 and Token cups, and it also fits the chainring lockrings on Shimano STEPS square-spindle e-bike systems such as the E6000, E6002 and E6050.
It is made in-house, anodised and laser-engraved for identification, and uses a 3/8-inch drive so you can turn it with a ratchet or a torque wrench. The tooth profile is cut to sit cleanly on these smaller, high-performance cups. It is a replacement for the Shimano TL-FC38 tool.
✅ You service XTR BB93, Dura-Ace BB9000 or similar 39–40 mm 16-notch cups: The BBT-49.2 is cut for that smaller fitting.
✅ You need to remove a STEPS E6000, E6002 or E6050 chainring lockring: Those lockrings share this 16-notch pattern.
❌ Your cups are the more common 44–45 mm 16-notch size: That fitting takes a tool such as the BBT-19.2 or BBT-69.2.
❌ You want the current replacement tool: Park Tool has replaced the BBT-49.2 with the BBT-49.3.
Confirm the cup is 39–40 mm across the notches, not the larger 44–45 mm Hollowtech-style fitting, before you put the tool on. Use a torque wrench on the 3/8-inch drive when you refit the cups.
