| BUY THIS IF : | You are installing a Praxis M30 alloy spindle crank into bicycle frame with a press fit 41mm bore, and has the measurements below. |
| FRAME SPEC WIDTH & USE |
⚠️This one BB is used for these frame types that have a 41mm Diameter : BB86 - ROAD & BMX | 86.5mm Width BB90 - MTN ONLY | 89.5mm Width BB92 - MTN ONLY | 92mm Width BB104.5 - DH MTN | 104.5mm Width BB107 - DH MTN | 107mm Width Helpful frame shell guide here |
| BEARINGS | Steel press fit with integrated bearing. New Ceramic Option now Avail! 30mm DRIVE / 28mm Non-DRIVE |
| TOOL | ⚠️This specific M30 BB is a press fit. Use BB press tool/drift for installation, and a cup-removal tool for removal. These are very specific tools so talk to your local bike shop if you do not own them. See Instruction link. |
| MFG | Unique precision ground steel integrated design in which the bearing race and carrier are all in one. |
| AVG. WEIGHT | 65g |

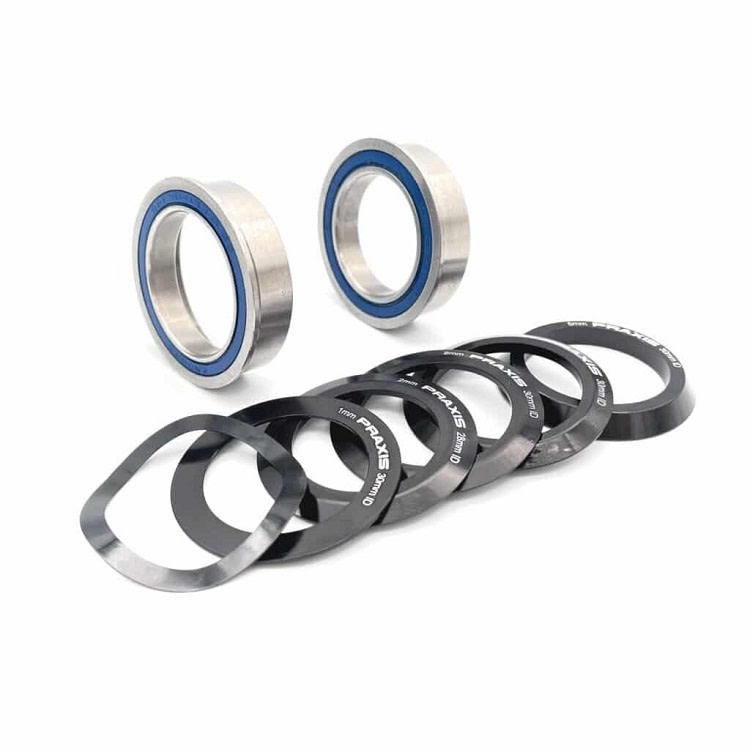

| NOTE | Praxis M30 bottom brackets have a 30mm Drive and a 28mm NonDrive Bearing. These are specifically made for use with our Praxis M30 spindles. A drive-side wave washer is used for preload of the bearings. |
