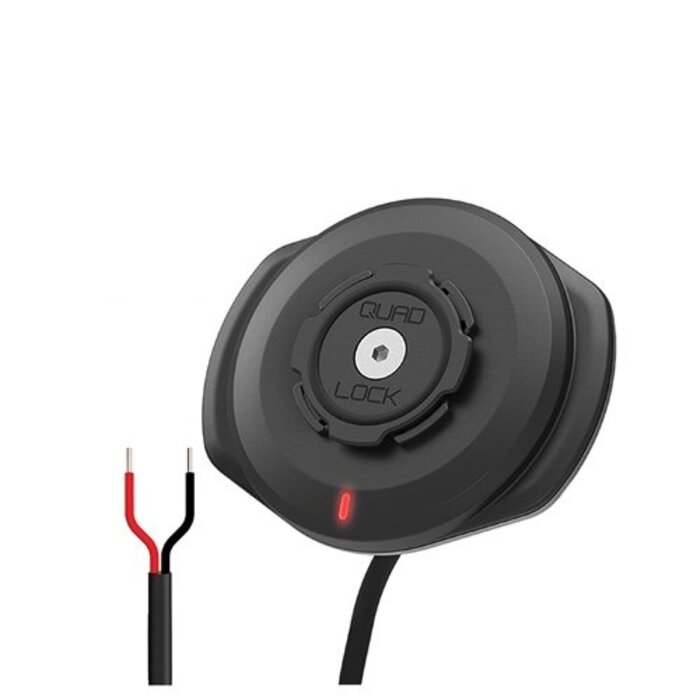

QUADLOCK WATERPROOF WIRELESS CHARGING HEAD 12V / 24V

The Hardwired Standard for Permanent Power.

The Quad Lock 12V-24V Waterproof Wireless Charging Head is the professional-grade solution for riders who want a clean, permanent power source without relying on external USB ports or cables.Unlike the standard USB version, this "Hardwired" model is designed to be integrated directly into your motorcycle’s or marine vessel’s electrical system.It offers a higher level of environmental protection (IP67) and a more stable power delivery, making it the top choice for long-distance touring, adventure riding, and marine applications.

This unit features the same patented dual-stage locking mechanism found across the Quad Lock motorcycle range, ensuring your phone stays mechanically fixed in place even over the most aggressive terrain.By moving the power conversion internals into a hardwired 1.5m cable with fly leads, it provides a streamlined look at the handlebars while delivering up to 15W of fast-charging power to compatible devices.

Key Performance Features

• Direct Hardwire Integration: Designed to connect to your vehicle's 12V or 24V battery system. This eliminates the need for bulky 12V-to-USB adapters and provides a more reliable, "always-ready" charging solution.

• IP67 Waterproof Rating: Fully dust-tight and submersible in up to 1 meter of water for 30 minutes. This is a step up from the "weatherproof" IP66 rating, providing total peace of mind in torrential rain or during high-pressure bike washes.

• 15W Fast Charging: Automatically adjusts output (5W, 7.5W, 10W, or 15W) to match your device’s maximum wireless intake, ensuring your battery stays topped up even while running power-heavy GPS apps.

• Thermal Management: The rear housing is constructed from anodized aluminum, which acts as a heat sink to dissipate the warmth generated by wireless charging, preventing your smartphone from thermal-throttling on hot days.

• Secure Dual-Stage Lock: Provides a robust mechanical connection that requires a deliberate "push and twist" to engage, preventing accidental ejections regardless of vibration or impact.

• Fly Lead Connectivity: Comes with a 1.5m hardwired cable with bare fly leads, allowing for a professional, custom installation through your bike's wiring loom.



Technical Specifications

✅ Why This IS For You

• The Professional Installer: Ideal for riders who want the cleanest possible cockpit with hidden wiring tucked under the fuel tank or fairings.

• Marine & Open-Cockpit Users: The IP67 rating makes this the only choice for boats, jet skis, or motorcycles frequently exposed to salt spray and heavy water.

• High-Torque Adventure Bikes: Perfect for off-roaders who need a "fit and forget" power source that won't vibrate loose or lose connection like a standard USB plug.

❌ Why This May NOT be for you

• Non-Wireless Devices: Requires a Qi-compatible smartphone and a dedicated Quad Lock Case. It is not compatible with the Quad Lock Universal Adaptor due to thickness constraints.

• Pixel 9 & 8a Users: Note that the Pixel 9 series and Pixel 8a are currently noted as not compatible with the Hardwired version of this charger.

• Novice Installers: Requires basic electrical knowledge to wire into a switched power source. If you prefer a "plug and play" setup, the Quad Lock USB Waterproof Charging Head is a simpler alternative.

BFC Pro Tip

Installation is critical: Do not wire this head directly to your battery's positive and negative terminals. It will draw a tiny "phantom current" (approx. 12mA) even when not charging, which can drain a motorcycle battery over a few weeks of sitting. For the best setup, wire it into a switched ignition circuit (like your headlight or accessory port) or use an isolator switch. This ensures the charger only draws power when the bike is "ON." For maximum protection of your phone's camera, always mount this head on top of a Quad Lock Vibration Dampener!
