Engineered to defy gravity and elevate your performance, the Addict RC is our lightest production race bike ever. Whether you're attacking steep climbs or sprinting for the finish line, every aspect of this bike was meticulously crafted with one thing in mind – leaving everyone else in the dust.

Key features

• Addict RC HMX Carbon frame
• SRAM FORCE AXS Disc 24 Speed drivetrain
• SRAM FORCE brakes
• Syncros Capital 1.0S 40mm wheelset
• Continental Grand Prix 5000 S TR tires, 30x622
• Syncros Carbon components
• Syncros handlebar tool

Technical Specifications

Frame	Addict RC HMX, race geometry, replaceable derailleur hanger, internal cable routing
Fork	Addict RC HMX Flatmount Disc, 27.2mm eccentric carbon steerer
Headset	Acros AIF-1317
Rear Derailleur	SRAM FORCE AXS 24-Speed, Electronic Shift System
Front Derailleur	SRAM FORCE AXS Electronic Shift System
Shifters	SRAM FORCE AXS HRD Shift-Brake System
Brakes	SRAM FORCE AXS HRD Shift-Brake System

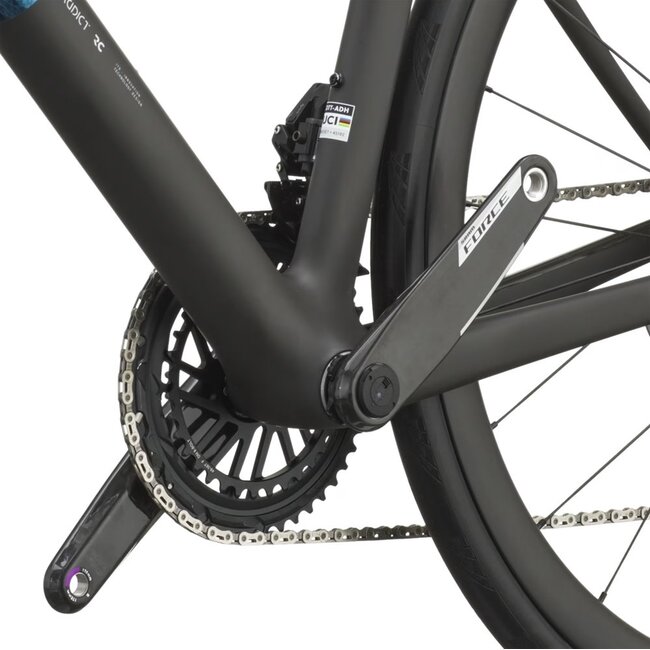

Crankset	SRAM FORCE Powermeter 48-35T
Front Disc Rotor	SRAM Paceline CL, 160mm
Rear Disc Rotor	SRAM Paceline CL, 140mm
BB-Set	SRAM DUB PF ROAD 86.5
Handlebar	Syncros Creston iC SL, Carbon combo
Seatpost	Syncros SP-R101-CF
Seat	Syncros Belcarra V 2.0 Cut-out, CrMo rails
Chain	SRAM FORCE
Wheelset	Syncros Capital 1.0S 40mm, 24 Front, 24 Rear, Syncros SL Axle
Cassette	SRAM FORCE XG1270, 10-36T
Extras	Syncros handlebar tool, SRAM AXS powerpack
Approx weight in KG	6.9
Approx weight in LBS	15.21
Grips	Syncros RC Bartape
Front Tire	Continental Grand Prix 5000 S TR 30x622
Rear Tire	Continental Grand Prix 5000 S TR 30x622
Max. System Weight	120kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.



Geometry

	XXS_47	XS_49	S_52	M_54	L_56	XL_58	XXL_61
A head tube angle	71.3 mm	71.8 mm	72.3 mm	72.8 mm	73.4 mm	73.6 mm	73.8 mm
B head tube length	90.0 mm	100.0 mm	113.0 mm	130.0 mm	150.0 mm	170.0 mm	190.0 mm
C top tube horizontal	519.0 mm	528.0 mm	542.0 mm	555.0 mm	572.0 mm	586.0 mm	602.0 mm
D standover height	725.0 mm	740.0 mm	758.0 mm	778.0 mm	799.0 mm	820.0 mm	840.0 mm
E BB offset	-74.0 mm	-74.0 mm	-73.0 mm	-72.0 mm	-72.0 mm	-72.0 mm	-72.0 mm
F BB height	270.5 mm	270.5 mm	271.5 mm	272.5 mm	272.5 mm	272.5 mm	272.5 mm
G wheel base	977.0 mm	983.2 mm	988.8 mm	990.8 mm	999.0 mm	1006.4 mm	1015.4 mm
H BB center to toptube center	412.5 mm	432.5 mm	452.1 mm	472.0 mm	492.2 mm	512.3 mm	532.4 mm
I BB center to top of seattube	422.5 mm	442.5 mm	462.1 mm	482.0 mm	502.2 mm	522.3 mm	542.4 mm
J seat angle	74.5 mm	74.5 mm	74.0 mm	73.6 mm	73.3 mm	72.8 mm	72.5 mm
K chainstay	410.0 mm	410.0 mm	410.0 mm	410.0 mm	410.0 mm	410.0 mm	410.0 mm
L reach	379.4 mm	386.3 mm	391.6 mm	395.2 mm	402.6 mm	406.1 mm	411.3 mm
M stack	501.3 mm	512.5 mm	525.5 mm	543.3 mm	564.5 mm	584.3 mm	604.2 mm
N stem length	80.0 mm	90.0 mm	100.0 mm	110.0 mm	110.0 mm	120.0 mm	120.0 mm
O handlebar width	360.0 mm	380.0 mm	380.0 mm	400.0 mm	400.0 mm	400.0 mm	420.0 mm
P cockpit reach	530.0 mm	547.0 mm	563.0 mm	577.0 mm	585.0 mm	599.0 mm	604.0 mm
Q cockpit min. stack	562.0 mm	573.0 mm	586.0 mm	604.0 mm	623.0 mm	643.0 mm	662.0 mm
R crank arm length	165.0 mm	165.0 mm	170.0 mm	170.0 mm	172.5 mm	172.5 mm	175.0 mm
S fork offset	47.0 mm	47.0 mm	47.0 mm	44.0 mm	44.0 mm	44.0 mm	44.0 mm
