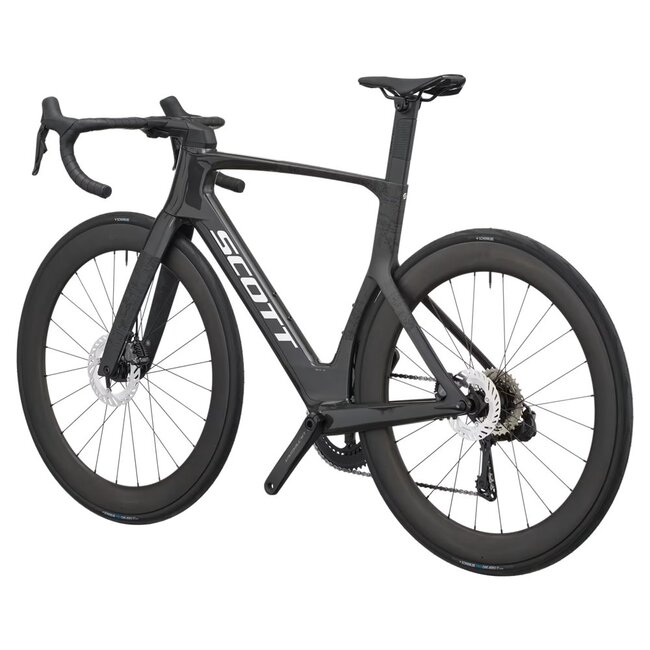

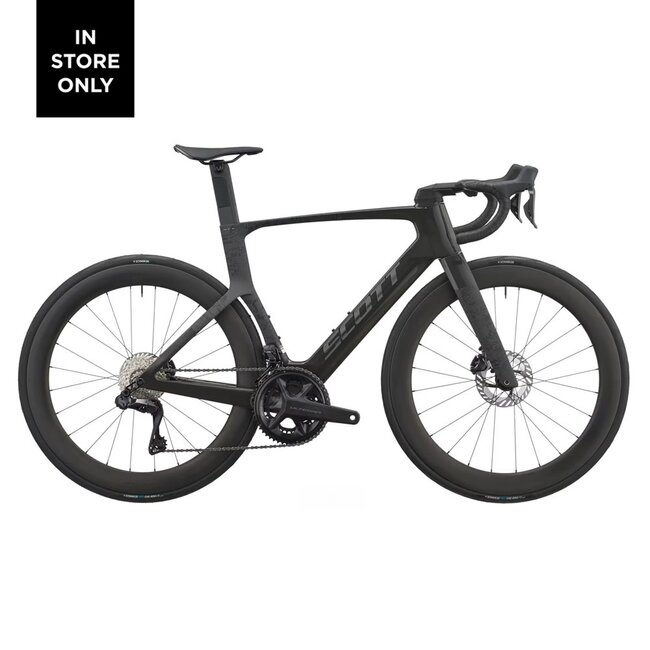

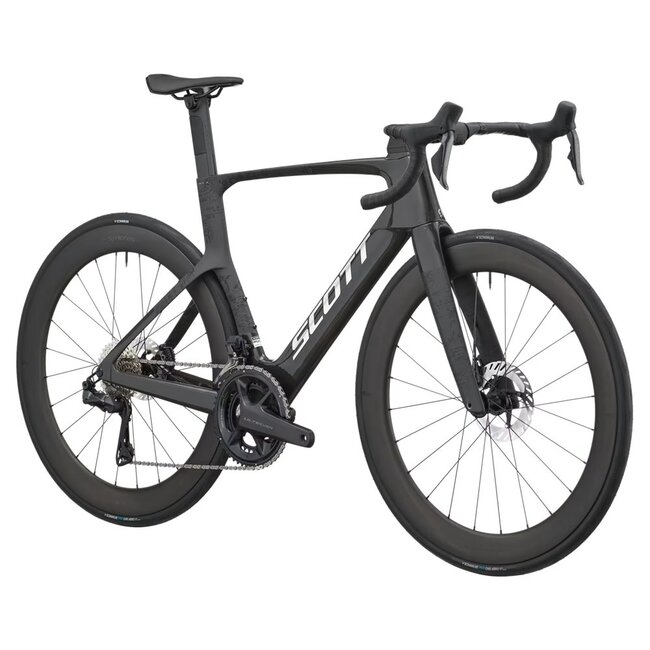

Aero, Lightweight or Comfort – choose three. Welcome to the next evolution of aero bikes with the Foil RC. Designed to meet the demands of WorldTour sprinters, attackers and breakaway riders, this is the fastest road bike we’ve ever produced. Win Every Ride.

Key features

• FOIL RC HMX Carbon frame
• Shimano Ultegra Di2 24 Speed drivetrain
• Syncros Capital 1.0 60mm wheelset
• Schwalbe PRO ONE Aero tires, 700x28C
• Syncros Carbon components

Technical Specifications

Frame	Foil RC Disc HMX, race geometry, replaceable derailleur hanger, internal cable routing
Fork	Foil RC Disc HMX, 1" eccentric carbon steerer
Headset	Acros AIF-1138

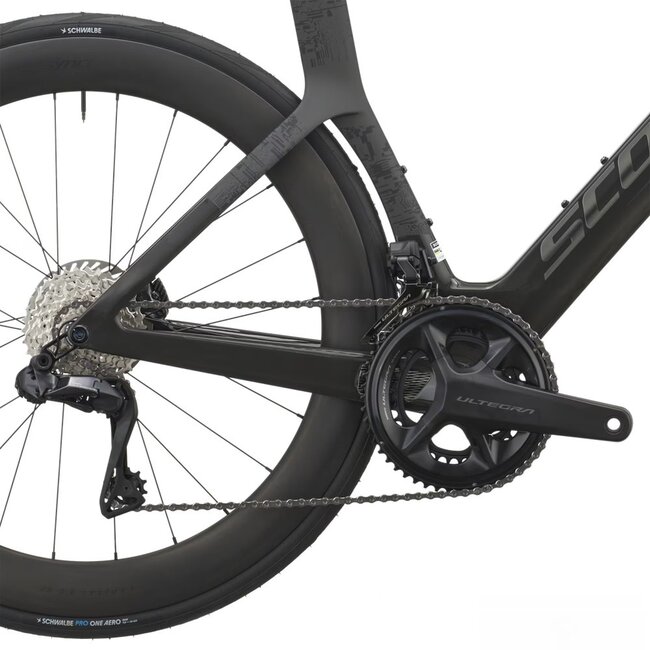

Rear Derailleur	Shimano Ultegra Di2 RD-R8150 24 Speed, Electronic Shift System
Front Derailleur	Shimano Ultegra Di2 FD-R8150, Electronic Shift System
Shifters	Shimano Ultegra Di2 ST-R8170, 24 Speed Electronic Shift System, Shimano BR-R8170 Hyd.Disc
Brakes	Shimano BR-R8170 Hyd.Disc

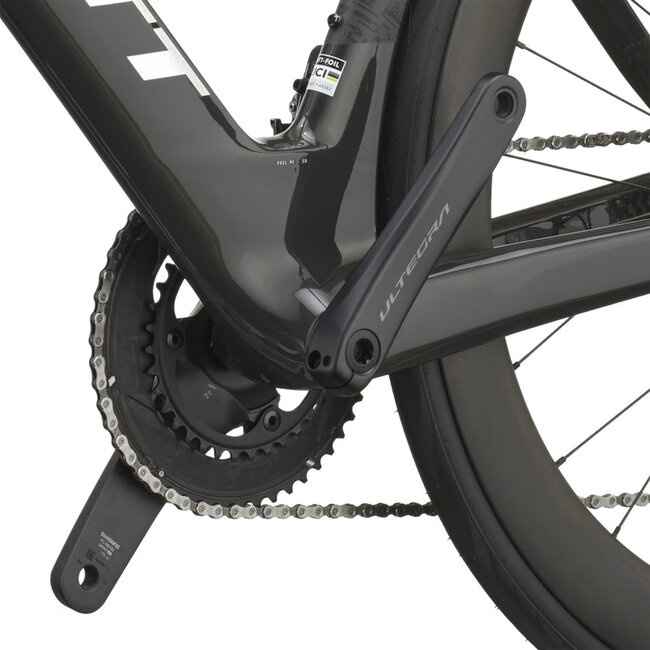

Crankset	Shimano Ultegra FC-R8100, Hollowtech II 52-36T
Front Disc Rotor	Shimano RT-CL800, 160mm
Rear Disc Rotor	Shimano RT-CL800, 140mm
BB-Set	Shimano SM-BB71-41B

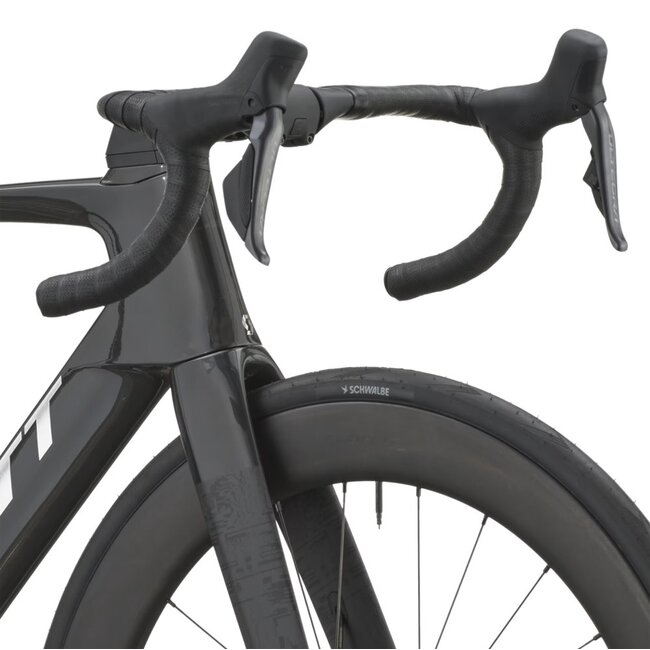

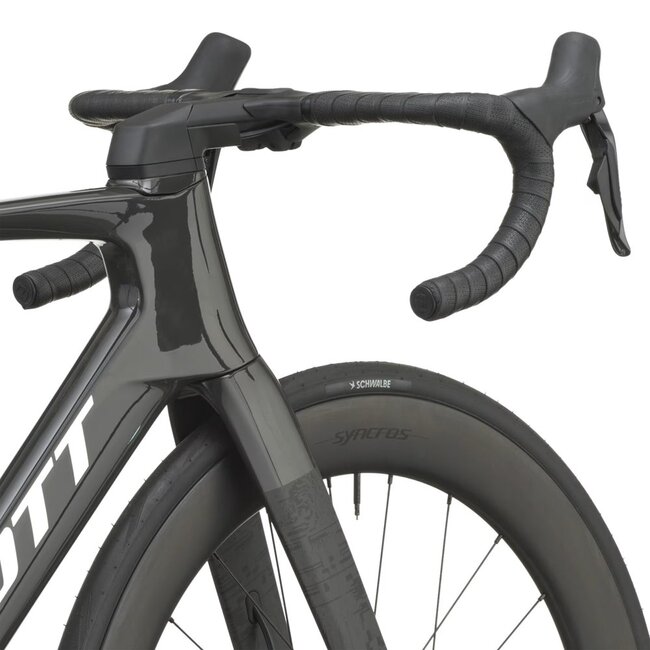

Handlebar	Syncros Creston 1.0 Aero
H'stem	Syncros Foil 1.5 Aero
Seatpost	Syncros Duncan SL Aero CFT
Seat	Syncros Belcarra V 2.0 Cut-out, CrMo rails
Chain	Shimano CN-M8100
Wheelset	Syncros Capital 1.0 60mm, 24 Front, 24 Rear, Syncros SL Axle, removable lever with tool
Cassette	Shimano Ultegra CS-R8100-12, 11-34
Extras	Shimano Built in DN300
Approx weight in KG	7.9
Approx weight in LBS	17.42
Grips	Syncros RC Bartape
Front Tire	Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C
Rear Tire	Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C
Max. System Weight	120kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.



Geometry



XXS_47	XS_49	S_52	M_54	L_56	XL_58	XXL_61
A head tube angle	70.5 mm	71.0 mm	72.0 mm	72.5 mm	73.0 mm	73.3 mm
B head tube length	103.0 mm	108.0 mm	121.0 mm	141.0 mm	161.0 mm	181.0 mm
C top tube horizontal	520.0 mm	530.0 mm	540.0 mm	550.0 mm	565.0 mm	580.0 mm
D standover height	746.4 mm	759.6 mm	779.4 mm	801.0 mm	820.0 mm	838.0 mm
E BB offset	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm
F BB height	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm
G wheel base	987.7 mm	993.7 mm	990.7 mm	992.6 mm	999.9 mm	1008.6 mm
H BB center to toptube center	450.8 mm	480.9 mm	501.4 mm	521.6 mm	541.4 mm	558.8 mm
I BB center to top of seattube	451.8 mm	481.9 mm	502.4 mm	522.6 mm	542.4 mm	559.8 mm
J seat angle	74.5 mm	74.5 mm	74.0 mm	73.6 mm	73.3 mm	73.0 mm
K chainstay	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm
L reach	380.0 mm	388.0 mm	389.0 mm	389.0 mm	394.5 mm	400.0 mm
M stack	505.0 mm	511.0 mm	527.0 mm	548.0 mm	568.0 mm	589.0 mm
N stem length	80.0 mm	90.0 mm	100.0 mm	110.0 mm	110.0 mm	120.0 mm
O handlebar width	380.0 mm	380.0 mm	380.0 mm	400.0 mm	400.0 mm	400.0 mm
