Aero, Lightweight or Comfort – choose three. Welcome to the next evolution of aero bikes with the Foil RC. Designed to meet the demands of WorldTour sprinters, attackers and breakaway riders, this is the fastest road bike we’ve ever produced. Win Every Ride.

Key features

• FOIL RC HMX Carbon frame
• SRAM FORCE AXS Disc 24 Speed drivetrain
• Syncros Capital 1.0S Aero 60mm wheelset
• Schwalbe PRO ONE Aero tires, 700x28C
• Syncros Carbon components

Technical Specifications

Frame	Foil RC Disc HMX, race geometry, replaceable derailleur hanger, internal cable routing
Fork	Foil RC Disc HMX, 1" eccentric carbon steerer
Headset	Acros AIF-1138

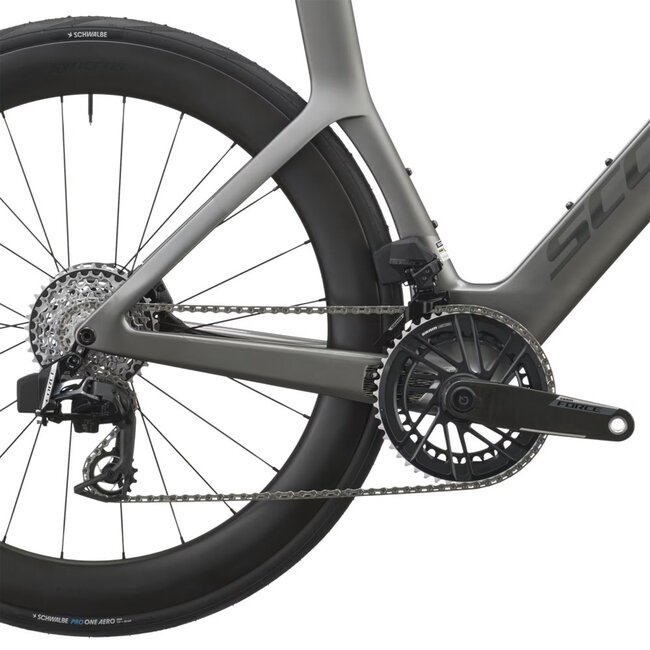

Rear Derailleur	SRAM FORCE AXS 24-Speed, Electronic Shift System
Front Derailleur	SRAM FORCE AXS Electronic Shift System
Shifters	SRAM FORCE AXS HRD Shift-Brake System
Brakes	SRAM FORCE AXS HRD Shift-Brake System

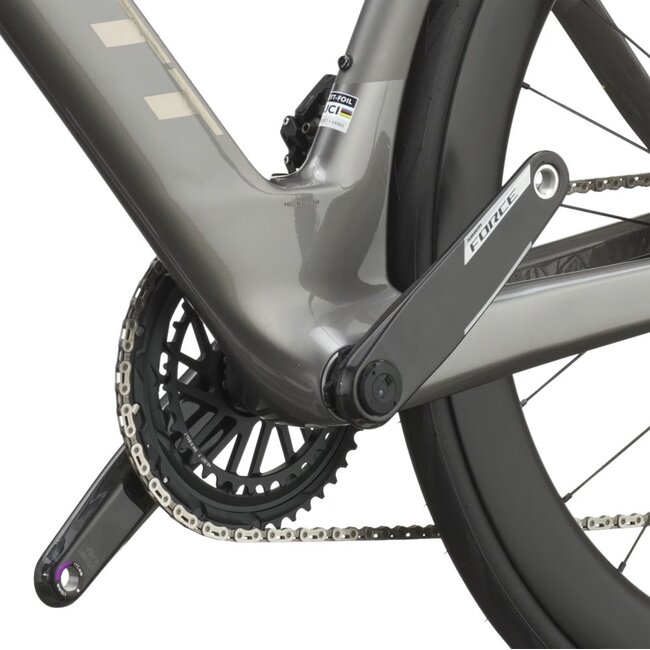

Crankset	SRAM FORCE Powermeter 48-35T
Front Disc Rotor	SRAM Paceline CL, 160mm
Rear Disc Rotor	SRAM Paceline CL, 140mm
BB-Set	SRAM DUB PF ROAD 86.5
Handlebar	Syncros Creston iC SL Aero, Carbon combo
Seatpost	Syncros Duncan SL Aero CFT
Seat	Syncros Belcarra V 2.0 Cut-out, CrMo rails
Chain	SRAM FORCE
Wheelset	Syncros Capital 1.0S Aero 60mm, 24 Front, 24 Rear, Syncros SL Axle, removable lever with tool
Cassette	SRAM FORCE XG1270, 10-36T
Extras	SRAM AXS Powerpack
Approx weight in KG	7.5
Approx weight in LBS	16.53
Grips	Syncros RC Bartape
Front Tire	Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C
Rear Tire	Schwalbe PRO ONE Aero, TL-Easy, Fold, 700x28C
Max. System Weight	120kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.



Geometry

Sizes in:

	XXS_47	XS_49	S_52	M_54	L_56	XL_58	XXL_61
A head tube angle	70.5 mm	71.0 mm	72.0 mm	72.5 mm	73.0 mm	73.3 mm	73.3 mm
B head tube length	103.0 mm	108.0 mm	121.0 mm	141.0 mm	161.0 mm	181.0 mm	199.0 mm
C top tube horizontal	520.0 mm	530.0 mm	540.0 mm	550.0 mm	565.0 mm	580.0 mm	600.0 mm
D standover height	746.4 mm	759.6 mm	779.4 mm	801.0 mm	820.0 mm	838.0 mm	853.3 mm
E BB offset	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm	-70.0 mm
F BB height	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm	274.5 mm
G wheel base	987.7 mm	993.7 mm	990.7 mm	992.6 mm	999.9 mm	1008.6 mm	1022.7 mm
H BB center to toptube center	450.8 mm	480.9 mm	501.4 mm	521.6 mm	541.4 mm	558.8 mm	571.4 mm
I BB center to top of seattube	451.8 mm	481.9 mm	502.4 mm	522.6 mm	542.4 mm	559.8 mm	572.4 mm
J seat angle	74.5 mm	74.5 mm	74.0 mm	73.6 mm	73.3 mm	73.0 mm	72.5 mm
K chainstay	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm	412.0 mm
L reach	380.0 mm	388.0 mm	389.0 mm	389.0 mm	394.5 mm	400.0 mm	409.0 mm
M stack	505.0 mm	511.0 mm	527.0 mm	548.0 mm	568.0 mm	589.0 mm	606.0 mm
N stem length	80.0 mm	90.0 mm	100.0 mm	110.0 mm	110.0 mm	120.0 mm	120.0 mm
O handlebar width	380.0 mm	380.0 mm	380.0 mm	400.0 mm	400.0 mm	400.0 mm	420.0 mm
