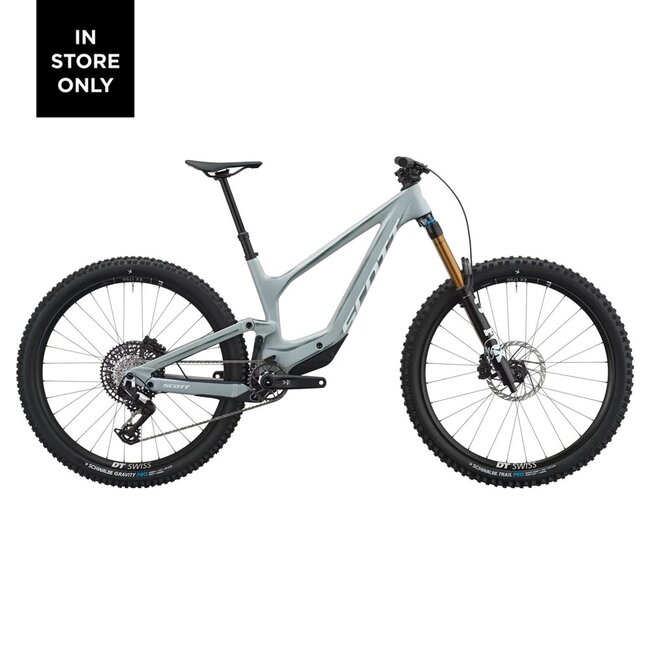

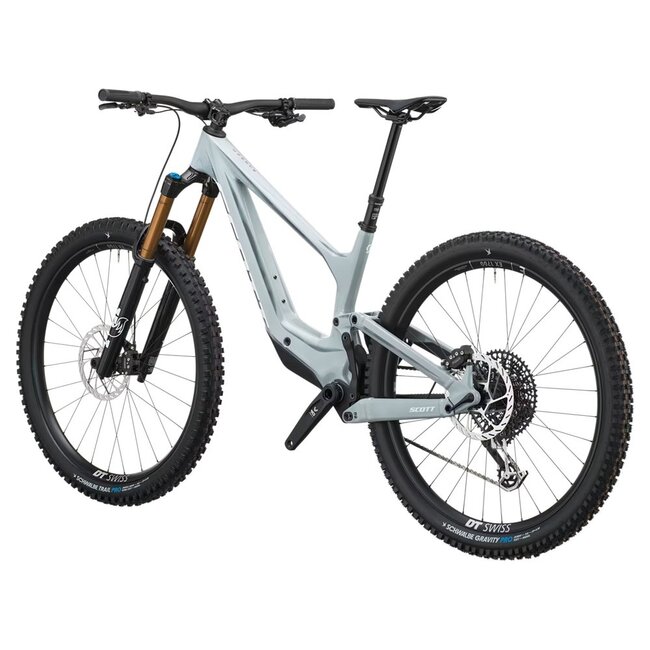

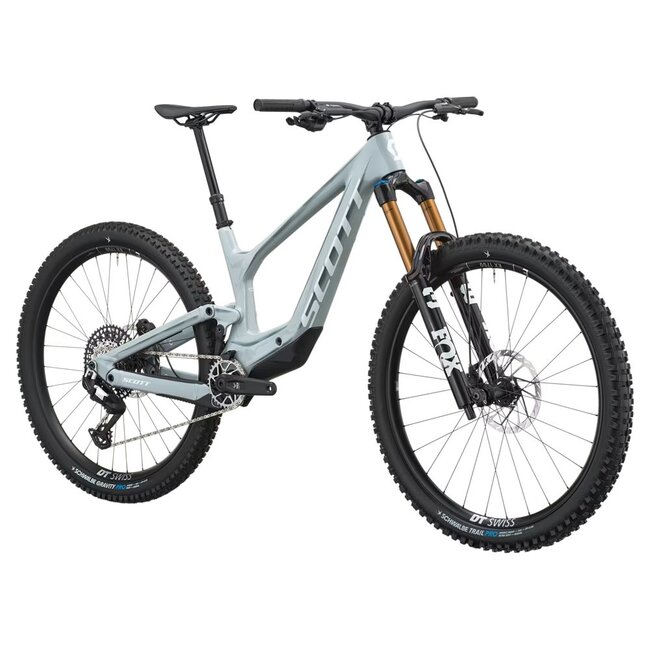

Introducing the SCOTT Ransom. Our latest version of Ransom was uncompromisingly engineered for maximum downhill performance and an all-time confidence inspiring ride. Killer geometry paired with a supernatural suspension kinematic result in a bike that doesn’t take “no” for an answer. Don’t hold yourself hostage, ride Ransom.
| Frame |

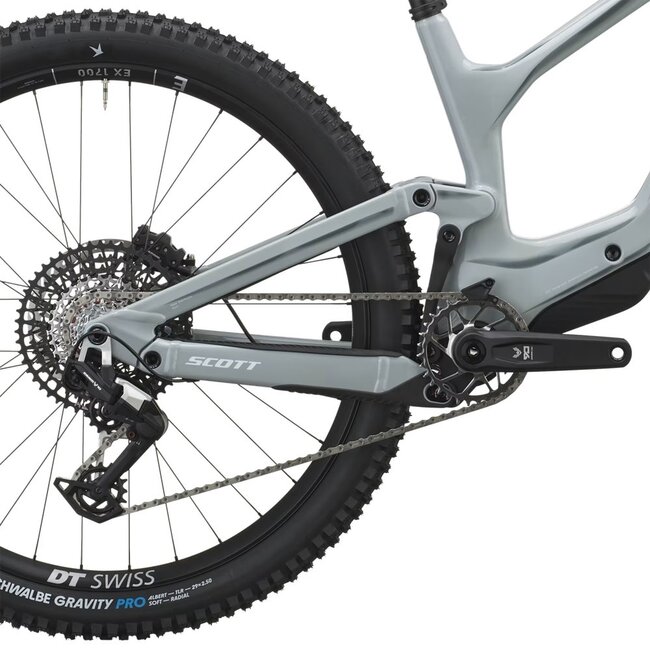

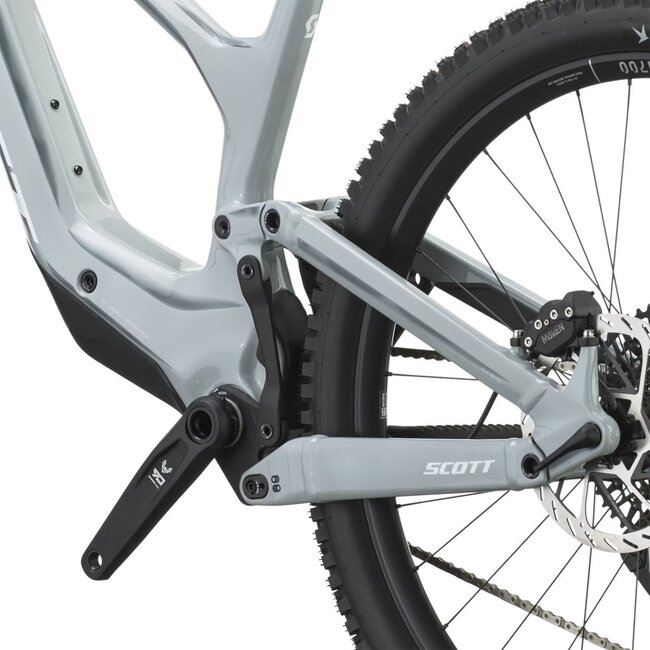

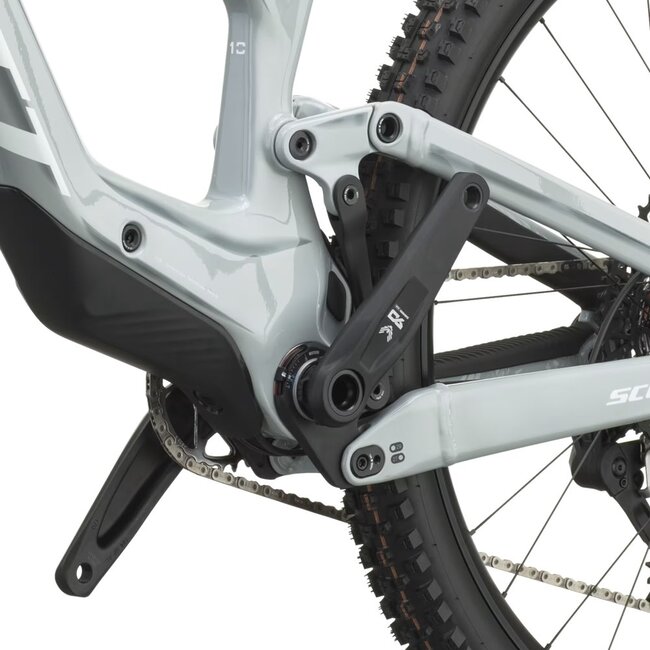

Ransom Carbon HMF Mainframe, alloy 6061 Rear End, 6 Link kinematic, Integrated Suspension Technology, head angle Adj, BB92, UDH interface, 12x148mm with 55mm chainline, MX ready
|
| Fork |

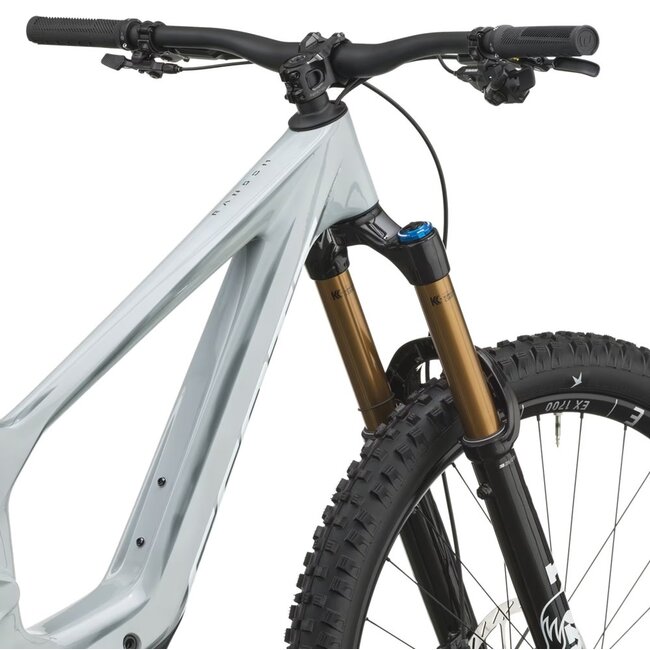

Fox 38 Float Factory Grip X2 Air, Kashima, HSC - LSC - HSR- LSR adjustable, Kabolt 15x110mm axle, tapered steerer
|
| Travel |
Front travel: 170 mm / Rear travel: 170 mm
|
| Rear Shock |
Fox DH X Factory, Comp-Reb Adj, SCOTT Ransom Custom Tune, 20x8mm Hardware, T205x65mm
|
| Headset |
Syncros - Acros angle adjust & cable routing HS system, stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
|
| Rear Derailleur |
SRAM Eagle 90 Transmission, 12 Speed
|
| Shifters |
SRAM Eagle 90 Trigger
|
| Brakes |
SRAM Maven Bronze 4-Piston
|
| Crankset |
SRAM Eagle 90 Transmission, DUB, 55mm CL, 32T
|
| Front Disc Rotor |
SRAM HS2 6B, 200mm
|
| Chainguide |
SCOTT custom
|
| Rear Disc Rotor |
SRAM HS2 6B, 200mm
|
| BB-Set |
SRAM DUB PF 92 MTB, shell 41x92mm
|
| Handlebar |
Syncros Hixon DH35 1.5
|
| H'stem |
Syncros CNC ST-M400-AL2 35mm
|
| Seatpost |
Syncros dropper post SP-M300-AL2, +RAD drop adjust, 31.6mm
|
| Seat |
Syncros Tofino R 1.5
|
| Chain |
SRAM GX Eagle Transmission
|
| Wheelset |
DT Swiss EX 1700 wheelset, EX350 DEG DF Hubs, EX 441 Alloy Rims
|
| Cassette |
SRAM GX Eagle XS-1275 Transmission, 10-52T
|
| Approx weight in KG |
16.84 Tubeless, without save the day kit
|
| Approx weight in LBS |
37.13 Tubeless, without save the day kit
|
| Grips |
Syncros Performance AM Lock-On
|
| Front Tire |
Schwalbe Magic Mary 29x2.5", Trail PRO, Radial, Ultra Soft, TLR, Foldable Bead
|
| Rear Tire |
Schwalbe Albert 29x2.5", Gravity, Radial, Ultra Soft, Tubeless ready, 120TPI Foldable Bead
|
| Max. System Weight |
130kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
|
