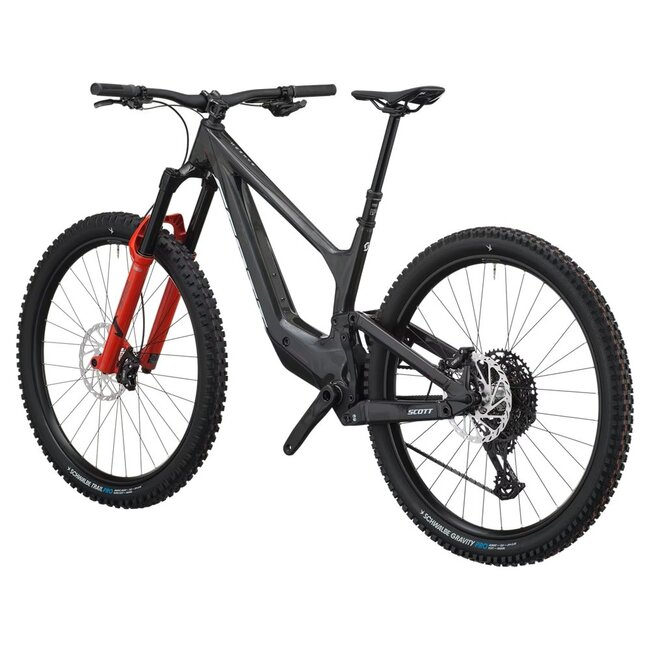

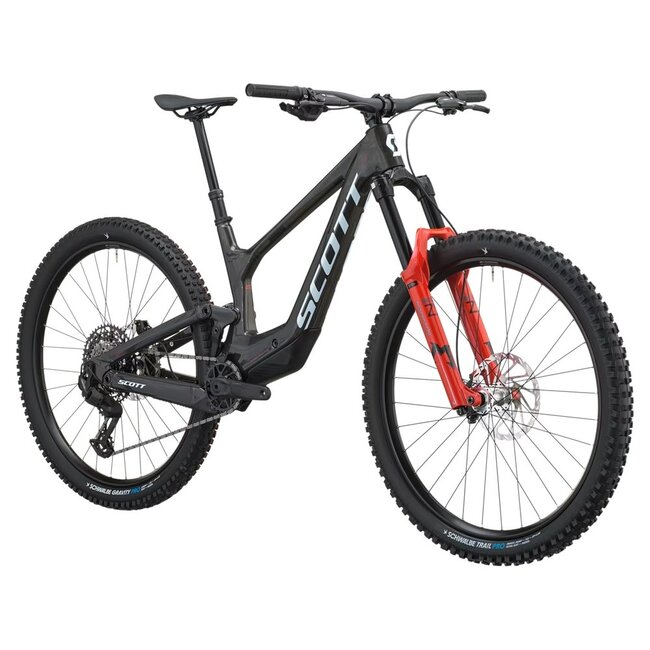

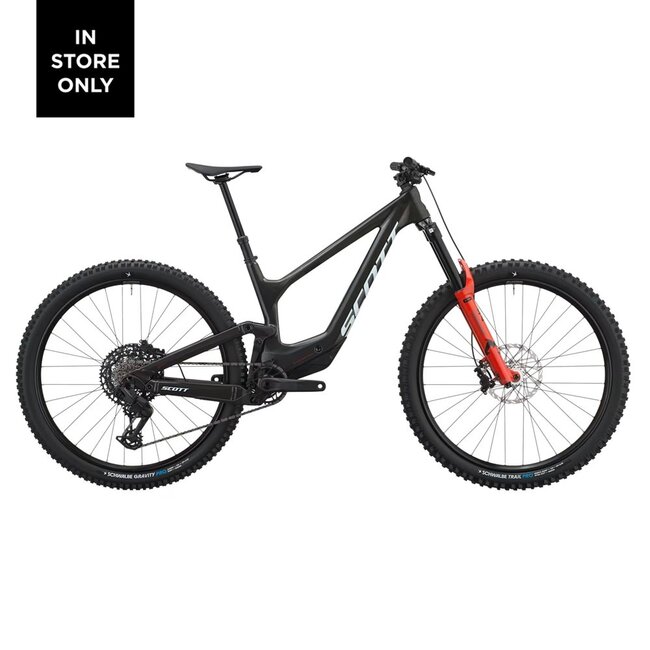

Introducing the SCOTT Ransom. Our latest version of Ransom was uncompromisingly engineered for maximum downhill performance and an all-time confidence inspiring ride. Killer geometry paired with a supernatural suspension kinematic result in a bike that doesn’t take “no” for an answer. Don’t hold yourself hostage, ride Ransom.
| Frame |

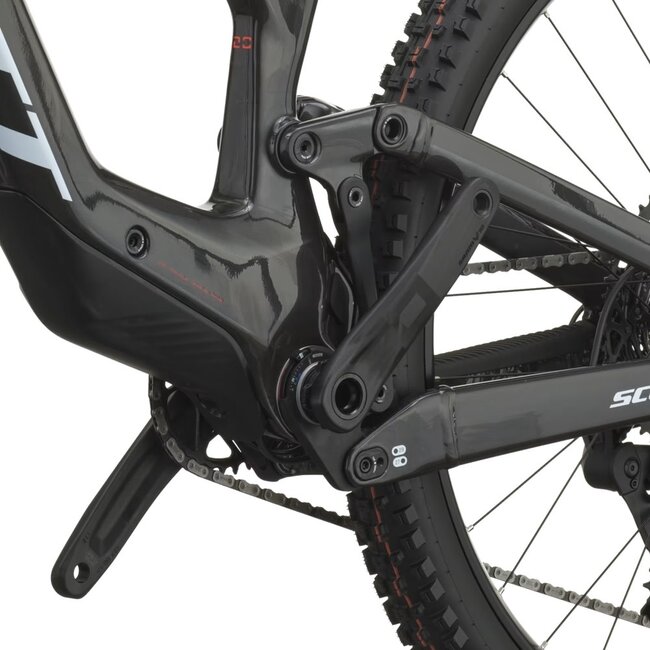

Ransom Carbon HMF Mainframe, alloy 6061 Rear End, 6 Link kinematic, Integrated Suspension Technology, head angle Adj, BB92, UDH interface, 12x148mm with 55mm chainline, MX ready
|
| Fork |

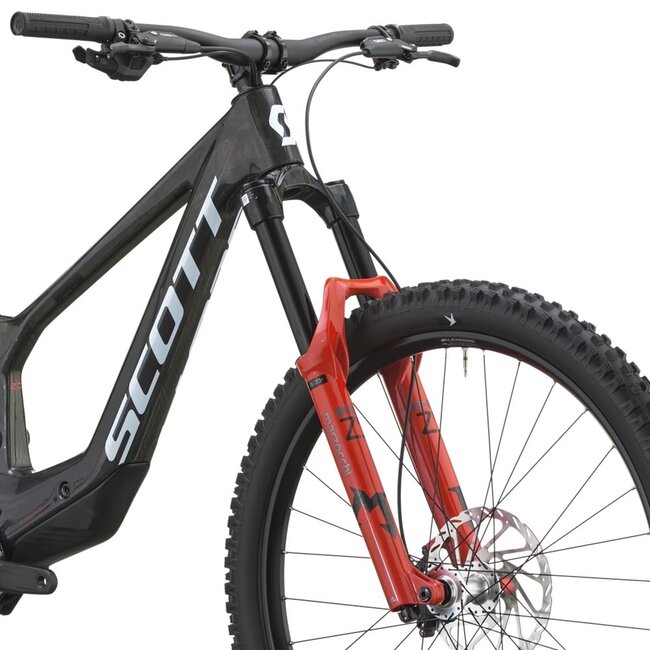

Marzocchi Z1, Rail 3 , Comp-Reb adj., 15x110mm, 44mm offset, tapered steerer
|
| Travel |
Front travel: 170 mm / Rear travel: 170 mm
|
| Rear Shock |
Marzocchi Bomber Air, SCOTT Ransom Custom Tuned, Comp-Reb adjust, 20x8mm Hardware, T205x65mm
|
| Headset |
Syncros - Acros angle adjust & cable routing HS system, stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
|
| Rear Derailleur |

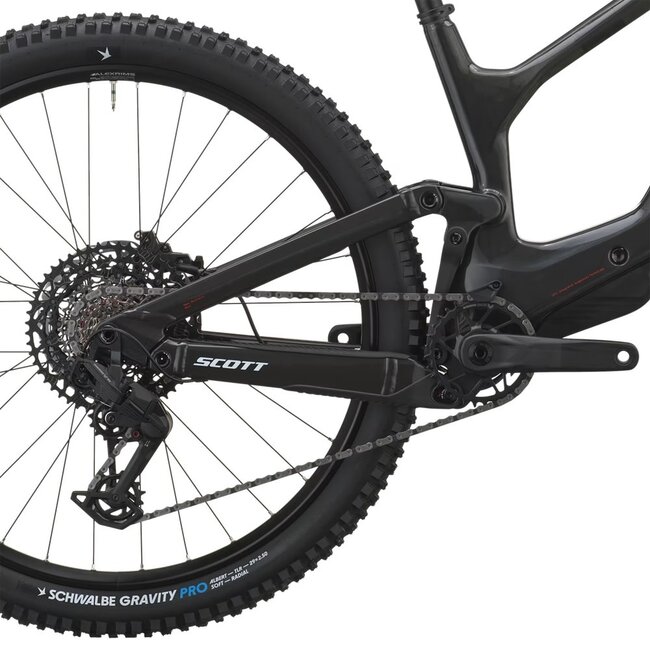

SRAM Eagle 70 Transmission, 12 Speed
|
| Shifters |
SRAM Eagle 70 Trigger
|
| Brakes |
SRAM DB8 4-Piston
|
| Crankset |
SRAM Eagle 70 Transmission, DUB, 55mm CL, 32T
|
| Front Disc Rotor |
SRAM G2CS 6B, 200mm
|
| Chainguide |
SCOTT custom
|
| Rear Disc Rotor |
SRAM G2CS 6B, 200mm
|
| BB-Set |
SRAM DUB PF 92 MTB, shell 41x92mm
|
| Handlebar |

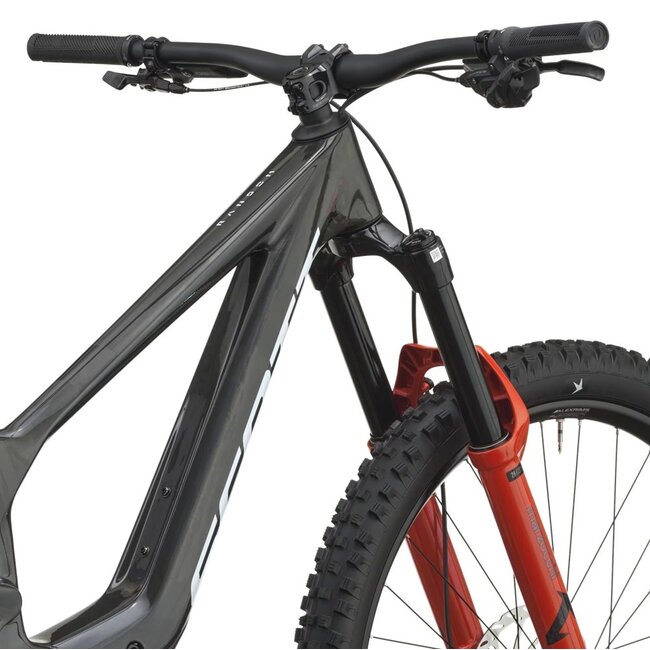

Syncros Hixon DH35 1.5
|
| H'stem |
Syncros CNC ST-M400-AL2 35mm
|
| Seatpost |
Syncros dropper post SP-M300-AL2, +RAD drop adjust, 31.6mm
|
| Seat |
Syncros Tofino R 2.0, CrMo Rails
|
| Front Hub |
Formula DC-611, 15x110mm
|
| Rear Hub |
Formula DC-3248, 148x12mm, 4 sealed bearings
|
| Chain |
SRAM Eagle 70 Transmission
|
| Cassette |
SRAM Eagle XS-1270 Transmission, 10-52T
|
| Spokes |
Stainless Black
|
| Front Rim |
Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
|
| Rear Rim |
Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
|
| Approx weight in KG |
16.57 Tubeless, without save the day kit
|
| Approx weight in LBS |
36.53 Tubeless, without save the day kit
|
| Grips |
Syncros Performance AM Lock-On
|
| Front Tire |
Schwalbe Magic Mary 29x2.5", Trail PRO, Radial, Ultra Soft, TLR, Foldable Bead
|
| Rear Tire |
Schwalbe Albert 29x2.5", Gravity, Radial, Ultra Soft, Tubeless ready, 120TPI Foldable Bead
|
| Max. System Weight |
130kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
|
