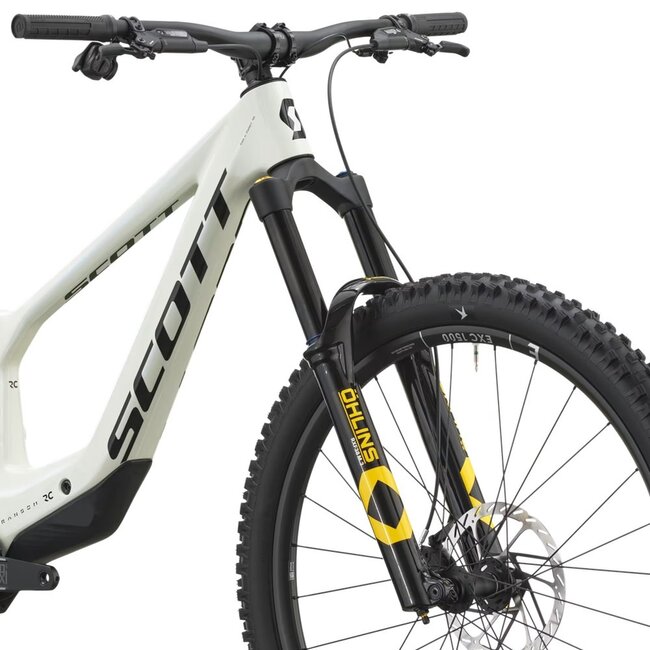

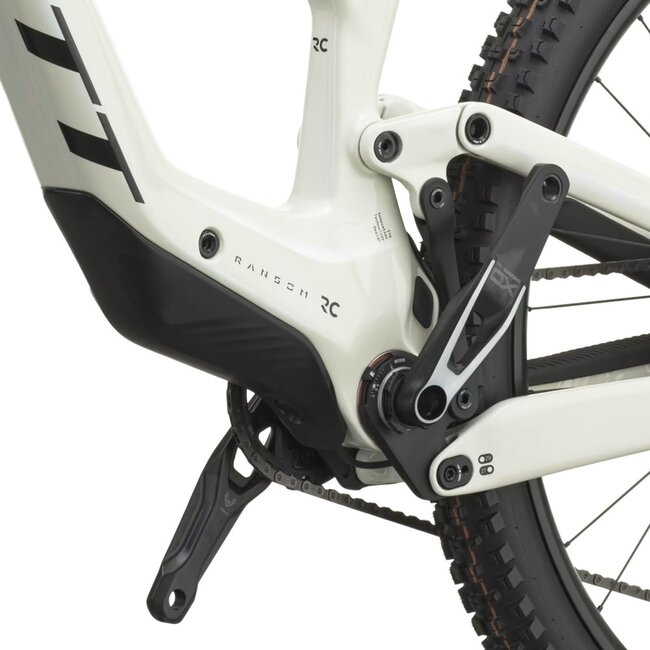

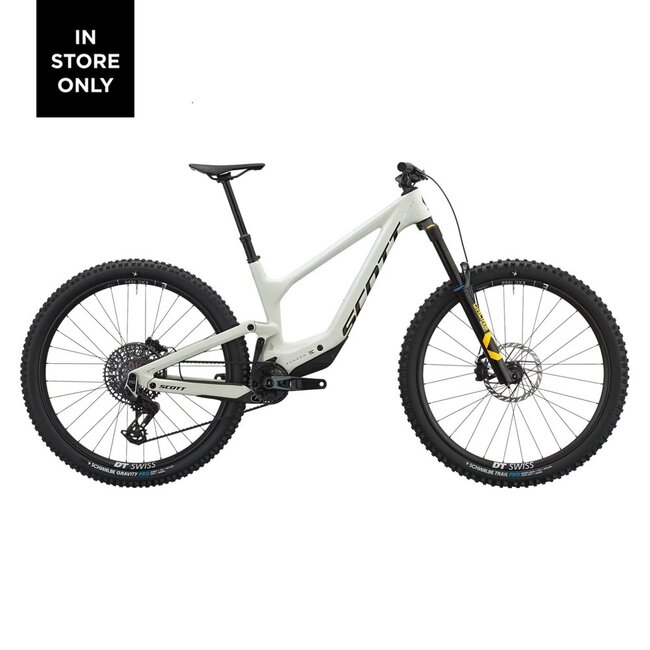

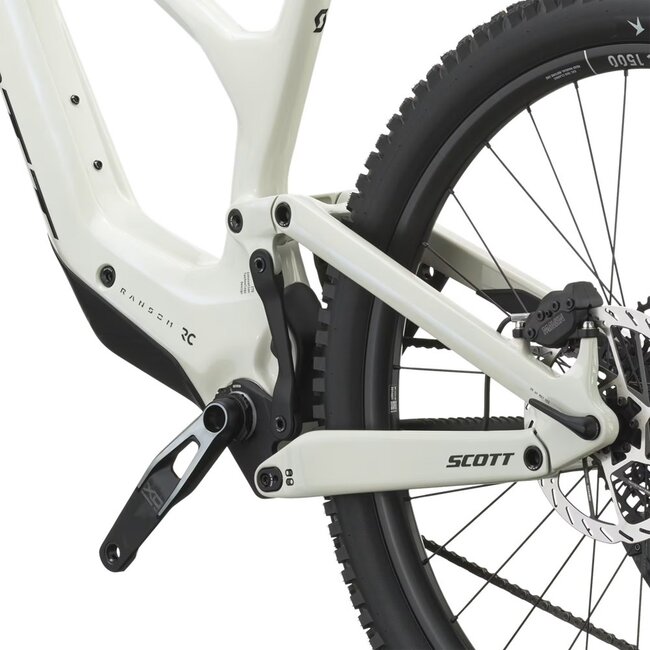

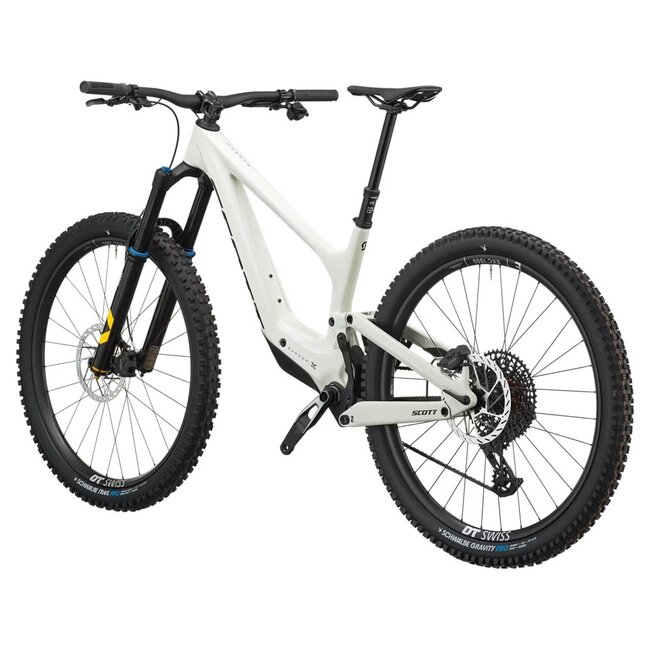

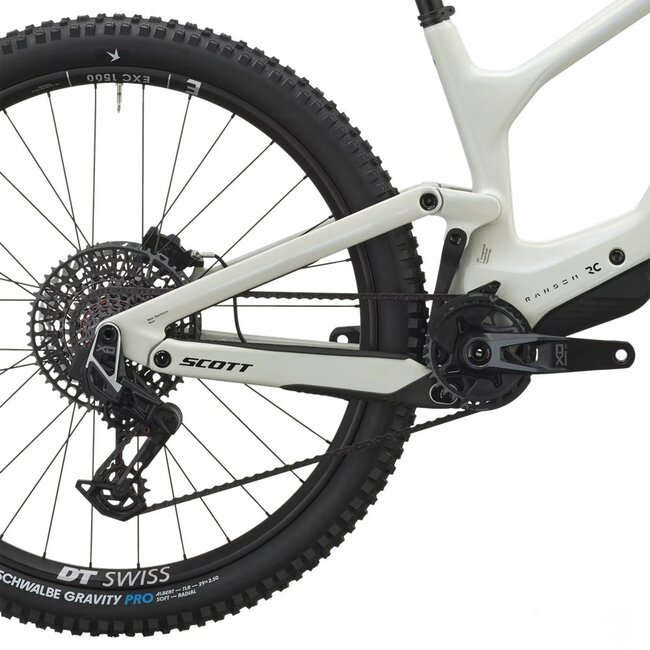

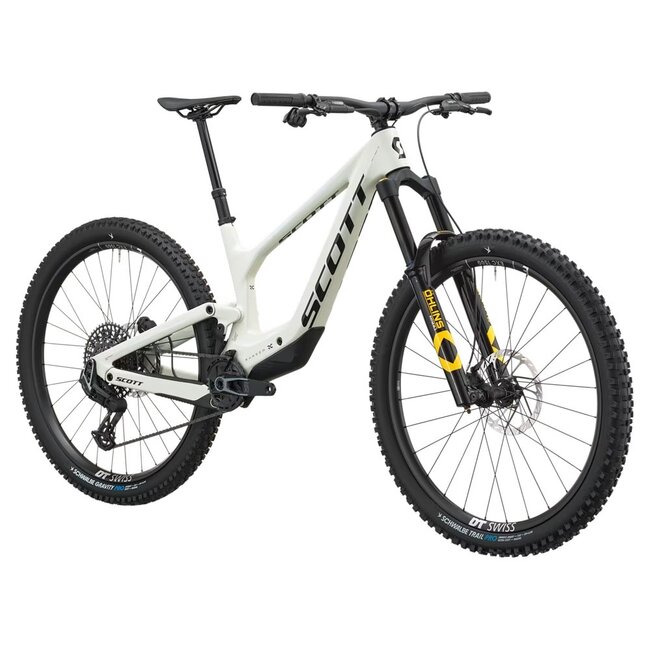

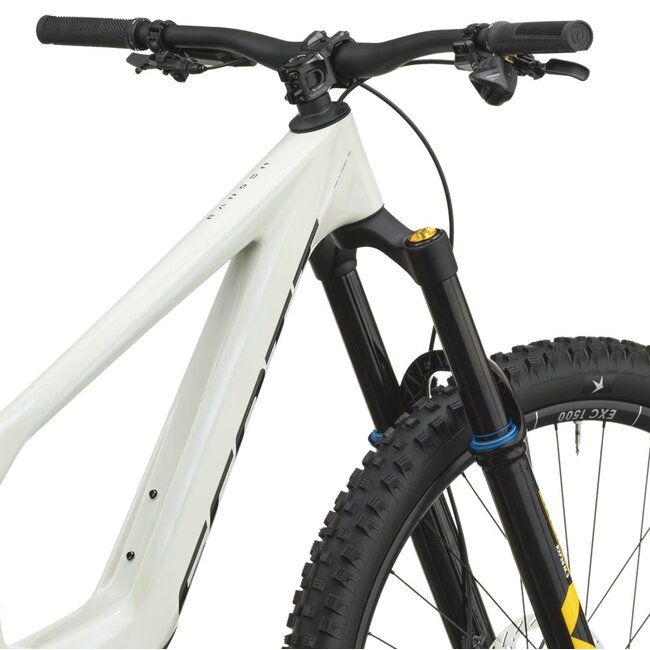

Introducing the SCOTT Ransom. Our latest version of Ransom was uncompromisingly engineered for maximum downhill performance and an all-time confidence inspiring ride. Killer geometry paired with a supernatural suspension kinematic result in a bike that doesn’t take “no” for an answer. Don’t hold yourself hostage, ride Ransom.
| Frame |
Ransom Carbon HMX Mainframe, 6 Link kinematic, Integrated Suspension Technology, head angle Adj, BB92, UDH interface, 12x148mm with 55mm chainline, MX ready
|
| Fork |
Öhlins RXF38 M.3 Air, TTX-Technology, HSC - LSC - R adjustable, 15x110mm Axle, tapered steerer
|
| Travel |
Front travel: 170 mm / Rear travel: 170 mm
|
| Rear Shock |
Öhlins TTX 22 M.2, HSC-LSC-R adj., SCOTT Ransom custom tune, hardware 20x8mm, T205x65mm
|
| Headset |
Syncros - Acros angle adjust & cable routing HS system, stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
|
| Rear Derailleur |
SRAM X0 Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System
|
| Shifters |
SRAM AXS Rocker Pod Controller
|
| Brakes |
SRAM Maven Silver 4-Piston
|
| Crankset |
SRAM X0 Eagle Transmission, DUB, 55mm CL, 32T
|
| Front Disc Rotor |
SRAM HS2 6B, 200mm
|
| Chainguide |
SCOTT custom
|
| Rear Disc Rotor |
SRAM HS2 6B, 200mm
|
| BB-Set |
SRAM DUB PF 92 MTB, shell 41x92mm
|
| Handlebar |
Syncros Hixon DH35 1.5
|
| H'stem |
Syncros CNC ST-M400-AL2 35mm
|
| Seatpost |
Syncros dropper post SP-M300-AL2, +RAD drop adjust, 31.6mm
|
| Seat |
Syncros Tofino R 1.5
|
| Chain |
SRAM X0 Eagle Transmission
|
| Wheelset |
DT Swiss EXC 1500 wheelset, EXC 240 DEG DF Hubs, EXC 330 Carbon Rims
|
| Cassette |
SRAM X0 Eagle XS-1295 Transmisson, 10-52T
|
| Approx weight in KG |
15.68 Tubeless, without save the day kit
|
| Approx weight in LBS |
34.57 Tubeless, without save the day kit
|
| Grips |
Syncros Performance AM Lock-On
|
| Front Tire |
Schwalbe Magic Mary 29x2.5", Trail PRO, Radial, Ultra Soft, TLR, Foldable Bead
|
| Rear Tire |
Schwalbe Albert 29x2.5", Gravity, Radial, Ultra Soft, Tubeless ready, 120TPI Foldable Bead
|
| Max. System Weight |
130kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
|
