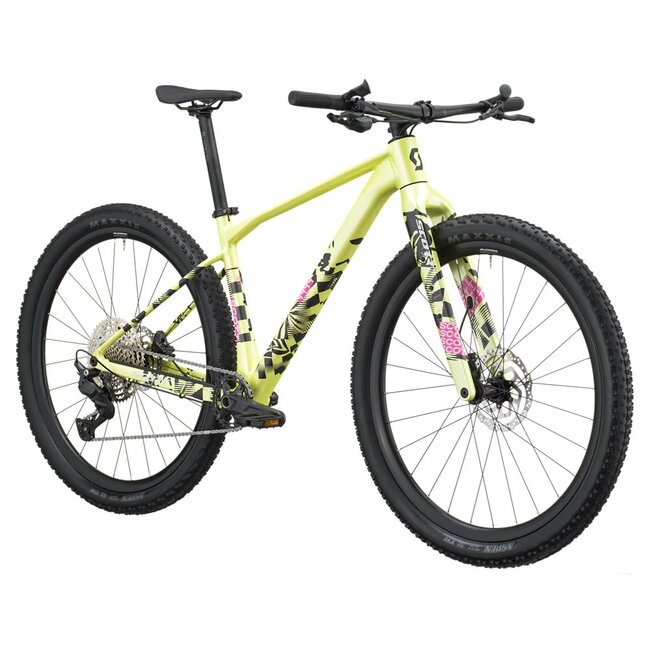

The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
| Frame |
Scale Alloy 6061 Custom Butted Tubing, Tapered Headtube, BB92, UDH interface, Boost 12x148mm with 55mm chainline
|
| Fork |
Scale Rigid HMF, postmount disc standard, tapered carbon steerer
|
| Headset |
Cable Routing Headset ZS56/28.6 – ZS56/40
|
| Rear Derailleur |
Shimano Deore RD-M7200 12-speed
|
| Shifters |
Shimano Deore SL-M6200
|
| Brakes |
Shimano BR-MT401 2-Piston
|
| Crankset |
Shimano FC-MT520, 34T
|
| Front Disc Rotor |
Shimano SM-RT10 CL, 180mm
|
| Rear Disc Rotor |
Shimano SM-RT10 CL, 160mm
|
| BB-Set |
Shimano BB-MT500 PF
|
| Handlebar |
Syncros Alloy 6061, T shape Flat, 9°, 740mm
|
| H'stem |
Syncros Alloy 6061, oversized 31.8mm, 1 1/8", 6° angle
|
| Pedals |
Feimin FP-873ZU
|
| Seatpost |
Syncros alloy, 10mm offset, 31.6x400mm
|
| Seat |
Syncros Celista Cut Out
|
| Front Hub |
Formula CL-811, 15x110mm
|
| Rear Hub |
Formula FCL-548M, 148x12mm, Micro Spline
|
| Chain |
Shimano CN-M6100
|
| Cassette |
Shimano Deore CS-M6200, 10-51T
|
| Spokes |
Stainless Black
|
| Front Rim |
Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready
|
| Rear Rim |
Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready
|
| Extras |
Spirgrips Inner Bar ends
|
| Approx weight in KG |
11.7 without pedals
|
| Approx weight in LBS |
25.79 without pedals
|
| Grips |
Syncros Performance XC
|
| Front Tire |
Maxxis Aspen 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO
|
| Rear Tire |
Maxxis Aspen 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO
|
| Max. System Weight |
130kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
|
