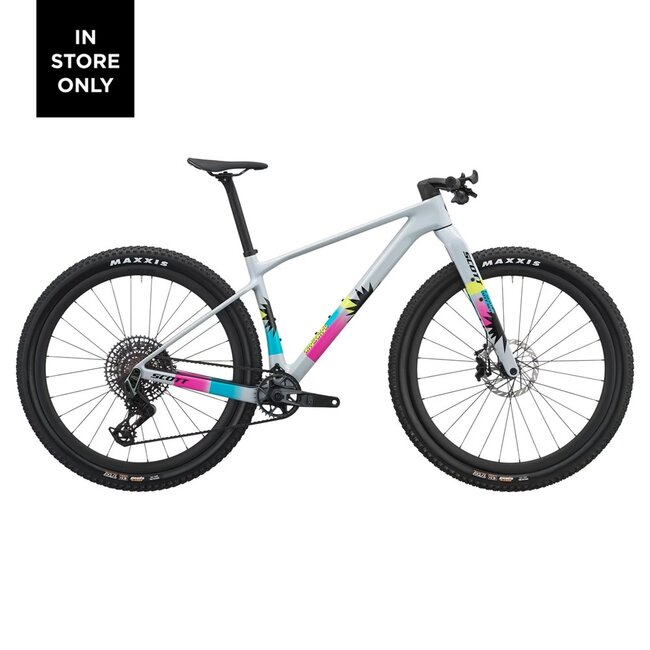

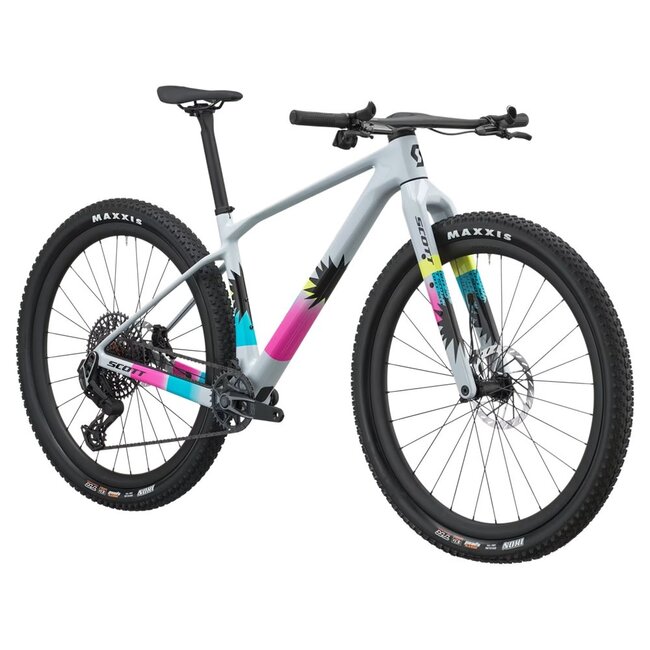

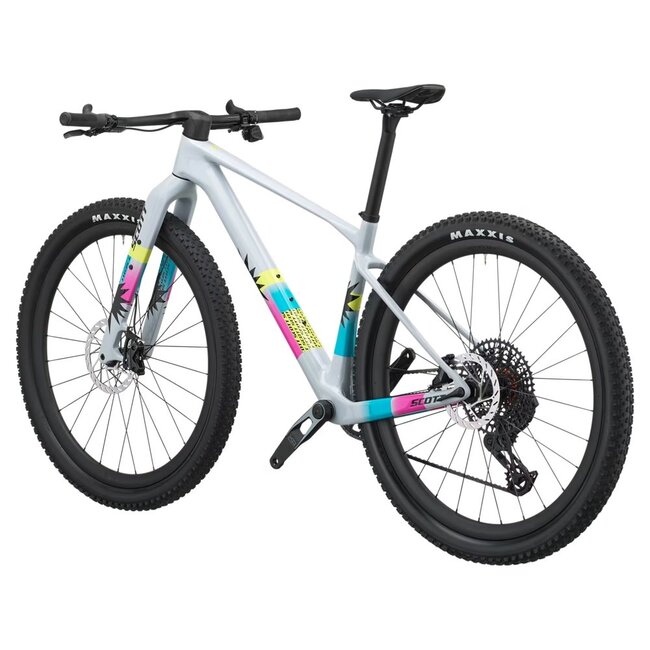

The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
| Frame |
Scale HMF Carbon, adjustable head angle, Syncros Cable Integration System, advanced shock & standing damping system, BB92, UDH interface, 12x148mm with 55mm chainline
|

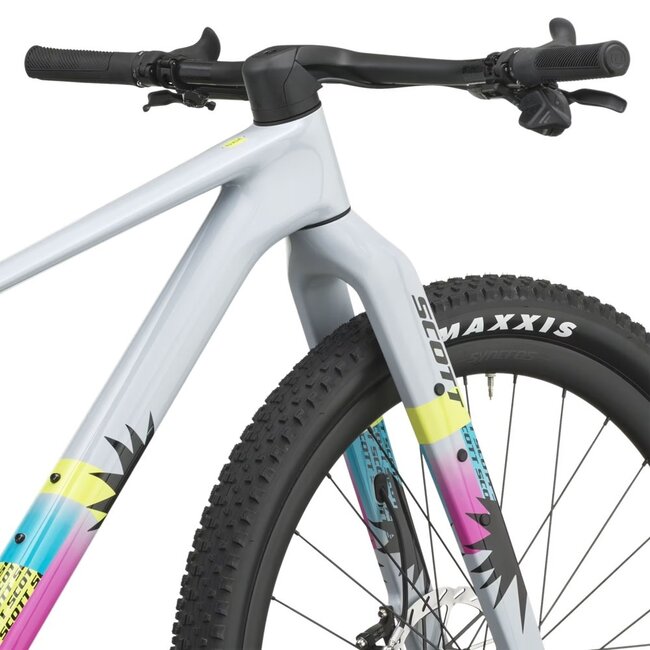

| Fork |
Scale Rigid HMF, postmount disc standard, tapered carbon steerer
|
| Headset |
Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
|

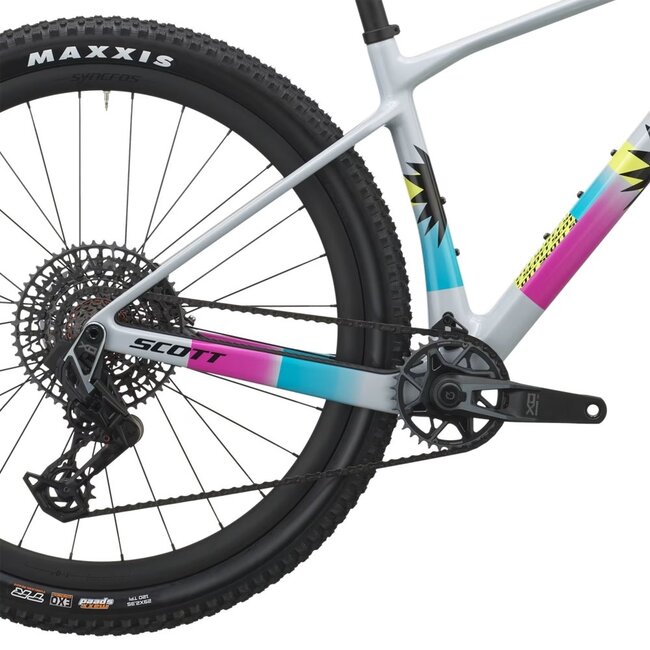

| Rear Derailleur |
SRAM X0 Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System
|
| Shifters |
SRAM AXS Rocker Pod Controller
|
| Brakes |
SRAM Motive Silver 4-Piston
|

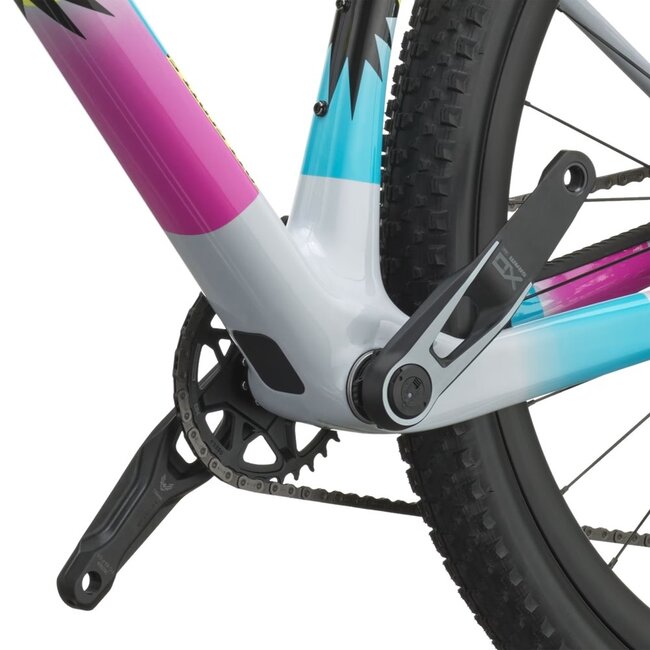

| Crankset |
SRAM X0 Eagle Transmission, Spindle Powermeter, DUB, 55mm CL, 34T
|
| Front Disc Rotor |
SRAM HS2 CL, 180mm
|
| Chainguide |
SCOTT custom
|
| Rear Disc Rotor |
SRAM HS2 CL, 160mm
|
| BB-Set |
SRAM DUB PF 92 MTB Wide, shell 41x92mm
|

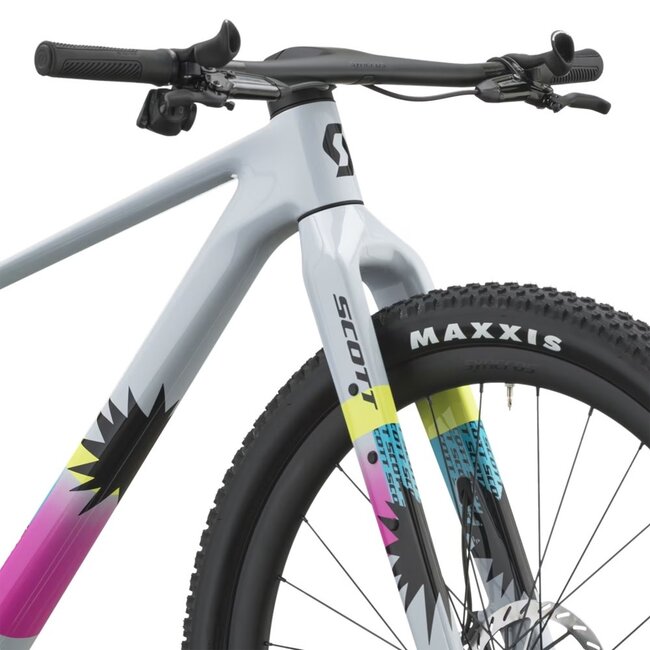

| Handlebar |
Syncros Fraser iC SL XC Carbon, -20° rise, back sweep 8°, 740mm
|
| Seatpost |
Syncros Carbon, 10mm offset, 31.6x400mm
|
| Seat |
Syncros Celista Cut Out, Carbon Rails
|
| Chain |
SRAM X0 Eagle Transmission
|
| Wheelset |
Syncros Silverton 1.0X CL, F: 15x110mm, R: 12x148mm, Tubeless ready Carbon rim 28H, XD Driver
|
| Cassette |
SRAM X0 Eagle XS-1295 Transmisson, 10-52T
|
| Extras |
Spirgrips Inner Bar ends, SRAM AXS powerpack
|
| Accessories |
Milkit sealant
|
| Approx weight in KG |
9 Tubeless
|
| Approx weight in LBS |
19.84 Tubeless
|
| Grips |
Syncros Performance XC Lock-On
|
| Front Tire |
Maxxis Rekon Race 29x2.4”, 60TPI Foldable, Tubeless Ready, EXO
|
| Rear Tire |
Maxxis Rekon Race 29x2.4”, 60TPI Foldable, Tubeless Ready, EXO
|
| Max. System Weight |
130kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
|
