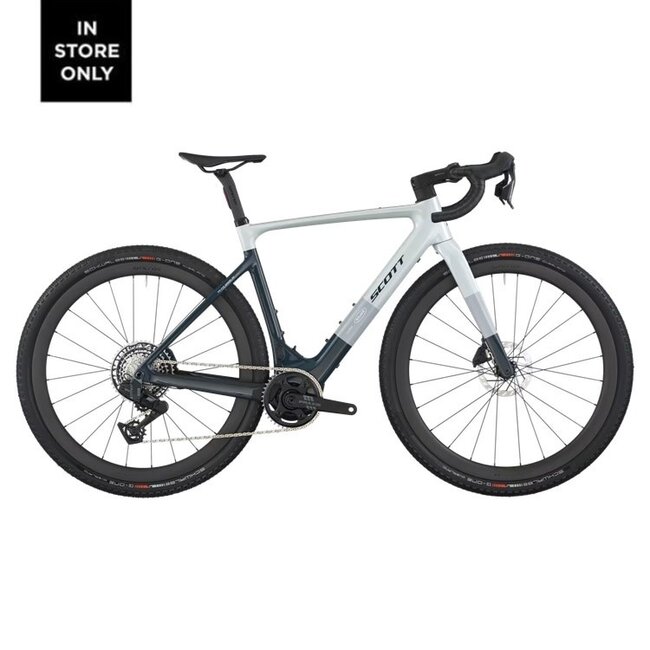

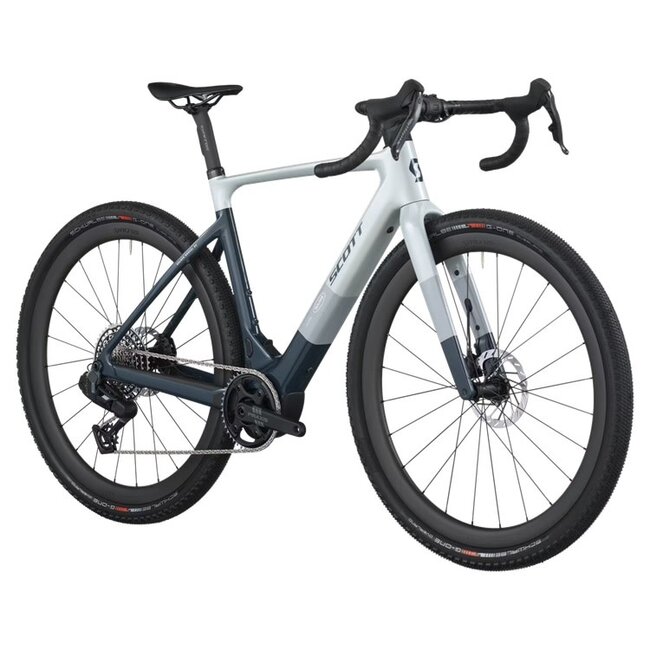

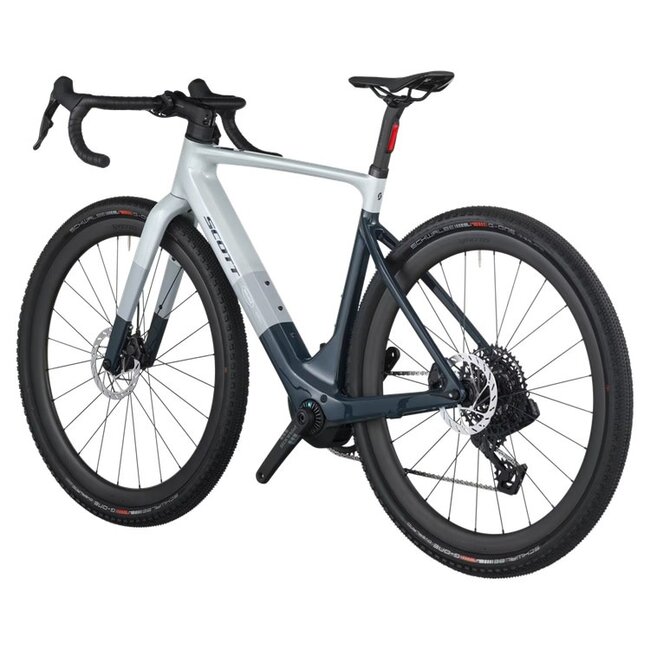

The Solace Gravel 20 E-Bike is an all-rounder that can handle anything you throw at it. Its confidence-inspiring geometry and endurance-focused riding position make it a great choice for exploring every gravel frontier. With its lightweight carbon frame, generous tire clearance, and updated TQ HPR60 motor unit, the e-bike is stronger, more confident, and more efficient than ever.
Power is boosted compared to its predecessor, now with 60Nm of torque that allows you to conquer even the steepest inclines with ease and stamina. It’s the grunt you’ll need to monster over mountains and the support your legs will ask for after a long day in the saddle.
We built this Solace with SRAM’s Rival XLPR AXS groupset and Syncros Capital 1.0 40e wheels on 50mm Schwalbe G-One Overland tires, making it a setup that’s built for gravel excellence without the top-tier price tag.
Please note that bike specifications are subject to change without prior notice.
Â
Key Features
- HMX Carbon frame
- TQ HPR60 engine system, 360Wh battery
- SRAM RIVAL XPLR AXS drivetrain
- SRAM RIVAL AXS HRD brakes
- Syncros Capital 1.0 40 wheelset
- Schwalbe G-One Overland PRO Evo tires
- Syncros carbon/alloy components
- Syncros Campbell iL rear light
-
Frame
Solace eRIDE Disc HMX, ride geometry, Syncros Cable Integration System, TQ HPR60, UDH Interface, Range Extender Ready
-
Fork
Solace eRIDE HMF Flatmount Disc, 1 1/4"-1 1/2" Eccentric Carbon steerer
-
Drive Unit

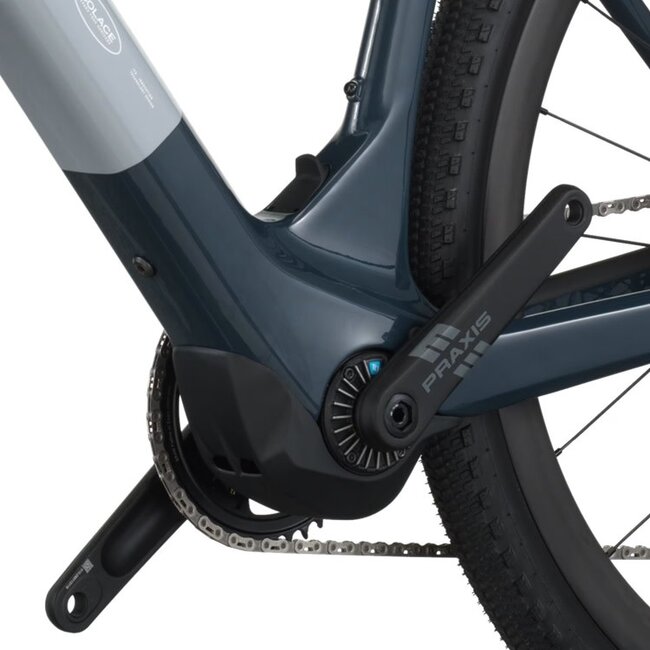

TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh - INT: 20mph - US: 28mph
-
Battery
TQ Internal 360Wh
-
Display
TQ HPR, Bluetooth, ANT+, Dedicated Smartphone app
-
Charger
TQ 4A 100-240V
-
Rear Derailleur
SRAM RIVAL XPLR AXS, 13 Speed, Electronic Shift System
-
Crankset
Praxis TQ Alloy
-
Chainring
SRAM X-Sync 42T
-
Chain
SRAM RIVAL
-
Cassette
SRAM RIVAL XPLR XG1351, 10-46T
-
Brakes
SRAM RIVAL AXS HRD Shift-Brake System
-
Front Disc Rotor
SRAM HS2 CL, 160mm
-
Rear Disc Rotor
SRAM HS2 CL, 160mm
-
Grips
Syncros RC Bartape
-
Handlebar
Syncros Creston 1.0 X, Carbon 31.8mm
-
H'stem
Syncros RR2.0, 1 1/4", four Bolt 31.8mm
-
Seatpost
Syncros Duncan 1.0 iL D-shape
-
Seat
Syncros Tofino R 2.0 Cut-out
-
Headset
Acros AIF-1134
-
Wheelset
Syncros Capital 1.0 40 Disc, 24 Front, 24 Rear, Syncros Axle
-
Front Tire
Schwalbe G-One Overland PRO Evo, 700x50C
-
Rear Tire
Schwalbe G-One Overland PRO Evo, 700x50C
-
Approx weight in KG
13.8
-
Approx weight in LBS
30.42
-
Max. System Weight
120kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
