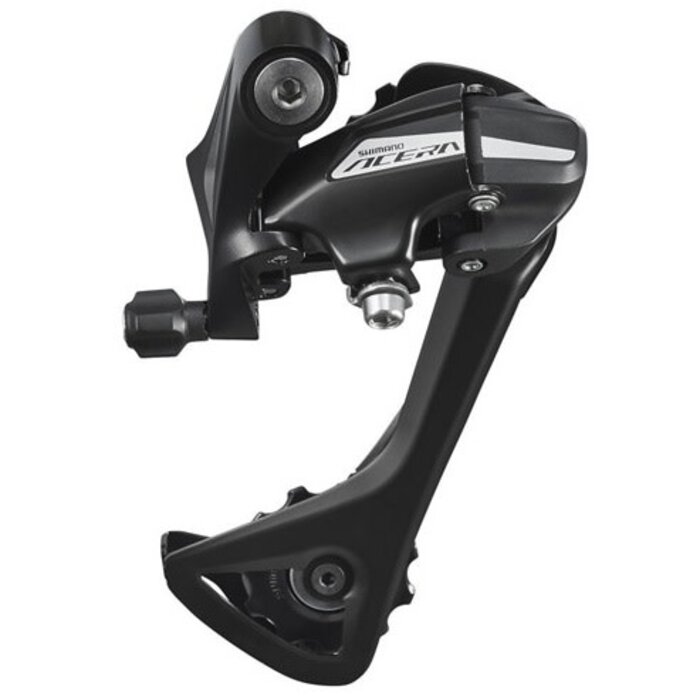

SHIMANO ACERA RD-M3020 7/8 SPEED REAR DERAILLEUR
Reliable Performance for Everyday Riding.
The Shimano Acera RD-M3020 is a robust and versatile rear derailleur designed for 7 or 8-speed drivetrains. It serves as a dependable workhorse for mountain bikes, hybrids, and trekking bikes, offering a "set it and forget it" level of reliability that Shimano’s Acera group is known for.
By utilizing Shimano's Double Servo technology, the derailleur moves in an optimized path, keeping the guide pulley close to the cassette teeth throughout the shift. This results in smooth, precise gear changes and helps reduce wear on your chain and cassette over time.
Key Features
Double Servo Design: Ensures the guide pulley stays at a consistent distance from each cog for faster and more accurate shifting.
Wide Compatibility: Fully compatible with both 7-speed and 8-speed Shimano mountain bike and hybrid shifters.
Large Capacity: Designed to handle wide-range cassettes, making it an excellent choice for bikes used on hilly terrain or for loaded commuting.
Durable Construction: Built with a mix of steel and resin components to provide a balance of impact resistance and weight management.
Easy Adjustment: Features large, accessible B-tension and limit screws, making it one of the easiest derailleurs for home mechanics to index and tune.
Technical Specifications
| Feature | Specification |
| Speed | 7/8-Speed |
| Mount Type | Direct Attachment (Standard) |
| Maximum Low Sprocket | 40T |
| Minimum Low Sprocket | 30T |
| Top Sprocket Max/Min | 12T / 11T |
| Total Capacity | 45T |
✅ Why This IS For You
Daily Commuters: If you need a budget-friendly replacement that can handle the grit and grime of daily riding without needing constant attention.
Hybrid & Entry MTB Riders: Perfect for those with an older 7 or 8-speed bike looking to restore crisp shifting performance without upgrading the entire groupset.
Mixed Terrain Cyclists: The 40T max low sprocket support is a huge benefit if you’ve installed a "climbing" cassette to help get up steep local hills.
❌ Why This May NOT be for you
Modern 1x Drivetrains: This is strictly for 7/8-speed systems. It will not work with 10, 11, or 12-speed shifters due to different cable pull ratios.
Aggressive Trail Riding: For rougher mountain bike trails, the Shimano Deore with a "Shadow" clutch mechanism provides better chain retention and less noise.
Weight Weenies: As an entry-to-mid-level alloy and steel component, it is built for durability over lightness.
BFC Pro Tip
The RD-M3020 is a "Top Normal" derailleur, meaning it defaults to the smallest cog when there is no cable tension. When installing, ensure your housing loops are clean and have smooth bends; because this doesn't have the "Shadow" low-profile design, it sticks out slightly further from the frame, making it more sensitive to cable friction. A fresh stainless steel shift cable paired with this derailleur will make your old bike feel like new.
