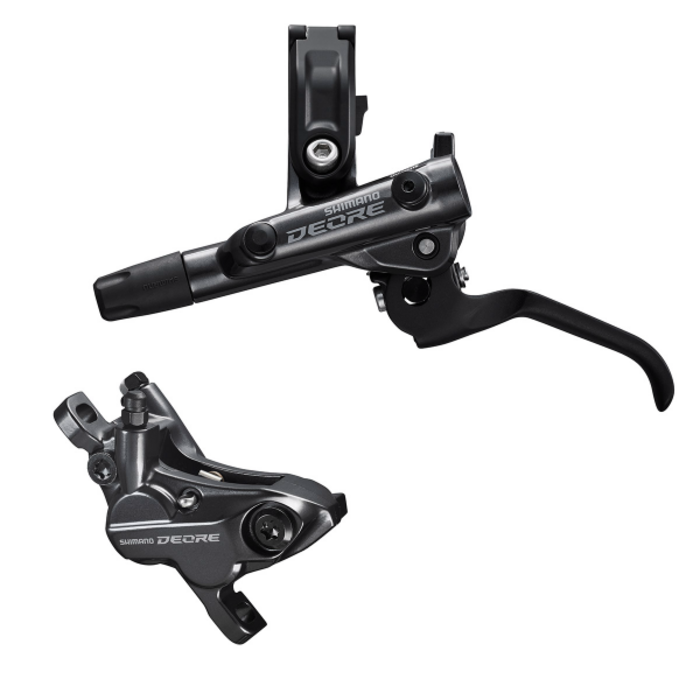

Engineered to bring high-end braking authority to a accessible price point, the Shimano Deore BR-M6120 features a robust four-piston caliper layout that significantly increases stopping power over standard 2-piston designs. Incorporating dual-diameter opposed pistons, the caliper engages the rotor smoothly to minimize pad chatter, stabilize power transfer, and deliver exceptional modulation through technical switchbacks and steep descents.
The accompanying BL-M6100 brake lever features an inboard handlebar clamp design, creating a secondary support contact point against the bar to drastically reduce flex under hard lever pulls. Powered by Shimano’s proven SERVOWAVE technology, pad engagement happens rapidly with minimal initial movement, leaving ample lever stroke for precise power modulation. The brake also utilizes One Way Bleeding for hassle-free maintenance and offers I-SPEC EV mounting integration to clean up your handlebar cockpit.
Four-Piston Opposed Caliper: Delivers superior stopping force, reduced rotor noise, and stable power for aggressive trail, enduro, and e-MTB riding.
SERVOWAVE Action Lever: Facilitates fast pad engagement and fine-tuned modulation with a shorter initial free stroke.
Rigid Lever Support Clamp: Additional contact point against the handlebar minimizes lever flex during hard emergency braking.
I-SPEC EV Compatibility: Allows direct mounting of compatible shifters and dropper remote levers for a tidy cockpit setup.
One Way Bleeding: Features an optimized fluid routing path to prevent air bubble trapping and simplify system maintenance.
Caliper Material / Pistons: Painted Aluminium / 4 Pistons
Fluid Type: Shimano Mineral Oil
Compatible Pads: Resin (D03S) or Metal (D02S) 4-piston pads
Mounting Type: Post-Mount
✅ Trail & Enduro Riders: You demand powerful, predictable 4-piston stopping force for steep downhill runs and technical terrain without breaking the bank.
✅ E-Bike Owners: You need enhanced braking power and heat dissipation to manage the extra mass of electric mountain bikes.
✅ Clean Cockpit Seekers: You want direct-mount I-SPEC EV shifter integration and tool-accessible reach adjustment for an organized handlebar setup.
❌ XC Gram-Counters: You prioritize absolute minimum component weight over peak stopping power and would be better served by the 2-piston Deore M6100 brake.
❌ Tool-Free Adjusters: You want tool-free lever reach adjustment on the fly, which is reserved for the higher-tier SLX and XT series levers.
❌ Road or Commuter Bikes: You ride light paved paths or gravel roads where standard 2-piston hydraulic brakes provide more than enough stopping force.
If you're installing this brake through internal frame routing using Shimano's J-Kit pre-bled system, leave the small rubber cap on the hose barb while fishing it through the frame. This keeps internal fluid sealed and prevents dirt or debris from entering the line. Once connected to the lever, perform a quick 5-minute lever bleed with a Shimano funnel and mineral oil—this routinely purges any tiny surface bubbles and ensures a firm, immediate lever bite!
