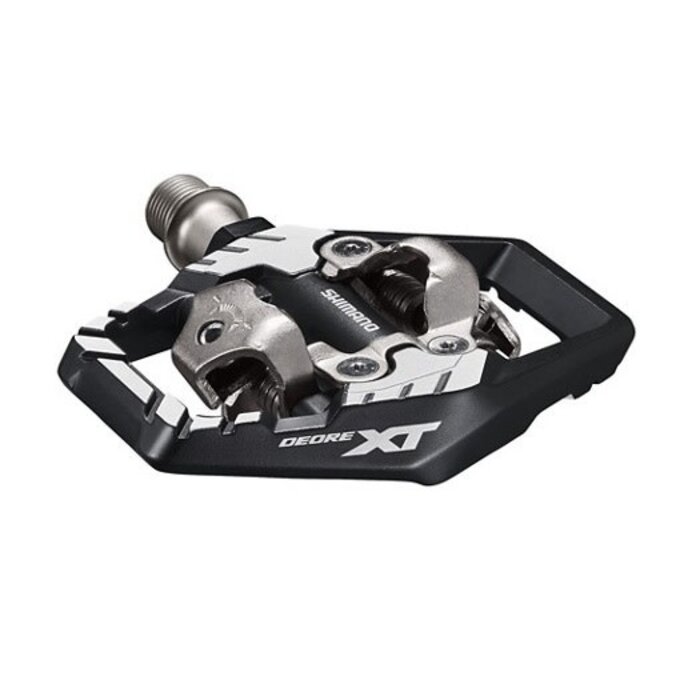

SHIMANO M8120 XT TRAIL PEDAL
The Gold Standard for Enduro & Trail Control.
The Shimano XT PD-M8120 is the go-to choice for aggressive trail and enduro riders who demand a larger contact patch and more protection than a standard XC pedal. Built with an integrated cage, the M8120 provides a stable platform that supports your shoe even when you aren't perfectly clipped in, while simultaneously shielding the SPD binding mechanism from rock strikes and trail debris.
Engineered with a lower stack height and an extra-wide pedal-to-shoe contact area, these pedals ensure maximum power transfer and stability during high-speed cornering and technical descents.With the legendary reliability of the XT group, these pedals feature a chrome-moly spindle and a sealed cartridge bearing system that can withstand seasons of abuse in the harshest conditions.
Key Features
Integrated Trail Cage: Provides a larger platform for better bike control when unclipped and acts as a protective shield against impacts.
Wide Contact Area: An expanded rearward shoe-pedal contact patch improves stability, especially when paired with modern, sneaker-style enduro shoes.
Lower Stack Height: At just 16.2mm, the low profile improves pedaling stability and efficiency by keeping your foot closer to the axle center.
Adjustable Entry & Release: Features a robust retention claw with a customizable tension screw, allowing you to dial in exactly how much force is needed to clip out.
Mud-Shedding Design: The offset binding and oval axle body housing are engineered to clear mud and debris instantly for reliable engagement in all weather.
Chrome-Moly Spindle: A high-strength, durable axle that mounts with an 8mm hex wrench, supported by low-maintenance sealed cartridge bearings.
Technical Specifications
| Feature | Specification |
| Model Number | PD-M8120 |
| Series | DEORE XT M8100 |
| Pedal Type | SPD (Dual Sided) |
| Stack Height | 16.2 mm |
| Weight | ~438 g (Pair) |
| Cleats Included | SM-SH51 |
| Axle Material | Chromoly Steel |
| Body Material | Anodized Aluminum |
✅ Why This IS For You
Aggressive Trail & Enduro Riders: If you frequently ride technical, rocky terrain where protecting your equipment and having a stable platform is non-negotiable.
Riders Using Enduro Shoes: Specifically fine-tuned to work with the wider outsoles of shoes like the Shimano ME or AM series.
Reliability Seekers: Perfect for those who want a "set and forget" pedal that can handle thousands of kilometers with minimal maintenance.
❌ Why This May NOT be for you
XC Race Purists: If you are chasing the lowest weight possible for cross-country racing, the cage-less Shimano XT M8100 saves roughly 96g per pair.
Flat Pedal Fans: While the cage provides support, this is still a dedicated clipless pedal; for a true flat experience, you'll want the Shimano XT M8140.
BFC Pro Tip
The M8120 now comes with a 1.0mm cleat spacer in the box. Don't throw this away! Many modern enduro shoes have deep cleat pockets to make walking easier, but this can sometimes make clipping in feel "mushy." Installing that spacer under your cleat will bring the shoe sole into perfect contact with the pedal cage, giving you that rock-solid lateral support that XT is famous for.
