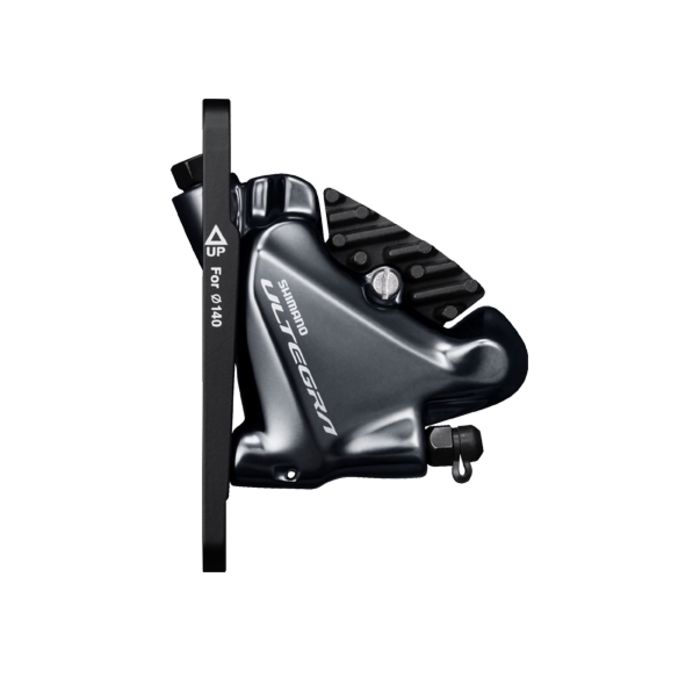

With a low-profile Flat Mount design, the SHIMANO ULTEGRA R8000 series hydraulic disc brakes provide greater control in all conditions without interrupting the aero lines of road bikes.
| MODEL NO | BR-R8070-F |
|---|---|
| SERIES | ULTEGRA R8000 Series |
| Color | Series color |
| Average weight | 141 |
| Brake type | Hydraulic disc brake |
|---|---|
| Brake hose (kit) | SM-BH90-JK-SSR, SM-BH90-J-SSR |
| Hose joint | Straight |
| Brake hose color (kit)|1 | Black |
| J-Kit spec (for OEM) | ✔ |
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
| Pad|Standard 1 | K05S-RX Resin (w/o fin) |
| Pad|Standard 2 | L05A-RF Resin (w/ fin) |
| Pad|Option 1 | K04S-MX Metal (w/o fin) |
| Pad|Option 2 | L04C-MF Metal (w/ fin) |
| Recommended brake lever | ST-R8070 ST-R8020 |
| Recommended disc brake rotor | SM-RT800 |
| Oil | SHIMANO mineral |
| ONE WAY BLEEDING | ✔ |
| Mount type | Flat mount |
| Piston | 2 |
| Caliper fixing screw|Tool size | 4 mm |
| Caliper fixing screw|Anti loosen method | Screw fix pin+Snap ring |
| Pad mount | Pad axle |
