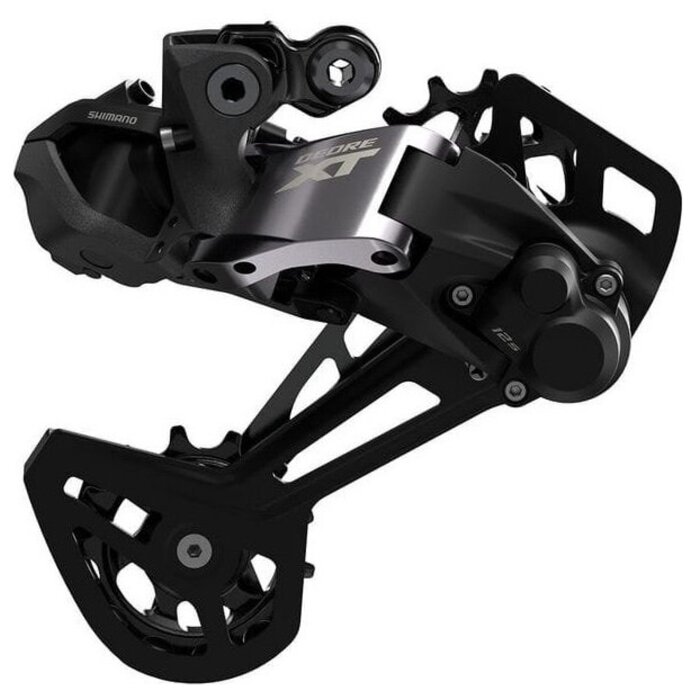

SHIMANO XT RD-M8150 SGS REAR DERAILLEUR (51T MAX)
The Shimano XT RD-M8150-12 is the definitive electronic rear derailleur for 12-speed mountain bike drivetrains. Engineered specifically for integration with Shimano’s EP801 and EP6 e-bike systems, this SGS (long cage) model provides the massive range needed for technical climbing while introducing "intelligent" shifting features like FREE SHIFT and AUTO SHIFT.
Compatibility Check: This is the 12-speed specific version (RD-M8150-12) designed to work with a 10-51T cassette. It is distinct from the 11-speed Linkglide version (RD-M8150-11).
Key Performance Features
51T Max Capacity: Specifically designed to clear the massive 51-tooth cog of Shimano's 12-speed HYPERGLIDE+ cassettes, providing a 510% gear range.
FREE SHIFT Integration: Allows the derailleur to shift while you are coasting (no pedaling required) by working in tandem with the e-bike motor to rotate the chain.
AUTO SHIFT Capability: Can automatically select the optimal gear based on torque, speed, and cadence, ensuring you are never caught in the wrong gear on steep transitions.
HYPERGLIDE+ Technology: Optimized for smooth, fast shifting even under the high-torque loads of an e-bike motor at full assistance.
Shadow RD+ Clutch: Features an adjustable chain stabilizer that prevents chain slap and drops, keeping the drivetrain silent and secure on rough descents.
E-TUBE Wired Power: Draws power directly from the e-bike’s main battery, eliminating the need for a separate derailleur battery and ensuring consistent shifting performance.
Technical Specifications
| Feature | Specification |
| Series | DEORE XT M8150 |
| Speed | 12-Speed |
| Cage Length | SGS (Long Cage) |
| Max Low Sprocket | 51T |
| Min Low Sprocket | 45T |
| System Compatibility | Shimano EP801 / EP6 Drive Units |
| Communication | Wired Di2 (E-TUBE) |
Why This IS For You
✅ Modern E-MTB Riders: If you have a 12-speed Shimano-powered e-bike and want the most advanced electronic shifting logic available.
✅ Steep Terrain Specialists: The 51T capacity ensures you have the "granny gear" necessary for the steepest, most technical winch-climbs.
✅ Precision & Durability: Delivers the legendary XT balance of high-end performance and the physical toughness to survive trail strikes.
Why This May NOT Be For You
❌ Mechanical Systems: This is a dedicated Di2 electronic component; it will not function with a standard cable-actuated shifter.
❌ 11-Speed Linkglide Users: If your bike is setup with an 11-speed Linkglide system, you require the RD-M8150-11 instead; the pull ratios and spacing are different.
BFC Pro Tip
Because this derailleur is wired directly into your e-bike system, it’s a good idea to periodically check the E-TUBE Project app for firmware updates. Shimano often releases "tuning" updates for AUTO SHIFT that improve how the derailleur reacts to sudden changes in incline. Also, if you ever take a hard spill, the RD-M8150 features a "saver" function—if it stops shifting, it may have gone into protection mode to prevent motor damage. Simply reset it through the system settings and you’re usually good to go!
