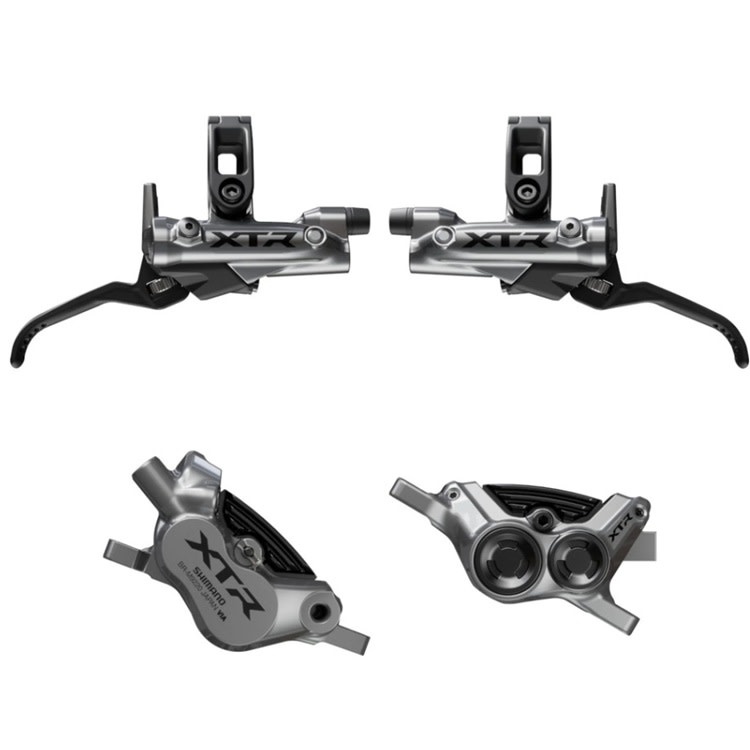

The Shimano XTR BR-M9120 represents the pinnacle of mountain bike braking performance, specifically engineered for the rigors of Enduro and aggressive Trail riding. This 4-piston hydraulic system provides a massive increase in stopping power and thermal stability compared to XC models, giving you the confidence to push deeper into corners and maintain control on the steepest descents.
High-Power 4-Piston Caliper: Features four ceramic pistons that provide significantly higher clamping force and more linear modulation than standard 2-piston setups.
ICE TECHNOLOGIES FREEZA Compatibility: Engineered to work with advanced finned rotors and pads to reduce heat buildup by up to 100°C, ensuring consistent braking feel on long alpine descents.
I-SPEC EV Integration: The lever offers a wider adjustment range and an additional contact point against the handlebar, significantly increasing stiffness for a more direct and snappy brake feel.
Tool-Less Reach & Free Stroke Adjust: Allows for instantaneous fine-tuning of the lever position and bite point to match your hand size and personal braking preference.
Enduro-Rated Strength: The master cylinder and caliper are forged from high-grade aluminum, offering maximum rigidity and durability while maintaining an impressively low weight.
Refined Servo Wave Action: Shortens the initial lever stroke so the pads contact the rotor quickly, followed by a power-multiplication factor for incredible control and "one-finger" stopping.
| Feature | Specification |
| Caliper Type | 4-Piston Hydraulic |
| Brake Fluid | Shimano Mineral Oil |
| Lever Mount | I-SPEC EV |
| Piston Material | Ceramic |
| Pad Compatibility | N03A (Resin) / N04C (Metal) with Fins |
| Hose Type | SM-BH90-SBM |
✅ Aggressive Gravity Riding: The definitive choice for Enduro racers and trail riders who demand fade-free performance on the most demanding terrain.
✅ One-Finger Precision: Offers a level of modulation and power that allows you to control your speed with minimal hand effort, reducing fatigue on long rides.
✅ Premium Engineering: If you want the absolute best-in-class materials, weight-to-power ratio, and "pro-level" aesthetics for your build.
❌ Weight-Obsessed XC Racers: If you are building a sub-10kg race bike, the lighter 2-piston XTR M9100 model is better suited for cross-country applications.
❌ Budget Builds: As Shimano's flagship brake, the XTR carries a significant price premium over the highly capable XT and SLX alternatives.
To get the most out of an XTR M9120 upgrade, don't skimp on the rotors. Pair these with RT-MT900 ICE TECH FREEZA rotors to fully unlock the cooling potential of the system. We also recommend a professional bleed using Shimano's specific funnel kit; because these are 4-piston calipers, any tiny air bubbles can lead to a slightly "mushy" feel. When set up perfectly, the "bite" should be crisp and instant—if it isn't, there's likely a bubble hiding behind one of those ceramic pistons!
