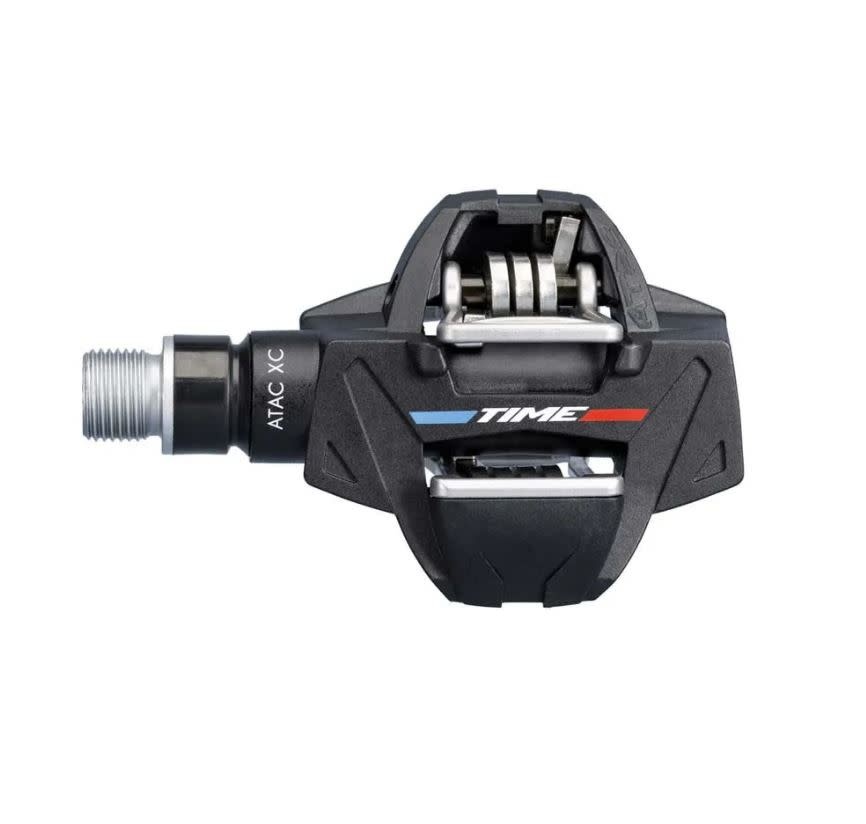

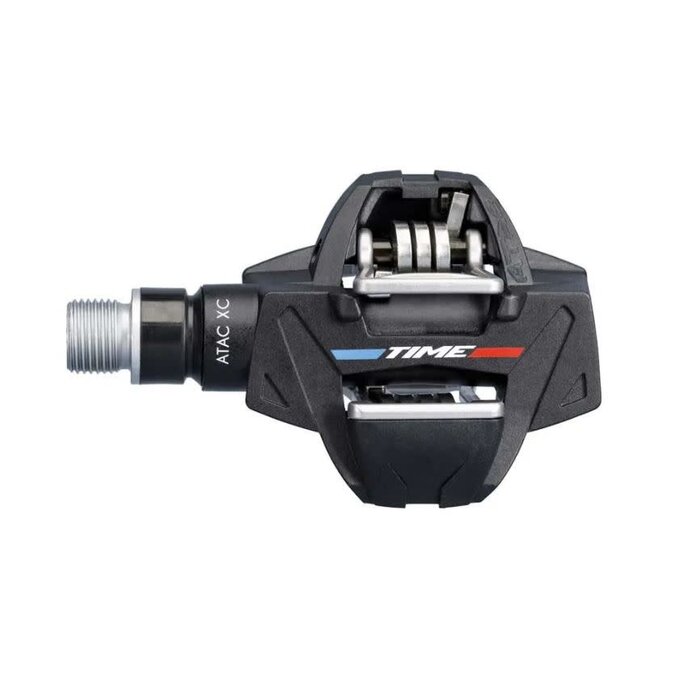

The XC 6 features a hollow steel axle for lightness and durability, a composite body, and tension adjustment to customize the feel of the pedal underfoot. The exclusive ATAC clamping system offers very easy engagement, and the open design automatically clears debris each time you step in.
Getting into your pedals is simple and speedy, thanks to ATAC Technology’s wide-angle step-in design. ATAC allows for a wide angle of step-in for positive engagement that allows for natural foot movement. What’s more, a clean pedal is an efficient pedal. If only cleaning the rest of your bike was this easy: Each time you step in, ATAC clears away mud and debris as you step in.
Â
| COLOUR (PEDAL) | Black |
|---|---|
| POWER MEASUREMENT | Not Compatible |
| BODY COMPONENT | Glass-filled |
| CLEATS | ATAC cleats |
| PEDAL STACK HEIGHT | 19mm |
| ANGULAR FREEDOM | n/a |
| CONTACT SURFACE AREA | n/a |
| DISTANCE PEDAL SPINDLE / CRANK ARM | 54mm |
| LATERAL FREEDOM | 5mm |
| RELEASE ANGLE | 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats |
| TENSION | 3 different positions of the spring |
| THREADING | 9/16 - 20 inch |
| ACCESSORIES | ATAC cleats |
| INTENDED USE | XC, CX, Gravel |
| BEARINGS | Steel |
| WEIGHT (G) | 145 |
| WEIGHT BASED ON | per pedal |
