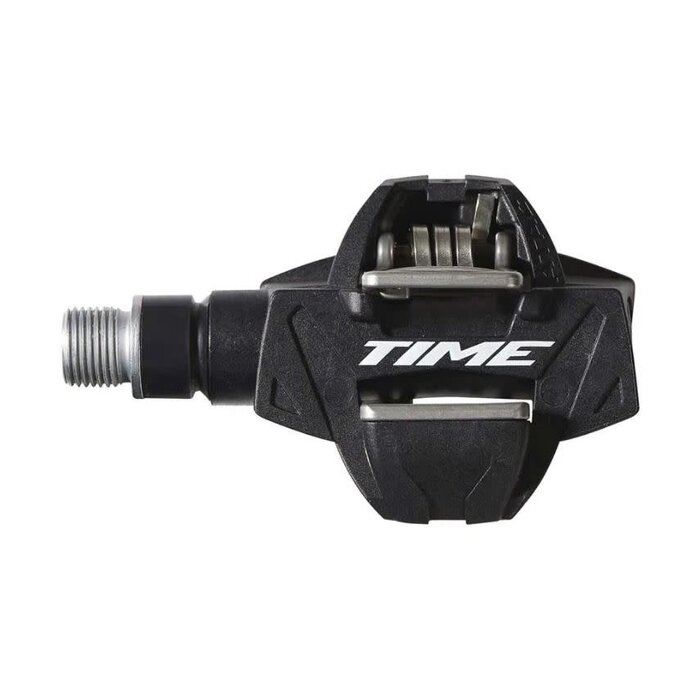

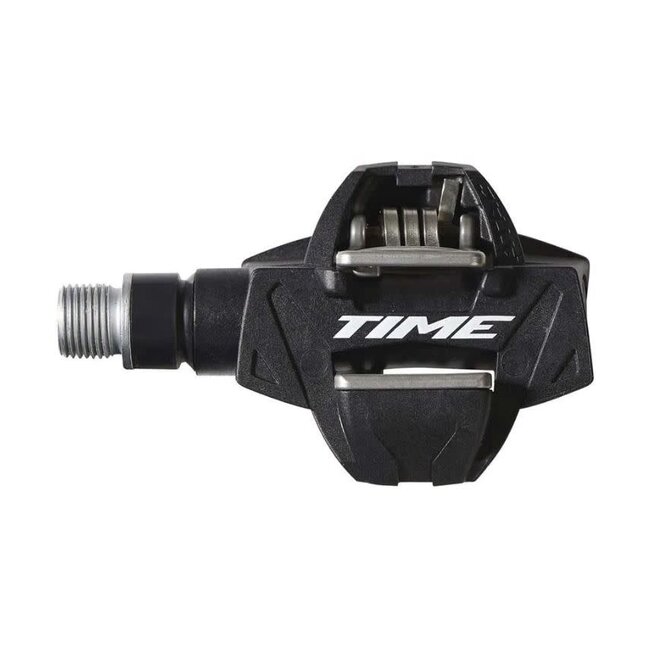

The XC 4 pedal features a hollow steel axle that makes it light and durable, as well as TIME's exclusive ATAC system that offers very easy engagement. The open design automatically clears debris each time you step in for reliable performance every time.
Getting into your pedals is simple and speedy, thanks to ATAC Technology’s wide-angle step-in design. ATAC allows for a wide angle of step-in for positive engagement that allows for natural foot movement. What’s more, a clean pedal is an efficient pedal. If only cleaning the rest of your bike was this easy: Each time you step in, ATAC clears away mud and debris as you step in.
| COLOUR (PEDAL) | Black |
|---|---|
| POWER MEASUREMENT | Not Compatible |
| BODY COMPONENT | Glass-filled |
| CLEATS | ATAC Easy cleats |
| PEDAL STACK HEIGHT | 19mm |
| ANGULAR FREEDOM | n/a |
| CONTACT SURFACE AREA | n/a |
| DISTANCE PEDAL SPINDLE / CRANK ARM | 54mm |
| LATERAL FREEDOM | 5mm |
| RELEASE ANGLE | 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats |
| TENSION | no |
| THREADING | 9/16 - 20 inch |
| ACCESSORIES | ATAC Easy cleats |
| INTENDED USE | XC, CX, Gravel |
| BEARINGS | Steel |
| WEIGHT (G) | 147 |
| WEIGHT BASED ON | per pedal |
