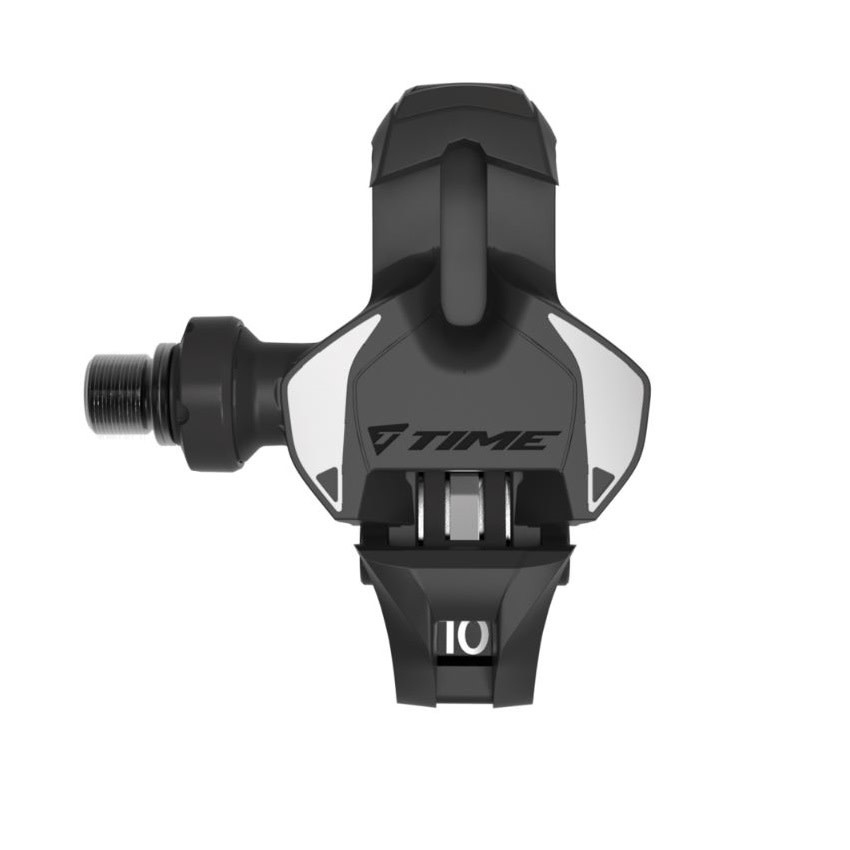

The XPRO 10 is the best blend of performance and value. Power transfer and stability are maximized with a large, 725mm-squared surface area. The bottom fairing was created to improve aerodynamics and protect the carbon blade. TIME's patented pre-opened ICLIC system allows for fast and easy cleat engagement. Tension adjustment on the carbon blade has three positions to precisely manage the pressure of the clamping mechanism. The stack height is low, which keeps the pedal light weight with good pedaling clearance. The XPRO 10 uses a hollow, stainless steel axle.
- Fast and easy cleat engagement.
- Three tensions settings of carbon blade.
- Light weight with good clearance.
- Cleats included with all pedal purchases.
ICLIC
ICLIC Technology (TIME Sport patent) makes clipping off the starting line or off the stop light easy. Our patented pre-opened pedal engagement system allows easy, secure engagement every time. Clipping out pre-opens the system for the next step in. All XPRO and XPRESSO road pedals feature ICLIC technology.
.
SPECIFICATIONS
| COLOR (PEDAL) | Grey |
|---|---|
| POWER MEASUREMENT | Not Compatible |
| BODY COMPONENT | Carbon-filled |
| CLEATS | ICLIC |
| PEDAL STACK HEIGHT | 13.5mm |
| ANGULAR FREEDOM | +5° to -5° with free cleats, 0° with fixed cleats |
| CONTACT SURFACE AREA | 725 mm2 |
| DISTANCE PEDAL SPINDLE / CRANK ARM | 53mm |
| LATERAL FREEDOM | 2.5 mm with free cleats, 0 with the fixed cleats |
| RELEASE ANGLE | 16° with free cleats |
| TENSION | 3 different settings of carbon blade |
| THREADING | 9/16 - 20 inch |
| ACCESSORIES | ICLIC free foot cleats |
| INTENDED USE | Road |
| BEARINGS | Steel |
| WEIGHT (G) | 113 |
| WEIGHT BASED ON | per pedal |
