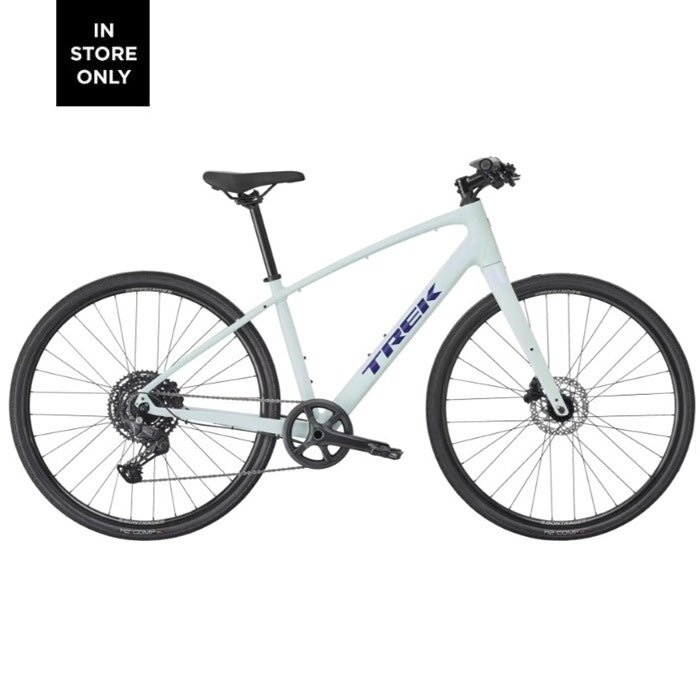

The FX 3 is a versatile hybrid bike that's primed for performance, comfort and utility. It has features like a lightweight aluminium frame, a carbon fork, a 1x drivetrain and powerful disc brakes that stop in any weather. It's a commuting pro if you want it to be, or the perfect fitness companion on road and rail trails.
A better way to produce aluminium
Starting in 2024, we began removing high-emission aluminium from our manufacturing and replacing it with low-emission aluminium made with renewable energy. By October 2025, nearly every alloy bike we make – this one included – had made the switch, driving a major drop in our footprint.
Shimano CUES
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette and chainrings.
Shimano LINKGLIDE
LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.
Â
- Frame
-
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5Â mm QR
- Fork
-
FX carbon, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR
Â
WHEELS
Â
Hub front
-
Formula DC-20, alloy, 6-bolt, 100x5 mm
- Skewer front
-
- Hub rear
-
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
- Skewer rear
-
152x5 mm QR
- Rim
-
Bontrager Tubeless Ready Disc, 32-hole, Presta valve
- Tyre
-
Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm
- DRIVETRAIN
- Shifter
-
Shimano CUES U6000 w/optical gear display, 10-speed
- Rear derailleur
-
- *Crank
-
Size:Â XS, S, M
Prowheel alloy, 40T narrow-wide ring, 170 mm length
Size:Â L, XL
Prowheel alloy, 40T narrow-wide ring, 175 mm length
- Cassette
-
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
- Chain
-
- Pedal
-
Bontrager City pedals
- COMPONENTS
- Saddle
-
- *Seatpost
-
Size:Â XS, S, M
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Size:Â L, XL
Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length
- *Handlebar
-
Size:Â XS, S, M
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size:Â L, XL
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
- Grips
-
Trek Line Ergonomic Pro, lock-on
- *Stem
-
Size:Â XS, S
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Size:Â M, L, XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
- Brake
-
Shimano hydraulic disc, MT201 lever, UR300 calliper
- Brake rotor
-
Shimano RT26, 6-bolt, 160 mm
- Weight
- M - 11.65 kg / 25.69 lbs
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
