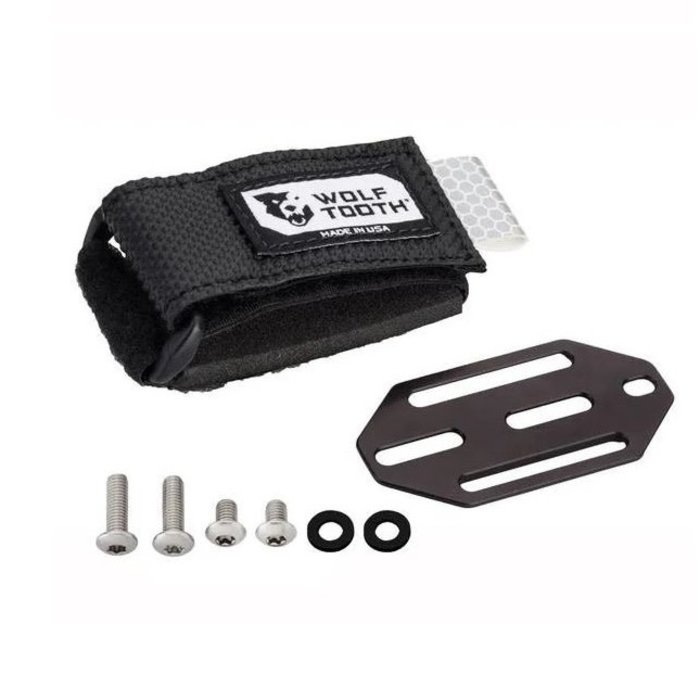

The Mini Strap is the small B-RAD accessory mount for things like a mini-pump, CO2, tube or compact tool. A 40 mm-wide strap holds items from 30 to 60 mm in diameter, and the aluminium plate and strap together weigh 24 g.
It is designed to work with a B-RAD base on standard 64 mm bottle bosses, and the kit includes the plate, strap and hardware. Tighten the T25 bolts to 3 to 4 Nm, then wrap the strap firmly around the item so it cannot slide under braking or on rough tracks.
✅ You want a pump, CO2 or small tool on the frame, not in a pocket: The mini strap is sized for those 30–60 mm items.
✅ You already use a B-RAD base: The plate bolts on next to a bottle or on its own section of the base.
❌ You need to carry a large bottle, jacket roll or oversized item: That is a job for the medium or XL strap, which take larger diameters.
❌ You have no bottle bosses and no B-RAD base planned: The plate is meant to work with that system.
If you are pairing it with a half-bottle adapter, mount the plate beside the offset cage and snug the strap so the pump or tool cannot creep forward under braking.
