WOLFTOOTH B-RAD 2 MOUNTING BASE
WOLFTOOTH COMPONENTS
WOLFTOOTH B-RAD 2 MOUNTING BASE

WOLFTOOTH B-RAD 2 MOUNTING BASE

$40.95 Incl. tax
Out of stock

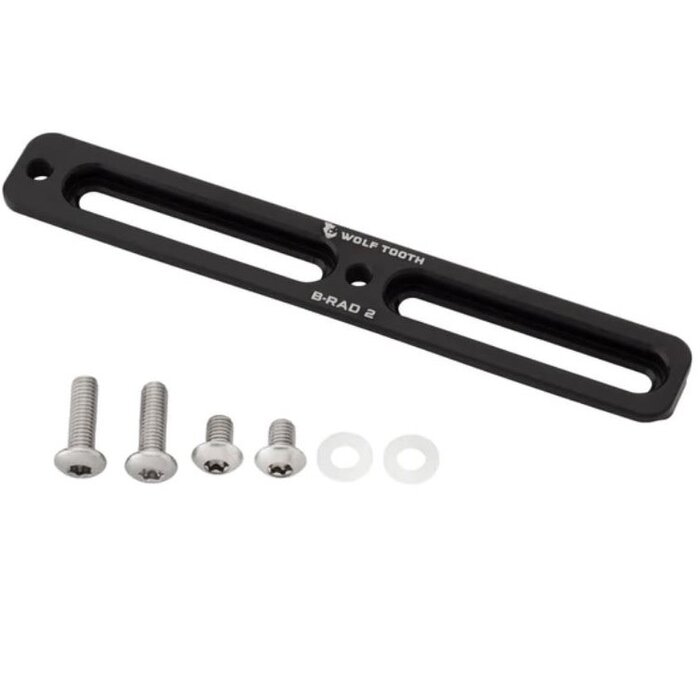

The Wolf Tooth B-RAD 2 is a 27 g, 2-slot 6061-T6 aluminium mounting base that can shift a bottle or accessory up to 54 mm on standard 64 mm bottle bosses. Read more.

  • Local WA support - over 60 years of experience
  • Live stock levels - see whats in our store 24/7
  • Easy 100 day returns for full refund
  • Home of premium brands - Pinarello, Scott, Trek, Alvas

Product description

B-RAD 2 is the short base in Wolf Tooth's bottle relocation system, useful on smaller frames and dual-suspension bikes where you only need a modest shift. The 2-slot 6061-T6 aluminium bracket can move a bottle cage or accessory up to 54 mm, to clear a shock, make room for a frame bag, or put the bottle where you can reach it.

It mounts to any frame with at least two standard 64 mm bottle bosses, using T25 hardware tightened to 3 to 4 Nm. The base weighs 27 g, is 6 mm thick, and is rated to 1,700 g. An EVA foam pad protects the frame.

Key Features

  • Up to 54 mm of adjustment: A compact 2-slot base for a short, precise shift.
  • Only 27 g: A 6 mm-thick 6061-T6 aluminium bracket with an EVA foam pad.
  • Fits standard 64 mm bosses: Uses the bottle mounts already on the frame.
  • Foundation for B-RAD accessories: Cages, adapters and straps bolt on to the base.

Specifications

  • Brand: Wolf Tooth
  • Model: B-RAD 2 Mounting Base
  • Material: 6061-T6 aluminium with EVA foam pad
  • Weight: 27 g
  • Thickness: 6 mm
  • Adjustment: Up to 54 mm
  • Max load: 1,700 g
  • Mount: Standard 64 mm bottle-cage bosses, T25 hardware
  • Torque: 3–4 Nm
  • Made in: USA

Why This IS For You

✅ You only need a short shift of the bottle or a small accessory: The 2-slot base moves things up to 54 mm.

✅ Your frame is small or a dual-suspension design with limited tube length: The short base is the one made for those bikes.

Why This May NOT Be For You

❌ You want to slide a bottle a long way, or mount two bottles in line: The longer B-RAD 3 or 4 bases have more adjustment and more holes.

❌ Your frame has no standard 64 mm bottle bosses: The base needs at least two of those mounts.

BFC PRO TIP

Start with a small shift, torque the T25 bolts to 3–4 Nm, and check that the bottle still clears the shock, bag or tyres through the full travel.

Specifications

SKU
WTBCB-RAD-2
