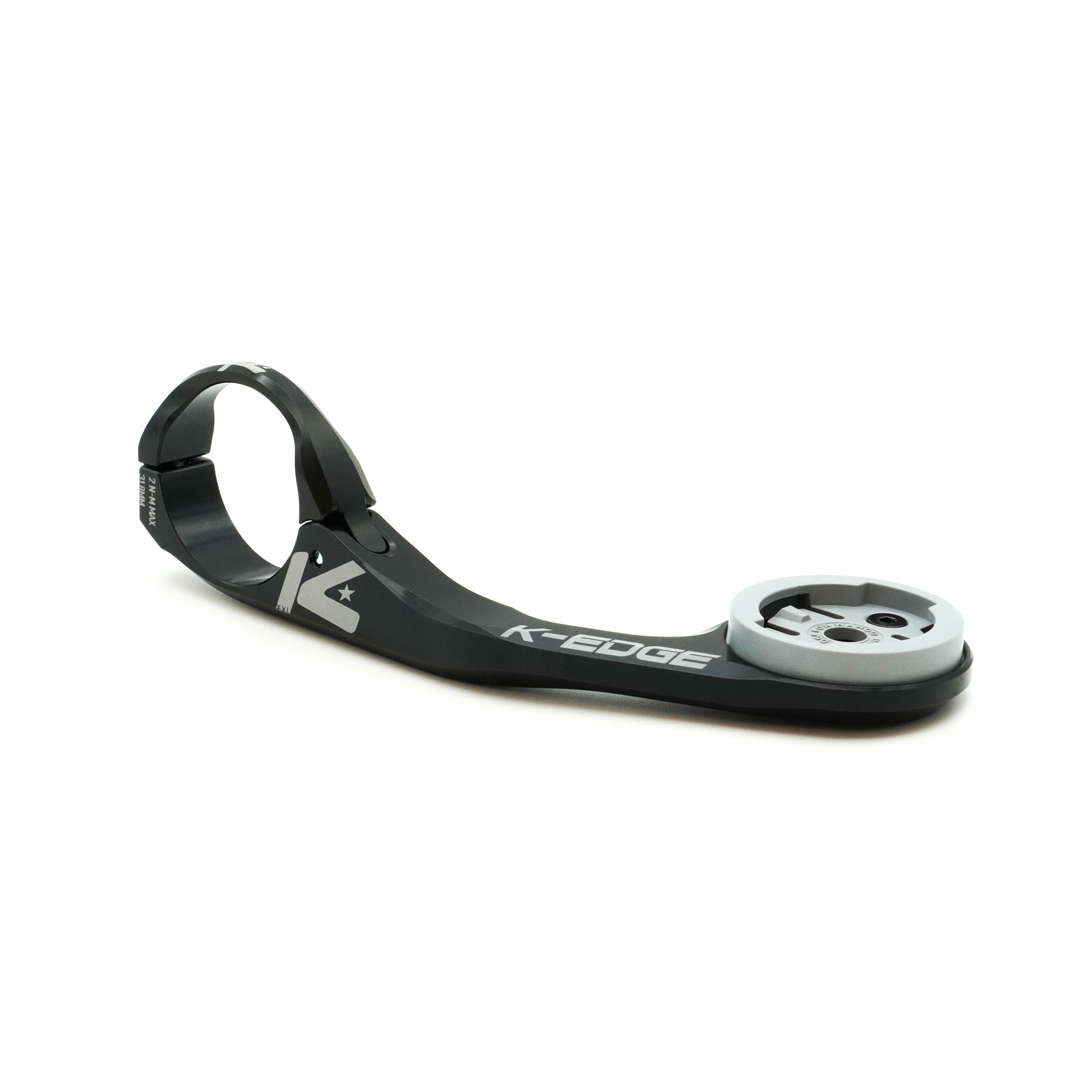

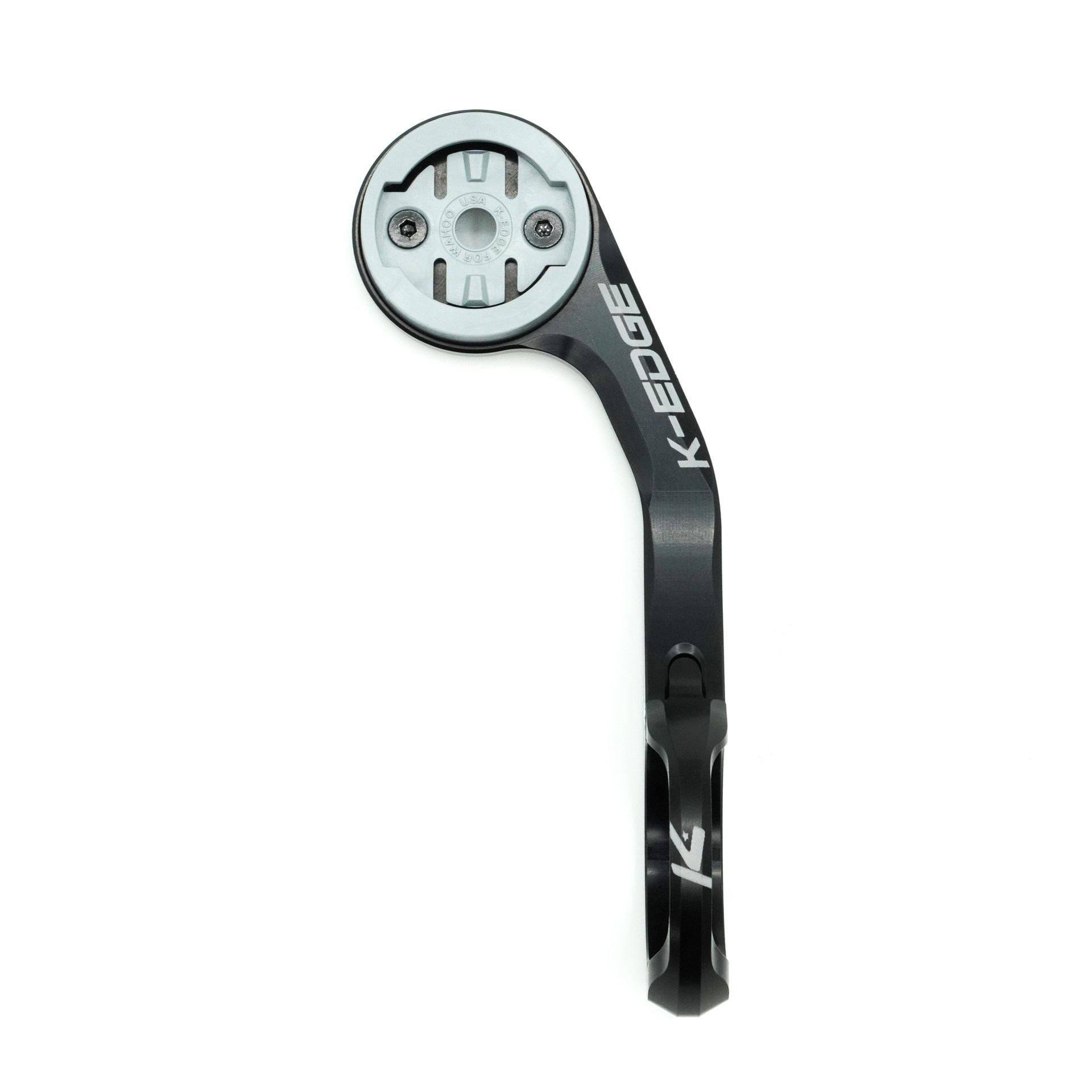

The K-EDGE Max XXL is the strongest out-front mount ever produced by the Idaho-based CNC specialists. While the "Combo" version adds an accessory interface underneath, this standard Max XXL is dedicated solely to holding your cycling computer with absolute rigidity. It was specifically engineered to accommodate the latest generation of large-format head units, such as the Wahoo ELEMNT ACE and ELEMNT ROAM, ensuring they sit perfectly centered and forward of the handlebars for optimal visibility.
By extending the arm length and strengthening the aluminum structure, K-EDGE has created a mount that effectively eliminates the "bounce" often seen when heavy computers are mounted on plastic or thinner alloy brackets. Machined from a single block of 6061-T6 aluminum, it offers a rock-solid platform that improves button-pressing tactile feedback and ensures your screen stays perfectly steady, even when hammering across corrugated gravel or technical trails.
CNC Machined 6061-T6 Aluminum: Provides a level of strength and security that plastic mounts cannot match, finished in a premium matte black anodize.
XXL Arm Length: Specifically lengthened to provide total clearance for the Wahoo ELEMNT ACE and larger ROAM units, preventing the computer from interfering with the handlebar or stem faceplate.
One-Piece Design: The arm and clamp are machined as a single unit (rather than being bolted together), which significantly increases stiffness and reduces the number of potential failure points.
Replaceable Wahoo Insert: Features a co-polymer plastic insert that is "Wahoo Approved." It is designed to shear off in a high-force crash to protect the mounting tabs on your expensive computer.
Pro-Level Aesthetics: The slim, single-bolt clamp occupies minimal space on your handlebars (31.8mm), allowing for a clean, minimalist cockpit setup.
Stable Viewing Platform: The rigid aluminum construction eliminates vibrations, making it much easier to read small data fields while riding at speed or on rough terrain.
| Feature | Specification |
| Model | Max XXL (Non-Combo) |
| Material | 6061-T6 Aluminum (CNC Machined) |
| Computer Compatibility | Wahoo ELEMNT ACE, ROAM, BOLT, MINI |
| Clamp Size | 31.8mm Round Handlebars |
| Weight | ~50g |
| Finish | Anodized Black with Laser-Etched Logos |
The ELEMNT ACE/ROAM User: If you find standard mounts leave your large computer sitting too close to the bars, the XXL length provides the perfect "pro" spacing and easy access to the bottom buttons.
Gravel & MTB Riders: If you ride in high-vibration environments, the extreme rigidity of the Max XXL ensures your computer stays exactly where you put it without sagging.
The "Weight-Conscious" Strongman: Ideal for those who want the ultimate strength of the Max series but don't need the extra weight of the camera/light adapter found on the Combo version.
Integrated Handlebar Users: This mount is for round 31.8mm bars only. If you have an aero/integrated cockpit, you will need a specialized "IHS" mount that bolts into the underside of the stem.
Light/Camera Users: This model does not include the GoPro-style mounting interface underneath. If you plan to mount a light or camera, the K-EDGE Max XXL Combo is the better choice.
The Max XXL is a "fit and forget" component. To keep it looking brand new, avoid using metal tools or keys near the anodized finish when working on your bike. When installing, use a torque wrench to tighten the single clamp bolt to the recommended 2Nm—this is plenty of force to keep the mount from slipping without risking damage to carbon handlebars. If you ever switch to a Garmin or Hammerhead unit in the future, you don't need to buy a new mount; you can simply swap the plastic blue insert for a K-EDGE Replacement Insert Kit!
