SHIMANO SM-MA-F203-PPM BRAKE ADAPTER 203MM POST
The Essential Link for Maximum Stopping Power.

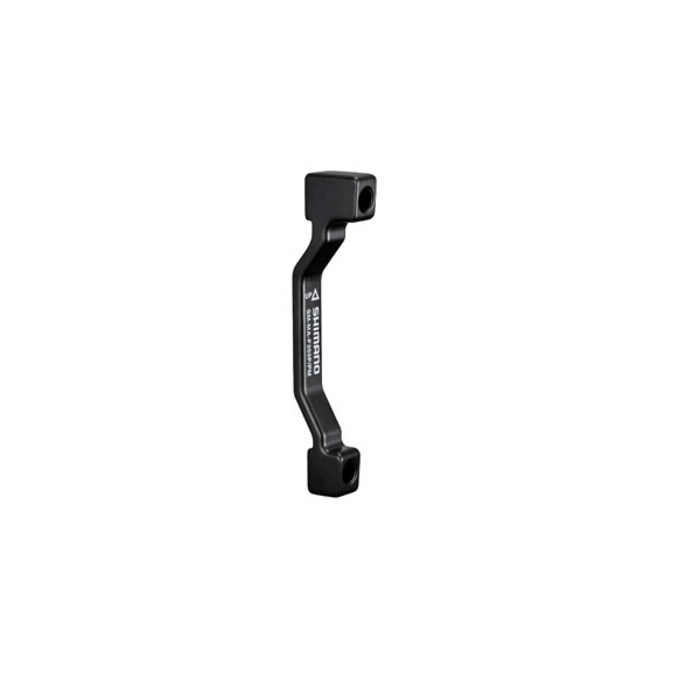

The Shimano SM-MA-F203-P/P M is a precision-engineered adapter designed to bridge the gap between your frame or fork and your hydraulic disc brake caliper.Specifically built for riders upgrading to a massive 203mm rotor, this adapter provides the necessary offset to ensure your brake pads align perfectly with the increased diameter of the disc.
Constructed from lightweight, high-strength aluminum, this adapter is designed to handle the extreme heat and mechanical stress generated during heavy braking. Whether you are building a dedicated downhill rig or upgrading an e-MTB for better heat dissipation, the SM-MA-F203-P/P M ensures a rock-solid, flex-free connection for consistent and predictable stopping power.
Key Features
Post-to-Post Compatibility: Designed specifically for 160mm Post Mount forks or frames, allowing for a seamless jump to a 203mm rotor.
Precision Alignment: Engineered to Shimano’s exacting tolerances to ensure the caliper sits at the perfect angle, preventing uneven pad wear or brake rub.
Lightweight Alloy Construction: Forged from high-grade aluminum to provide maximum rigidity without adding unnecessary weight to your front end.
Complete Hardware Kit: Includes two long-reach mounting bolts and the essential wire-lock safety system to prevent bolts from loosening due to trail vibrations.
Low Profile Design: A sleek, minimalist aesthetic that tucks the caliper neatly into the fork or frame for better protection against rock strikes.
Universal Caliper Fit: While optimized for Shimano systems, the standard Post Mount spacing makes it compatible with most SRAM, Magura, and TRP calipers.
Technical Specifications
| Feature | Specification |
| Model Number | SM-MA-F203-P/P M |
| Mount Type | Post Mount to Post Mount (P/P) |
| Rotor Size | 203 mm |
| Frame/Fork Mount | 160 mm (Standard Post) |
| Material | Anodized Aluminum |
| Included | 2x Bolts, 1x Safety Wire, 2x Washers |
✅ Why This IS For You
Gravity & Downhill Riders: If you are tackling long, steep descents where a 203mm rotor is required to manage heat and prevent brake fade.
E-Bike Owners: Perfect for upgrading the stopping power of heavier e-MTBs, providing the leverage needed to slow down high-speed momentum.
Performance Upgraders: Ideal if you currently have a 160mm or 180mm setup and want the mechanical advantage of a larger disc for one-finger braking.
❌ Why This May NOT be for you
XC Race Bikes: Most lightweight cross-country forks are only rated for a maximum of 180mm; check your manufacturer’s torque and size specs before jumping to a 203mm.
IS Mount Frames: If your fork or frame has "International Standard" (sideways) eyelets, you will need an IS-to-Post adapter instead.
BFC Pro Tip
The SM-MA-F203-P/P M is a directional component—look for the small arrow on the side which should always point toward the top of the fork or the front of the bike. When installing, don't skip the safety wire! It might look old-school, but it’s the best way to ensure your caliper bolts don’t back out during a high-speed chatter section. Always use a torque wrench (usually 6-8Nm for these bolts) to ensure you have a secure fit without stripping the threads on your expensive fork lowers.
