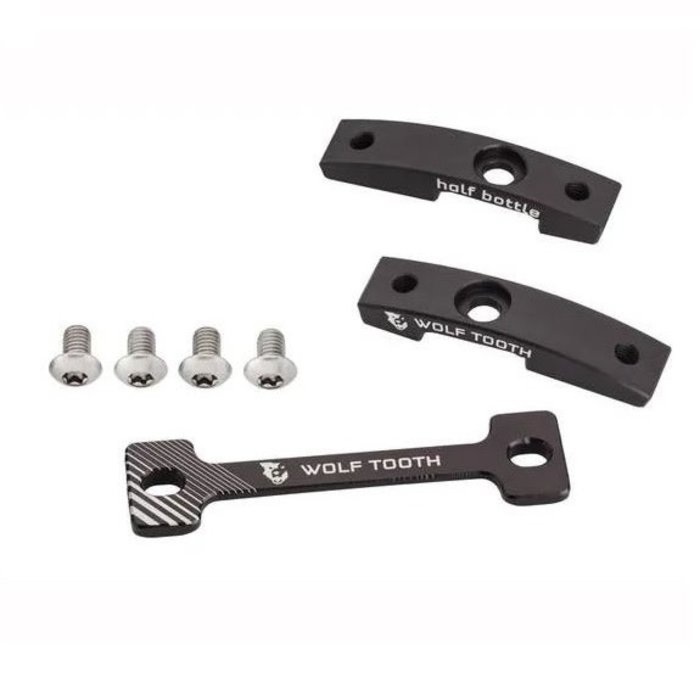

The Half Bottle Adapter shifts a cage sideways to make the bottle easier to reach and to leave space for a pump, tube or strap mount beside it. In this kit it comes with the Dogbone, the compact B-RAD base that sits on standard 64 mm bottle bosses when a longer slotted base will not sit flush on a curved or tightly packed downtube.
Together they are aimed at modern trail frames with awkward bottle access. The adapter is 6061-T6 aluminium, weighs 18 g and is rated to 1,700 g, with T25 hardware at 3 to 4 Nm. The Dogbone is a 10 g 6061-T6 base. You still need those two standard bottle bosses on the frame.
✅ Your downtube is curved or short, and the bottle is hard to reach: The Dogbone and half-offset cage are made for that layout.
✅ You want a bottle and a small accessory on the same bosses: The half adapter leaves room beside the cage.
❌ You already have a B-RAD 2, 3 or 4 on a straight tube: You may only need the half-bottle adapter, not this Dogbone kit.
❌ You need to slide the bottle a long way along the frame: The Dogbone is a short base and does not offer that slotted adjustment.
Fit the Dogbone to the bosses first so it sits flush on the curve, then add the half-bottle adapter and check crank and knee clearance before you tighten everything to 3–4 Nm.
