WOLF TOOTH GOATLINK 11 SPEED

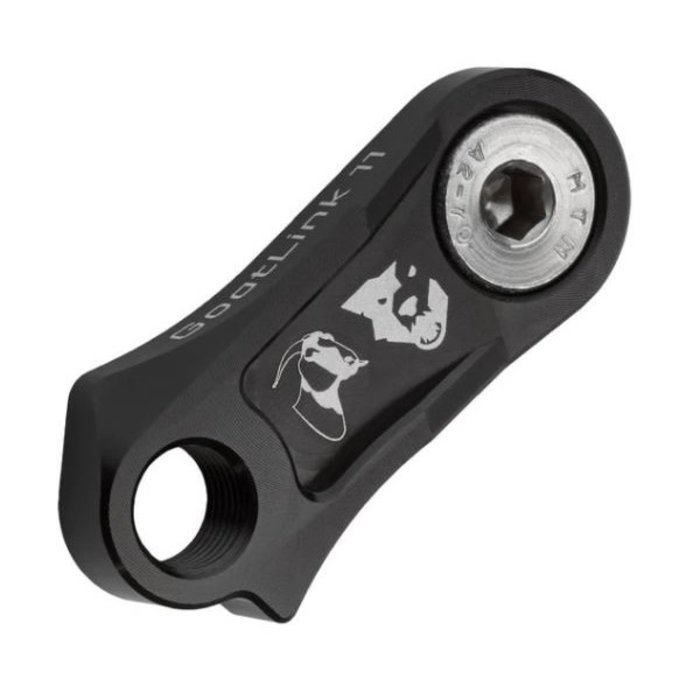

The GoatLink 11 hanger extension offsets the position of your 11-speed Shimano mountain bike rear derailleur allowing you to be able to run a wider range cassette while improving performance.

• Same ergonomics and reliability of Shimano shifters and derailleurs

• Gear range, simplicity and quietness of SRAM 1x11 drivetrain

• High-performance and lightweight

This project began with the desire to run 11-speed Shimano derailleurs and shifters with SRAM 10-42t XD cassettes. Granted the combination can work without modification - but performance wasn't quite what we'd expect from Shimano and SRAM's finest.

When used with a 10-42t cassette, the GoatLink 11 re-positions SLX M7000, XT M8000 and XTR M9000 rear derailleurs such that free chain length between the cassette and the top derailleur pulley is within 1% of what Shimano intended while cassette tooth engagement in the smallest cog is improved by 27%.

Knowing that certain situations call for a range beyond that provided 10-42t or 11-42t cassettes, we tweaked the GoatLink 11 to also significantly improve Shimano 11spd rear derailleur performance with extended-range like the Wolf Tooth GCX 44t modified 10-44t XX1 or X01 cassette.

Compatibility

Cassette  •  Compatibility
11-40  •  Not Required
11-42  •  Not Required
11-45  •  GS/SGS Derailleur
11-46  •  GS/SGS Derailleur
10-42  •  GS/SGS Derailleur
10-44  •  GS/SGS Derailleur (Wolf Tooth GCX44)
10-45  •  Not Optimized
  9-44  •  Not Optimized

Other notes:

• The GoatLink 11 is compatible with SLX M7000, XT M8000 and XTR M9000 series 11-speed Shimano rear derailleurs.
• Not compatible with Shimano RD-RX812 or RD-RX817 due to the 31T capacity limitation.
• The GoatLink 11 mounts only to standard derailleur hangers.
• Double chainrings (2x) is supported and requires a long cage (SGS) rear derailleur with no more than a 12t difference in front chainrings (with an 11-46t cassette).
• Triple chainrings are not supported.
• Direct Mount native frames and SRAM derailleurs are not supported.

10-42t  •  Improved by 99%
Free Chain in bottom cog (unsupported chain - shorter is better and will increase shifting precision):

10-44t  •  Improved by 32%
10-45t  •  Improved by 28%
11-45t  •  Improved by 36%
11-46t  •  Improved by 32%
  9-44t  •  Improved by 26%

Chain Wrap in bottom cog:

10-42t  •  Improved by 27%
10-44t  •  Reduced by 9%
10-45t  •  Reduced by 7%
11-45t  •  Reduced by 8%
11-46t  •  Improved by 12%
  9-44t  •  Reduced by 8%
